- Product No : NFJO-SD-H

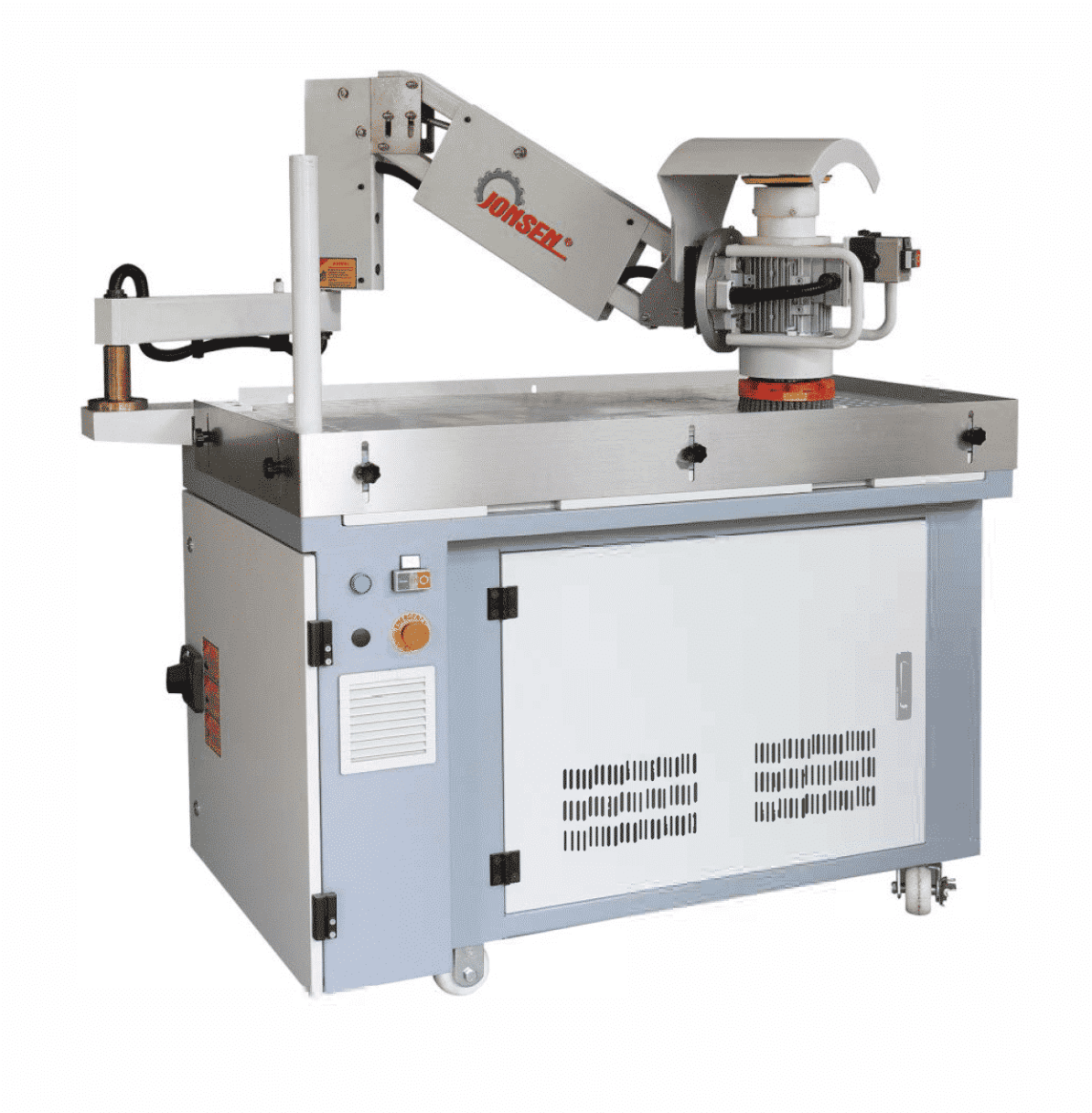

- MODEL : SD-H
- MAX. WORKPIECE DIMENSIONS : 49" X 27.5"
- MIN. WORKPIECE DIMENSIONS : 3.15" X 3.15"
- MAX. THICKNESS : 11.8"
- VACUUM AREA : 13" X 11.8"
- ROTATING SPEED OF THE HEAD : 150-1500 RPM (VARIABLE)
- SWING ARM REACH : 59" FOR 360°
- Motor : 5 HP
- Voltage : 220V / 3PH

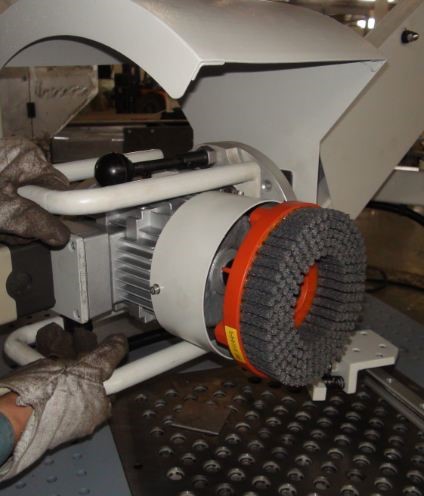

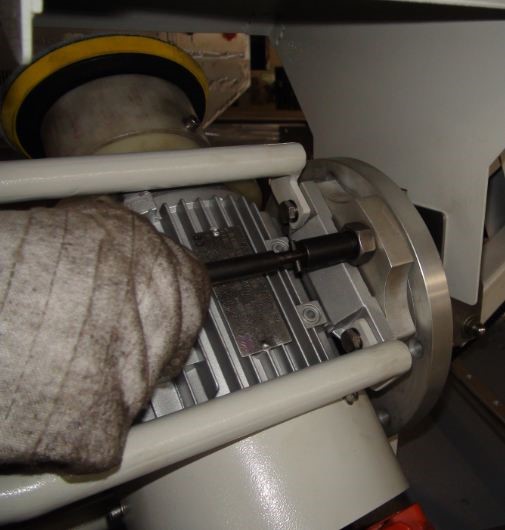

WORKSTATION: ROTATING HEAD
8 LOCATION PINS, TO KEEP THE HEAD AT THE DESIRED ANGLE 45° DEGREES APART, FOR A TOTAL OF 360°
THE TABLE HAS A VACUUM AREA TO KEEP THE PIECES IN PLACE

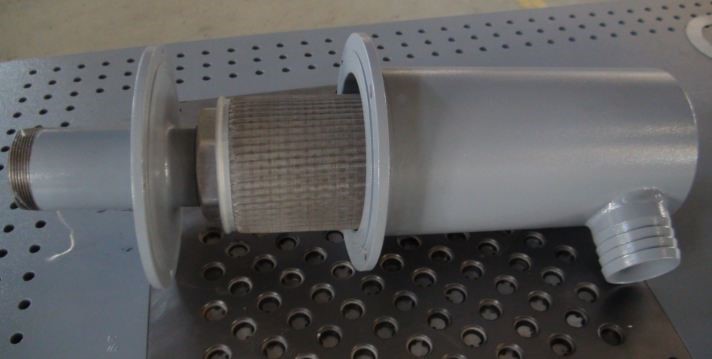

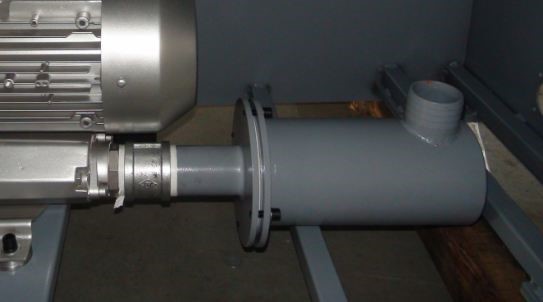

STAINLESS STEEL MATERIAL FILTRATION BARREL, EASY CLEANING

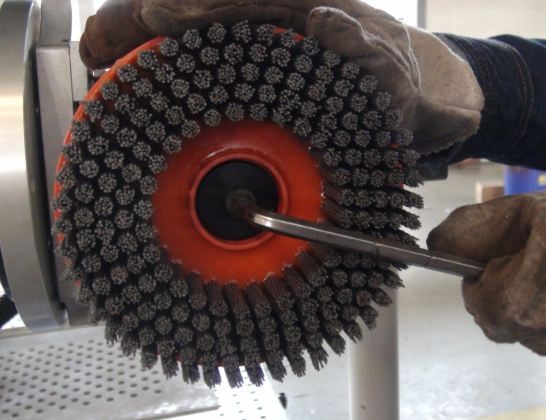

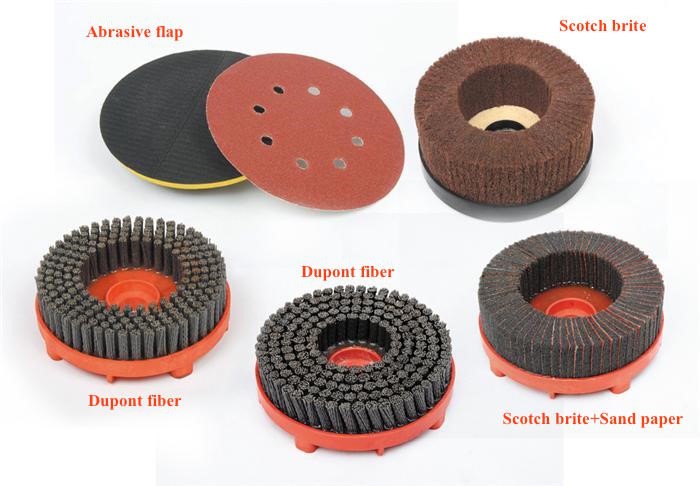

- MULTIPLE GRITS AND TYPES AVAILABLE
Dimensions
- OVERALL : 59" X 30" X 60"
Weight
- 1000 LBS
