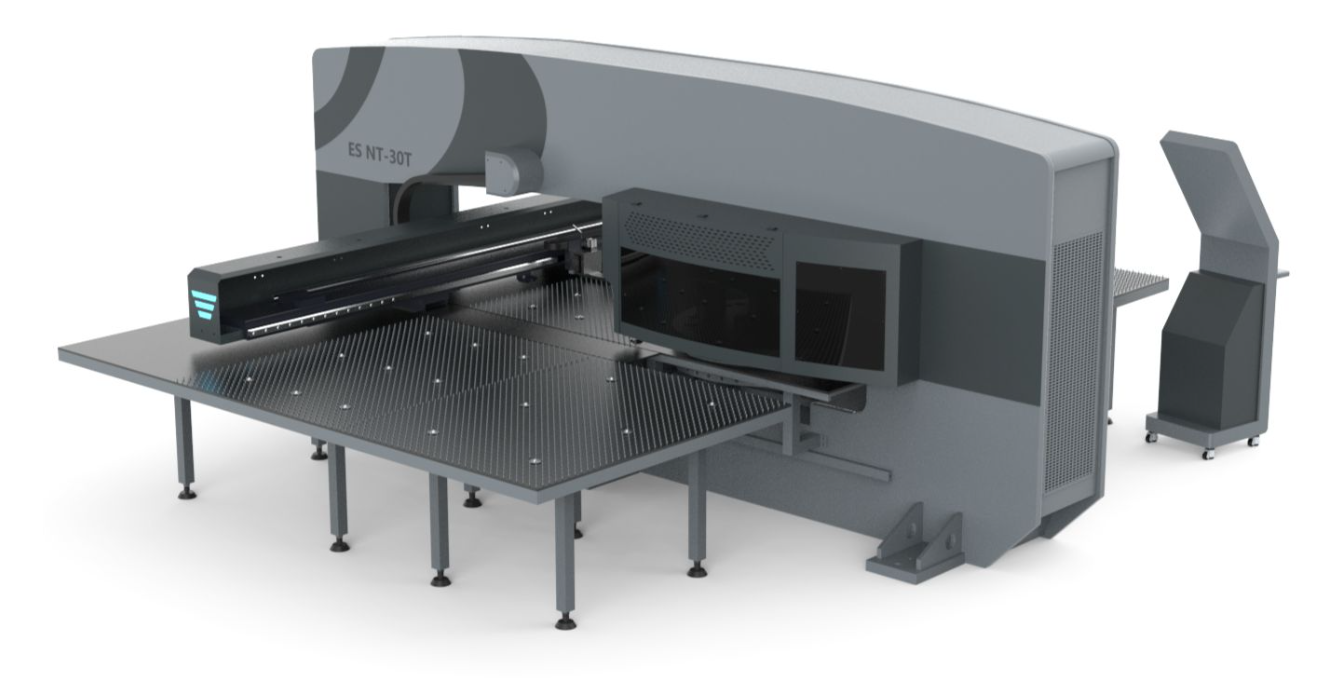

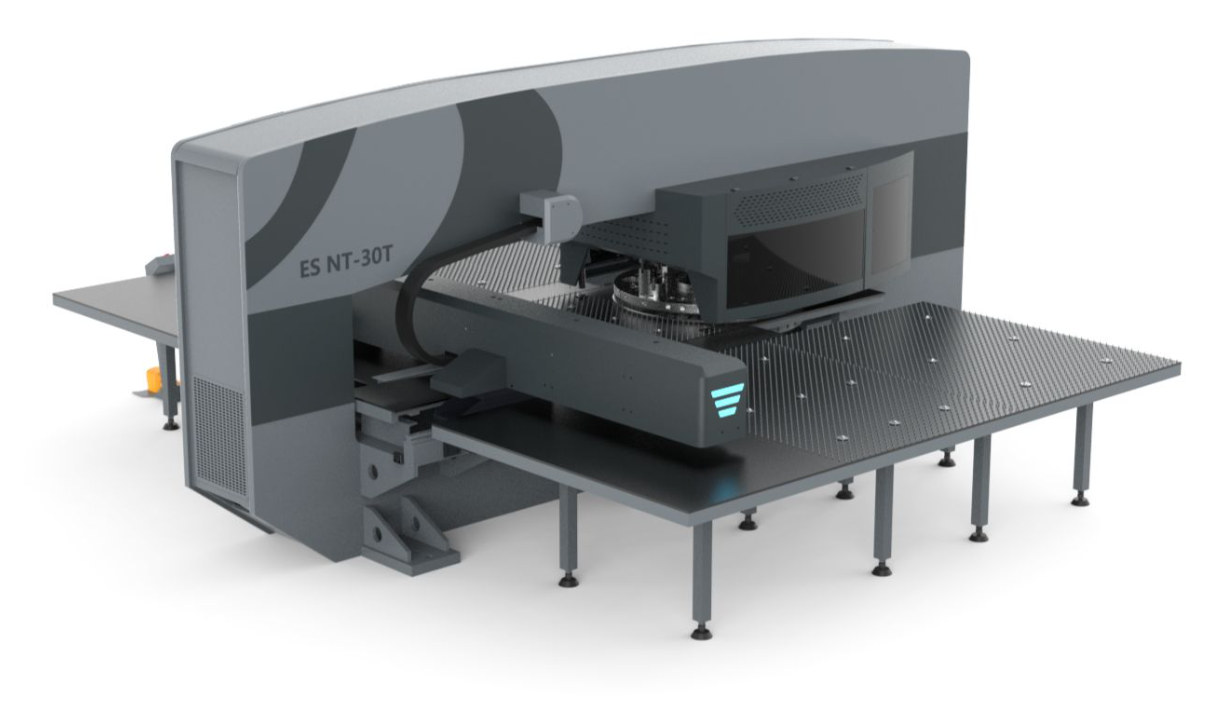

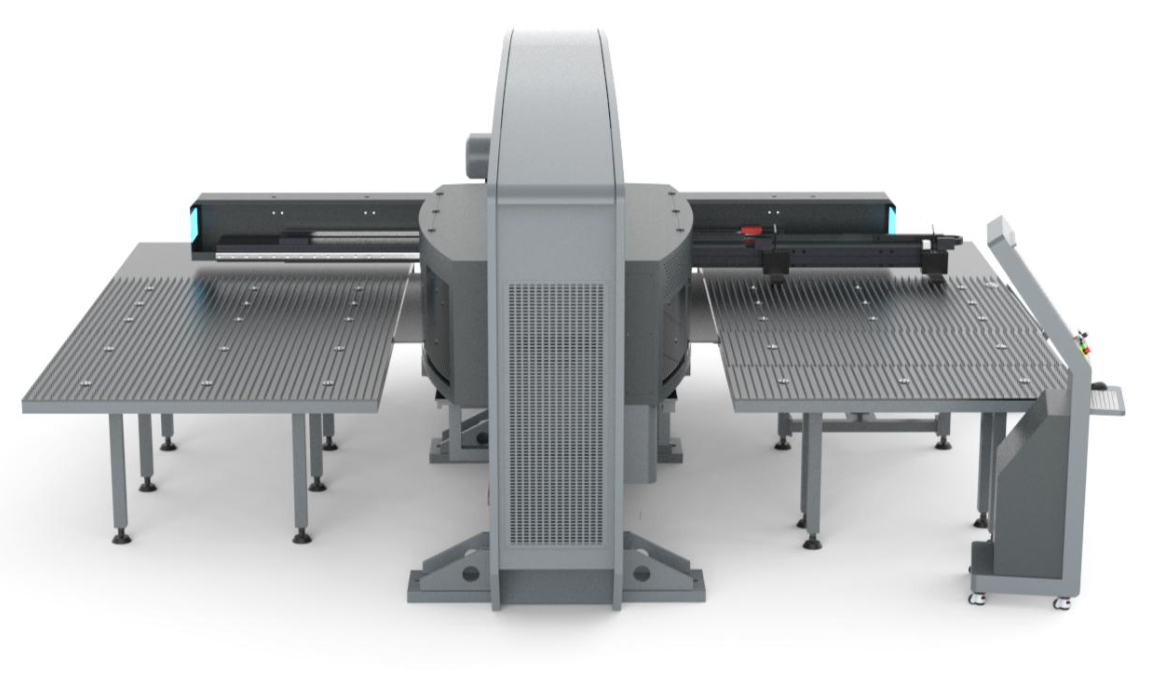

- BRAND : ACCURL
- Model : ES NT
- Type : CNC
- TONS : 22T OR 33T
- MAX. SHEET SIZE : 5' X 16' (CUSTOMIZABLE)
- MAX. POSITIONING SPEED : STANDARD: 3937"/MIN | ULTRA: 4134"/MIN
- MAX. HITS PER MINUTE : STANDARD: 350 | ULTRA: 500
- MAX. PUNCHING CAPACITY : 1/4"

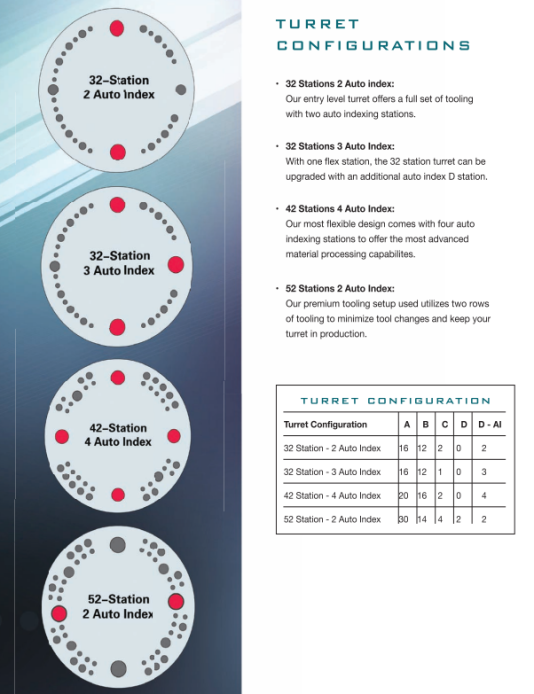

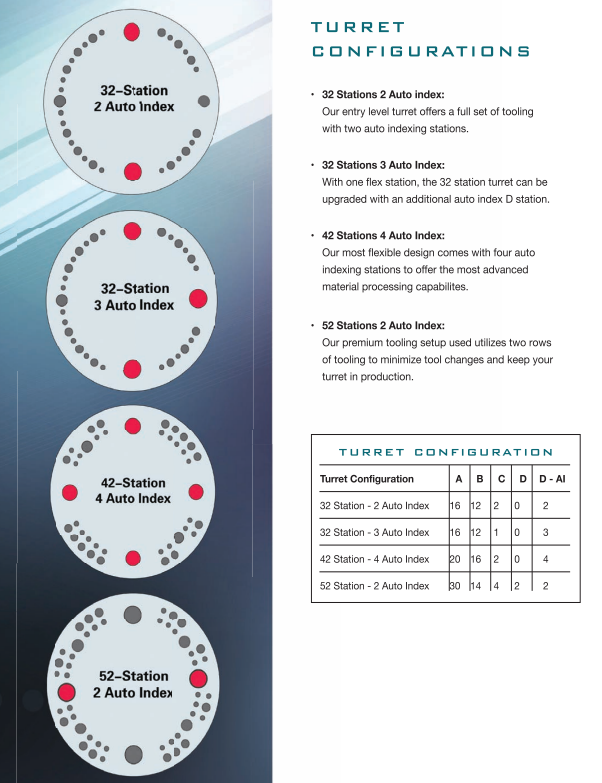

- NUMBER OF TURRET STATIONS : 32, 42 OR 52
- CNC CONTROLLER : REXROTH
ADVANCED SERVO SYSTEM
-PRECISION OF 0.004″ FOR PUNCHING
-LESS PREVENTIVE MAINTENANCE REQUIRED BECAUSE OF THE MACHINE’S STRUCTURE
-THE PUNCH SERVOMOTOR CAN BE PROGRAMMED FOR VARIOUS APPLICATIONS (HIGH SPEED, LOW NOISE, FORMING)

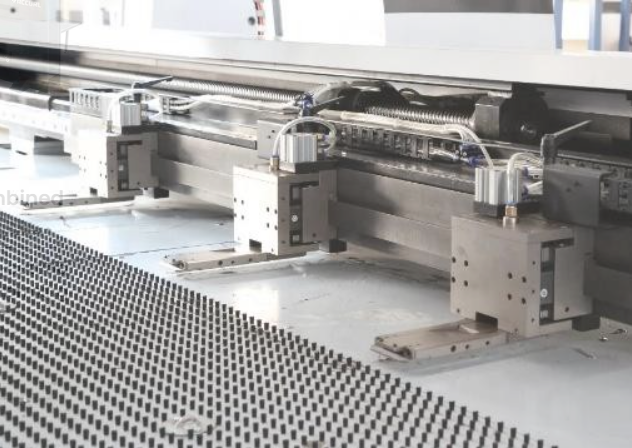

AUTOMATIC PNEUMATIC CLAMPS
-3 OR MORE CLAMPS AVAILABLE TO ELIMINATE THE MOVEMENT OF THIN SHEETS CAUSED BY PUNCHING
-THE AUTOMATIC POSITIONNING DECREASES SETUP TIME AND ERRORS

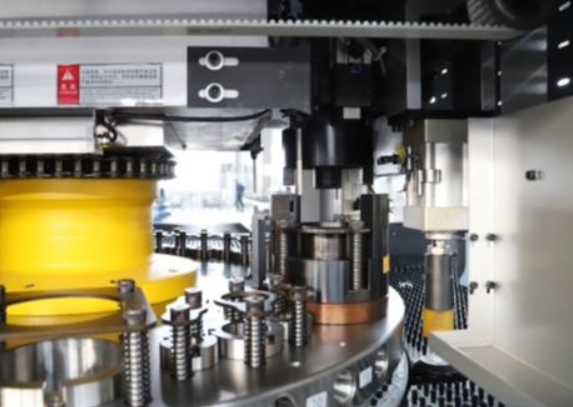

FULL AUTO INDEXED STATION
-UP TO 4 AUTO INDEXED STATION AVAILABLE ON A TURRET
-TOOLS ARE ROTATABLE IN 0.01° INCREMENTS FOR COMPLEX PIECES
-ONE COMPLETE TURRET LAP TAKES LESS THAN 3 SECONDS AND 0.6 SECONDS FOR A SINGLE TOOL

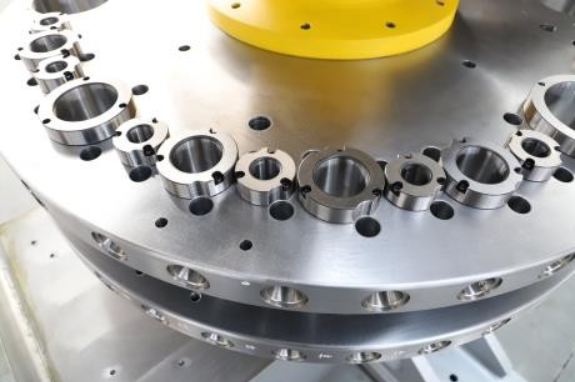

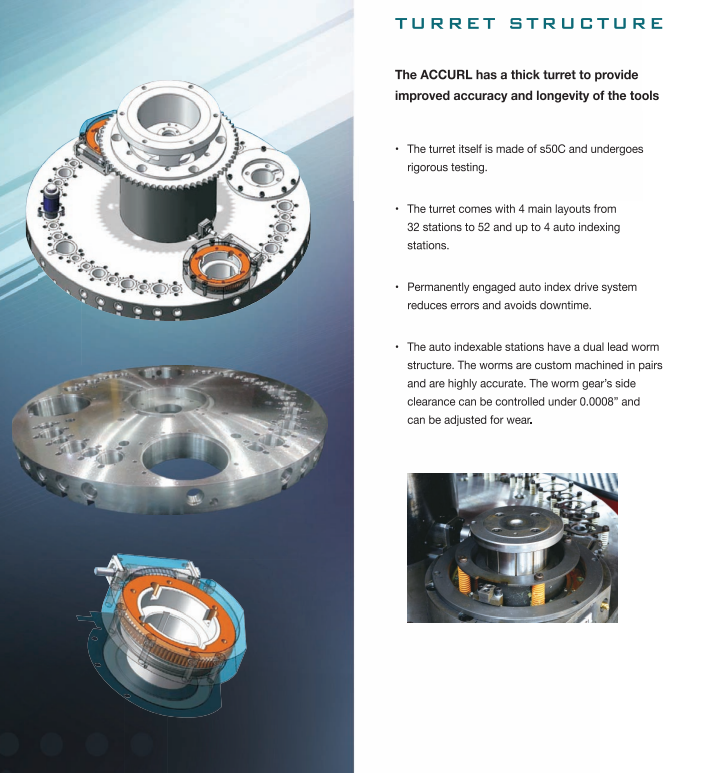

-THE TURRET IS MADE OF S50C STEEL AND UNDERGOES RIGOROUS TESTING
Dimensions
- OVERALL : 219" X 209" X 91"
Weight
- 44,000 LBS
