- No de produit : NFAS-V2.5

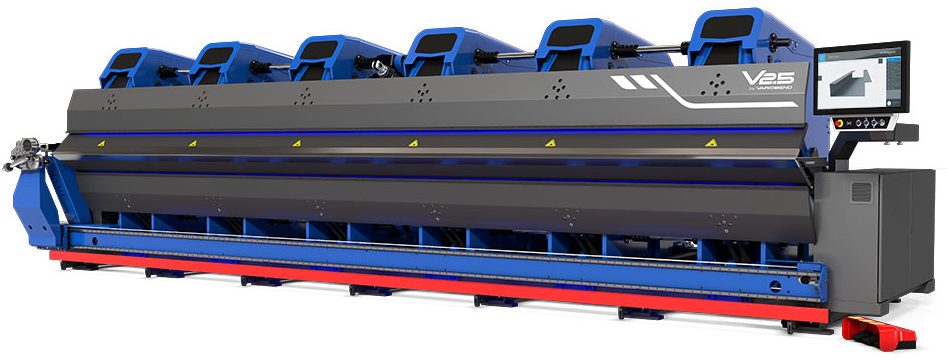

- MODEL : V 2.5
- Type : CNC, 100% ELECTRIC
- MAX FOLDING LENGTH : 169" OR 256" OR 342.5"
- MAX. THICKNESS : STEEL: 2.5MM | STAINLESS: 1.5MM | ALUMINIUM: 4MM
- MAX OPENING : 7"
- MAX. ANGLE UP/DOWN : 150°/150°
- CNC CONTROLLER : 21.5" TOUCHSCREEN ASCO V-TOUCH
- VOLTAGE : 600V | 3PH
SPECIFICATIONS:
-Clamping beam opening height OF 7″
-49.2″ back gauge table
-AUTOMATIC CUTTING DEVICE AT THE END OF THE CLAMPING BEAM
-Front light barriers
-3 switch foot pedal
-SECURITY FENCE AROUND THE MACHINE
-CUSTOMIZABLE GRIPPERS TO HOLD THE SHEET
- COMES WITH GRIPPERS TO HOLD THE SHEET, ALLOWING TO PRODUCE SEVERAL PROFILES AT THE SAME TIME BY ONE OPERATOR
Dimensions
- OVERALL : 270" X 152" X 79"
Weight
- 33,000LBS
