- Product No : NFASM-140-12/5||NFASM-140-12/5
- Model : ASM 140-12/5.0
- Capacity : PRE-BENDING THICKNESS:8G, MAX:3/16,
- Work Length : 1219mm
- Motor : 3HP
- Voltage : 575V 3PH

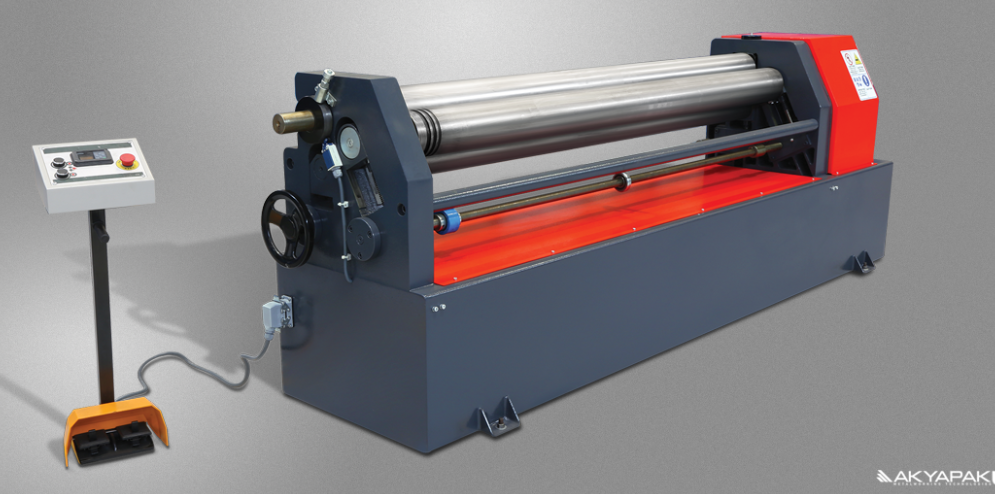

The ASM 140-12/5.0 is a robust 3-roll plate bending machine with a 4′ working width and up to 3/16″ thickness capacity. It features a cast iron frame, hardened rolls, cone bending device, and a 3 HP motor. The electrically driven top and bottom rolls ensure precise forming, while the manual adjustment of the rear roll and separate control panel with foot pedal enhance operational convenience.
Weight
- 1149 KG
