- Product No : NFJO-SGP1000

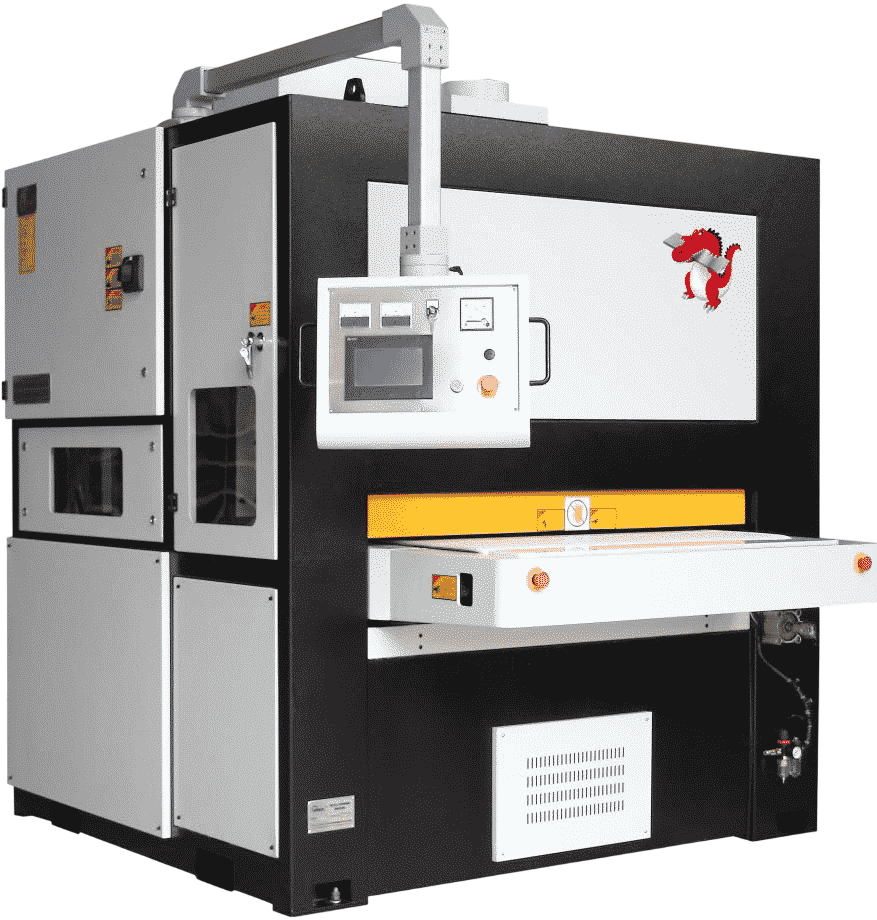

- MODEL : SGP1000
- MAX. WIDTH : 39.3"
- MAX. THICKNESS : 1.57"
- CONVEYOR : 3,3 - 16.4'/MIN (VARIABLE) EQUIPPED WITH VACCUM/SUCTION HOLES
- CONTROLLER : MITSUBISHI (PHOTO)
- Motor : 44 HP
- Voltage : 480V / 3PH

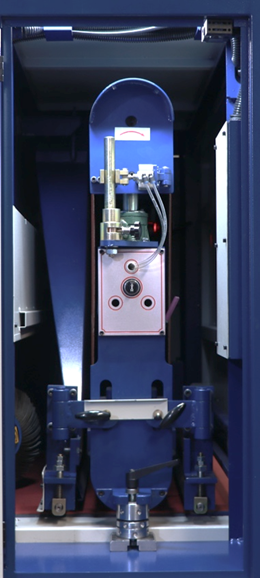

WORKSTATION 1: WIDE ABRASIVE BELT
BELT ROTATION: 2362'/MIN (FIXED) 86" X 40" SERVO MOTORIZED HEIGHT ADJUSTMENT UP TO 1.57"

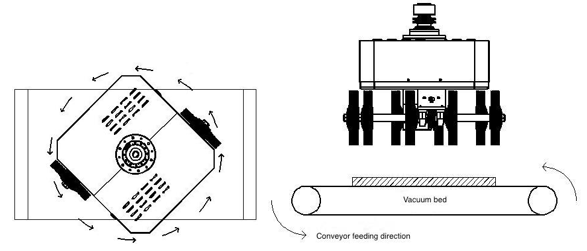

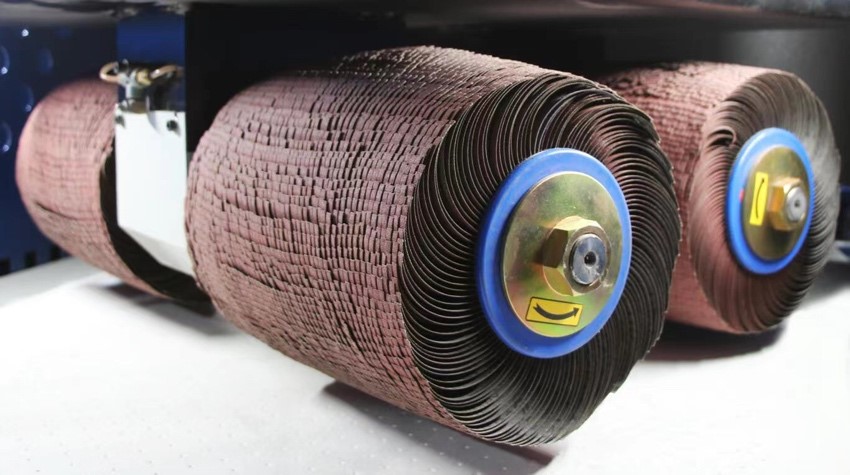

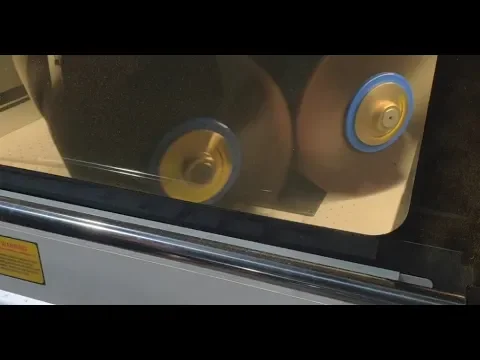

WORKSTATION 2: PLANETARY ABRASIVE BARRELS (4)
BARRELS ROTATION: 100-1300 RPM (VARIABLE) PLANETARY ROTATION: 1-17 RPM (VARIABLE) 12" X 11.5" SERVO MOTORIZED HEIGHT ADJUSTMENT UP TO 1.57"
- MULTIPLE GRITS AND TYPES AVAILABLE
Dimensions
- OVERALL : 97" X 80" X 81"
Weight
- 7700 LBS
