- Product No : NFJO-SGP1300
- MODEL : SGP1300
- MAX. WIDTH : 50.4"
- MAX. THICKNESS : 1.57"
- CONVEYOR : 3,3 - 16.4'/MIN (VARIABLE) EQUIPPED WITH VACCUM/SUCTION HOLES

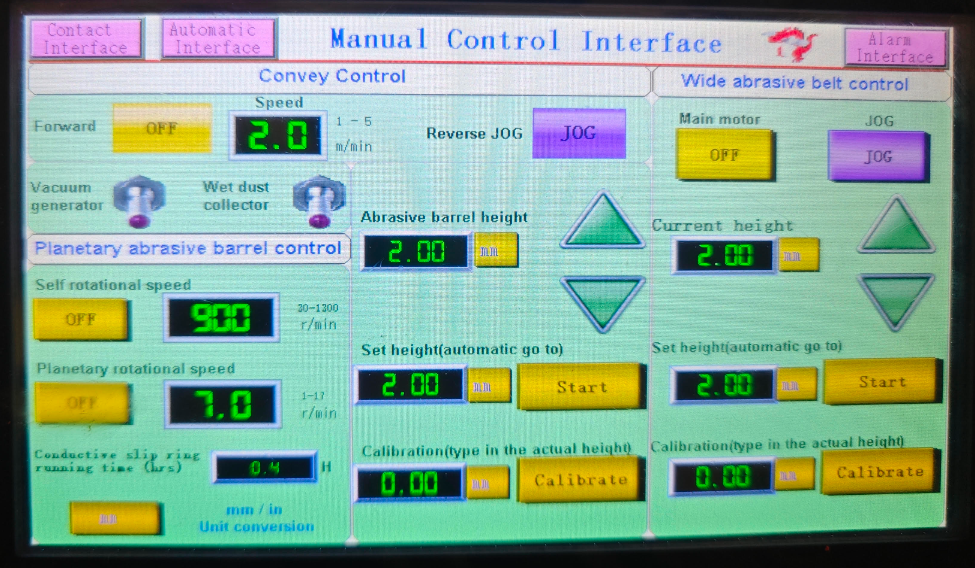

- CONTROLLER : MITSUBISHI (PHOTO)
- Motor : 69.5 HP
- Voltage : 480V / 3PH
WORKSTATION 1: WIDE ABRASIVE BELT
BELT ROTATION: 2362'/MIN (FIXED) 86" X 51" SERVO MOTORIZED HEIGHT ADJUSTMENT UP TO 1.57"

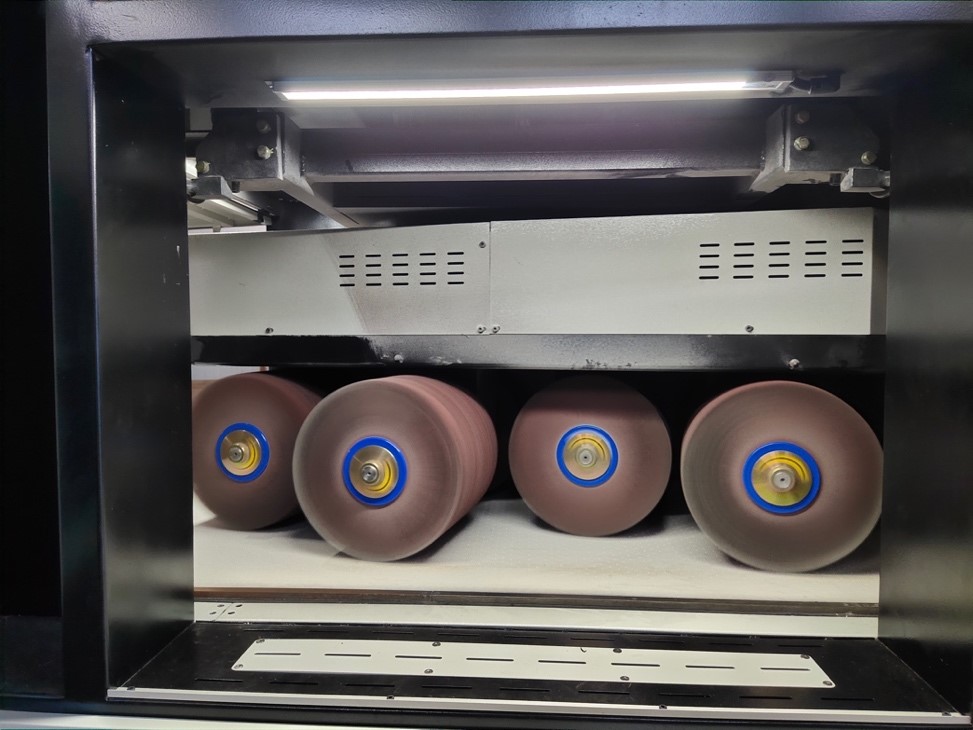

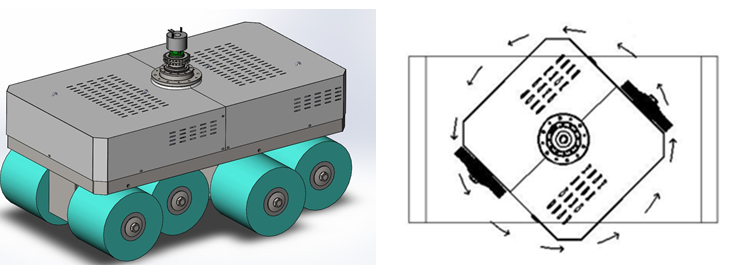

WORKSTATION 2: PLANETARY ABRASIVE BARRELS (8)
BARRELS ROTATION: 100-1000 RPM (VARIABLE) PLANETARY ROTATION: 1-17 RPM (VARIABLE) 12" X 11.5" SERVO MOTORIZED HEIGHT ADJUSTMENT UP TO 1.57"
- MULTIPLE GRITS AND TYPES AVAILABLE
Dimensions
- OVERALL : 137" X 87" X 87" (MACHINE ONLY)
Weight
- 12100 LBS
