- Product No : NFFEL-2080GZJ
- Model : FEL-20/80 GZJ
- Type : CONVENTIONAL
- Capacity : OVER THE BED: 20", OVER THE CARRIAGE: 12.6"
- Longueur de travail : 40" / 60" / 80" OR 120"
- BED WIDTH : 16"
- Motor : 10HP
- Speed : (12) 36-1600 RPM
- Voltage : 600V / 3PH
OTHER SPECIFICATIONS:
- Spindle bore: 3.15″
- Feed rates: (0.063~2.52mm/rev)
- Number of threads: 90
(1~14mm – 0.5~7 Module – 28~2 Tpi – 56~4 DP) - Cross slide travel: 13″
- Tool slide travel: 5.7″

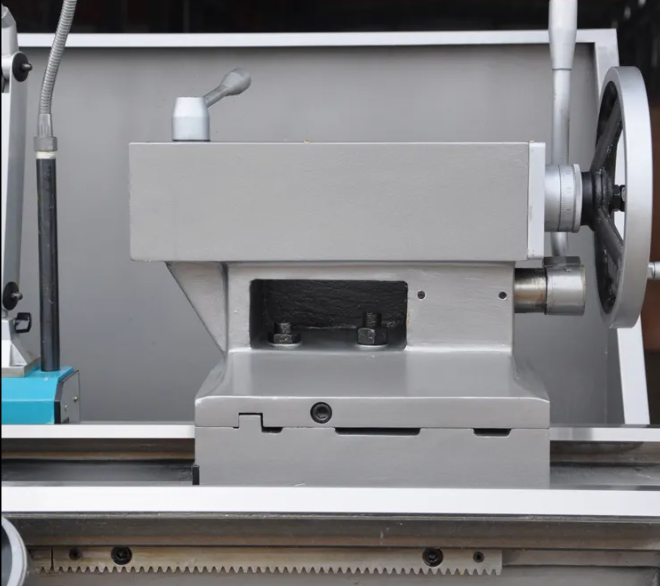

- Tailstock diameter / travel: 3″ / 6″
- Tailstock attachment: MT-5
INCLUDED ACCESSORIES:
- – 16″ rigid bed WITH Removable gap bed
- – Rapid longitudinal and transverse feed
- – DIGITAL READOUT 2 AXIS SINO
- – 3-jaw and 4-jaw chucks
- – QUICK-CHANGE TOOLHOLDER
- – 5 TOOLHOLDERS
- – Steady rest and follow rest with bearing points
- – Thread counter
- – Work lamp
- – Chip tray and cooling system
- – Full-length splash guard
- – Chuck and tool post protectors
- – leadscrew protector
- – 16″ faceplate
- – foot brake
AVAILABLE OPTION:
- – Taper turning attachment
Weight
- 3150 OR 3400KG
