- Product No : US8028
- BRAND : CHIEN YEH

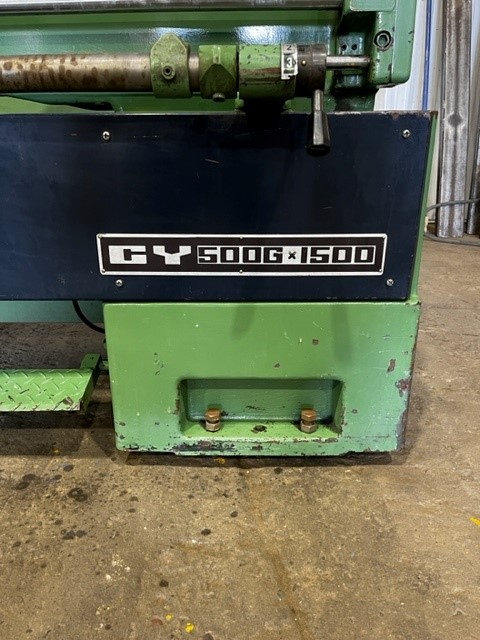

- Model : GY500G-1500
- TYPE : CONVENTIONAL
- Capacity : OVER THE BED: 20" OVER CARRIAGE: 13", IN GAP: 28",
- WORKING LENGHT : BETWEEN CENTERS: 60"
- TAILSTOCK TRAVERSE : 5,5"
- Speed : 40~1200 rpm
- Spindle bore : 3" 1/8
- BED WIDTH : 14"
- Voltage : 600V/3PH
- Attachment : TAILSTOCK: MT5
- SERIAL # : 86120
INCLUDED ACCESSORIES:
- 3 JAWS CHUCK
- IMPERIAL AND METRIC THREADING
- THREAD COUNTER
- CHIP PAN
- SPLASH GUARD
- COOLING SYSTEM
DIGITAL READOUT AVAILABLE AS AN OPTION
Dimensions
- : OVERALL: 108"X50"X60"
Weight
- 6173 LBS
