- PRODUCT NUMBER : US8184
- BRAND : DURMAZLAR

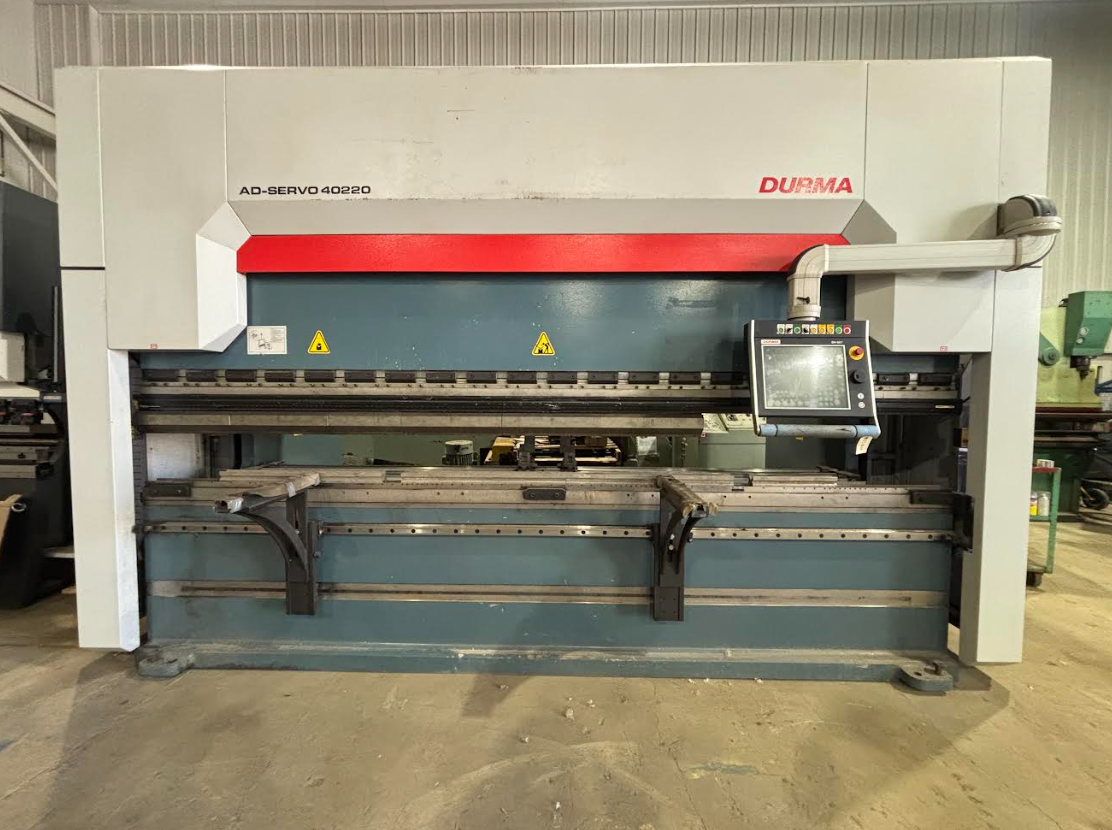

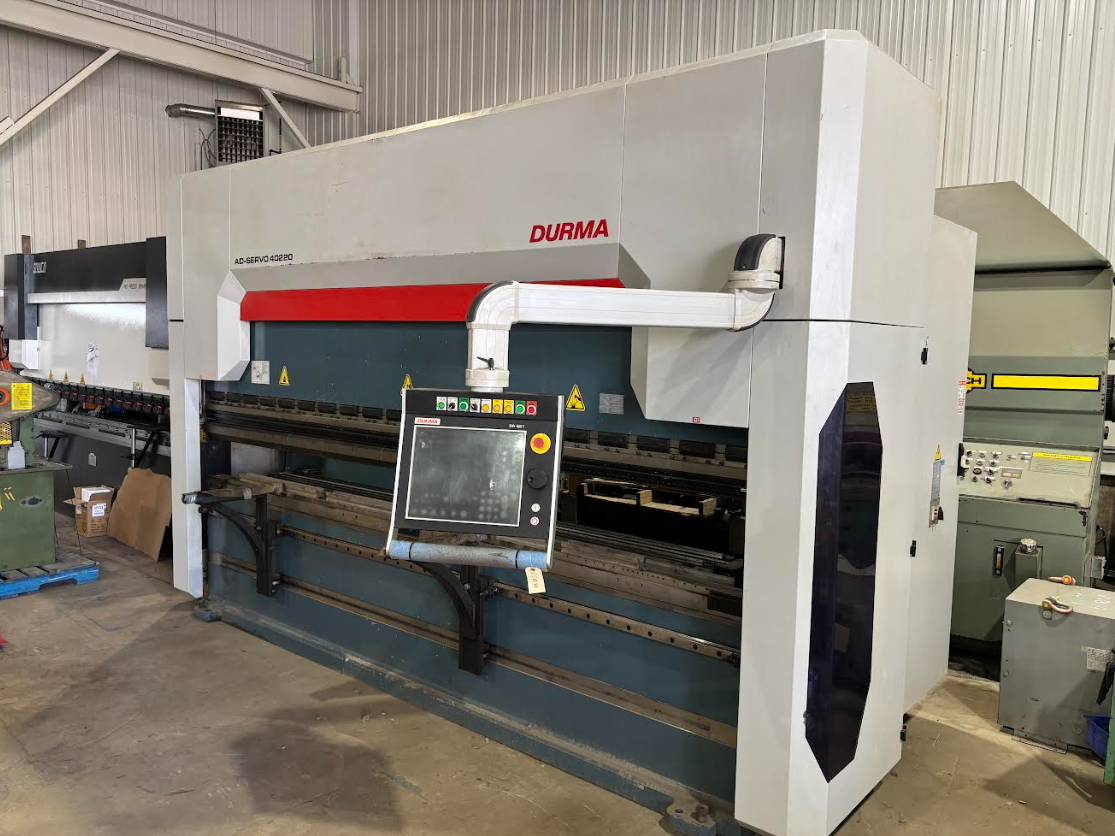

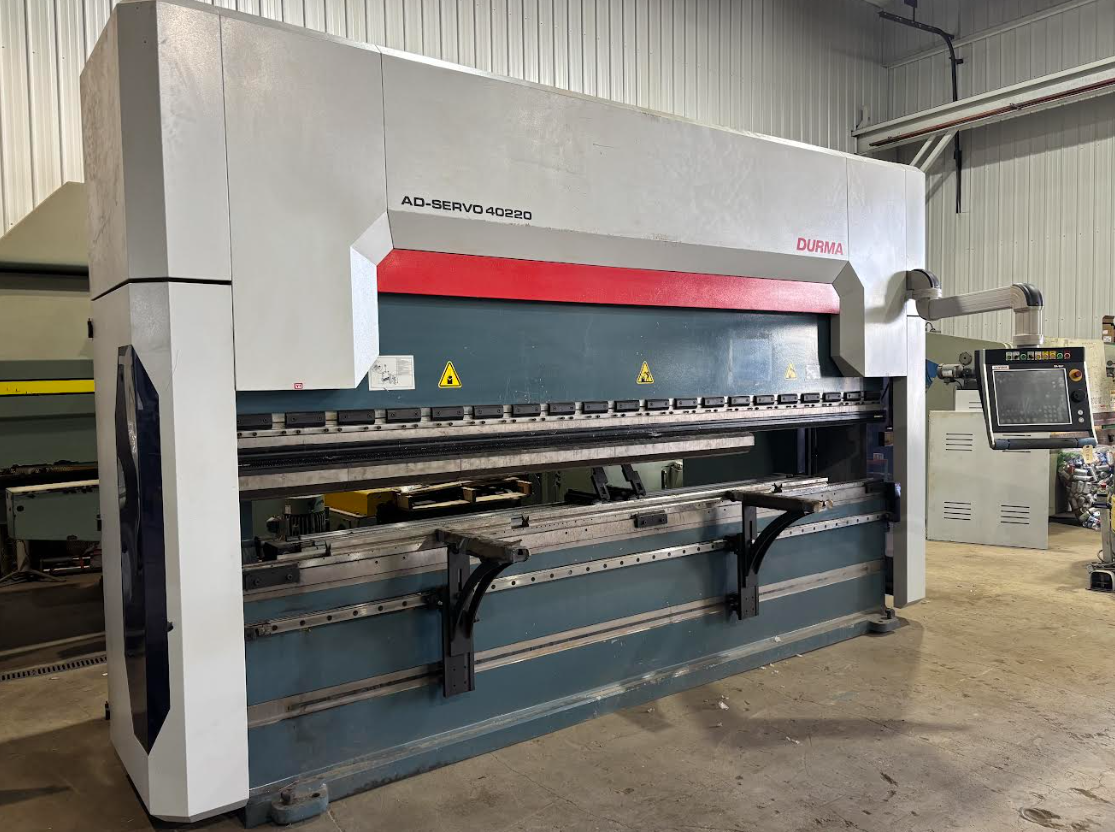

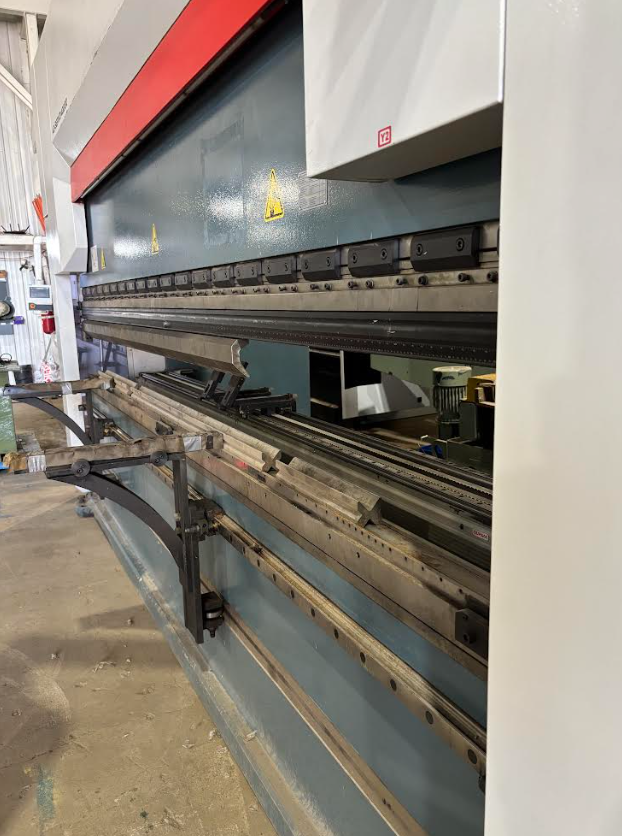

- Model : AD-SERVO 40220
- Capacity : 242 TONNES
- BENDING LENGTH : 159"
- DISTANCE BETWEEN COLUMNS : 141"
- STROKE : 10.4"
- WORKING HEIGHT : 35.5"
- THROAT : 16"

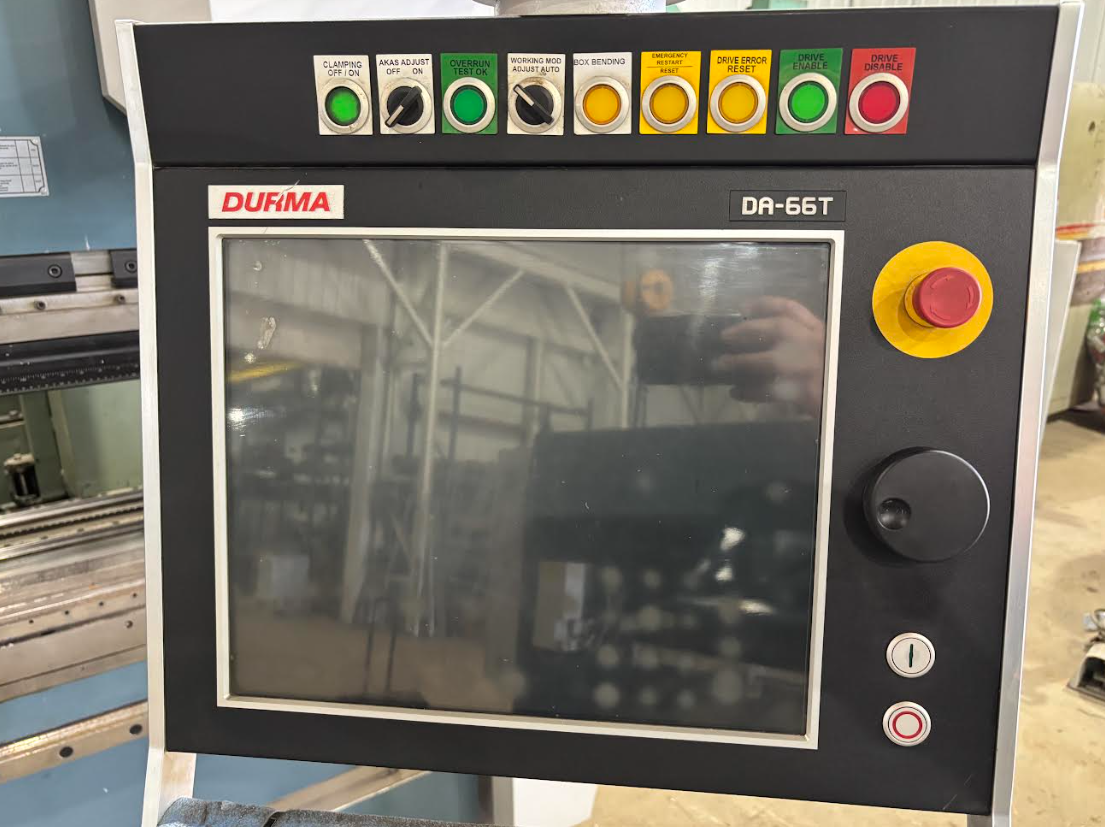

- CNC CONTROLLER : DELEM DA-66T
- YEAR : 2021

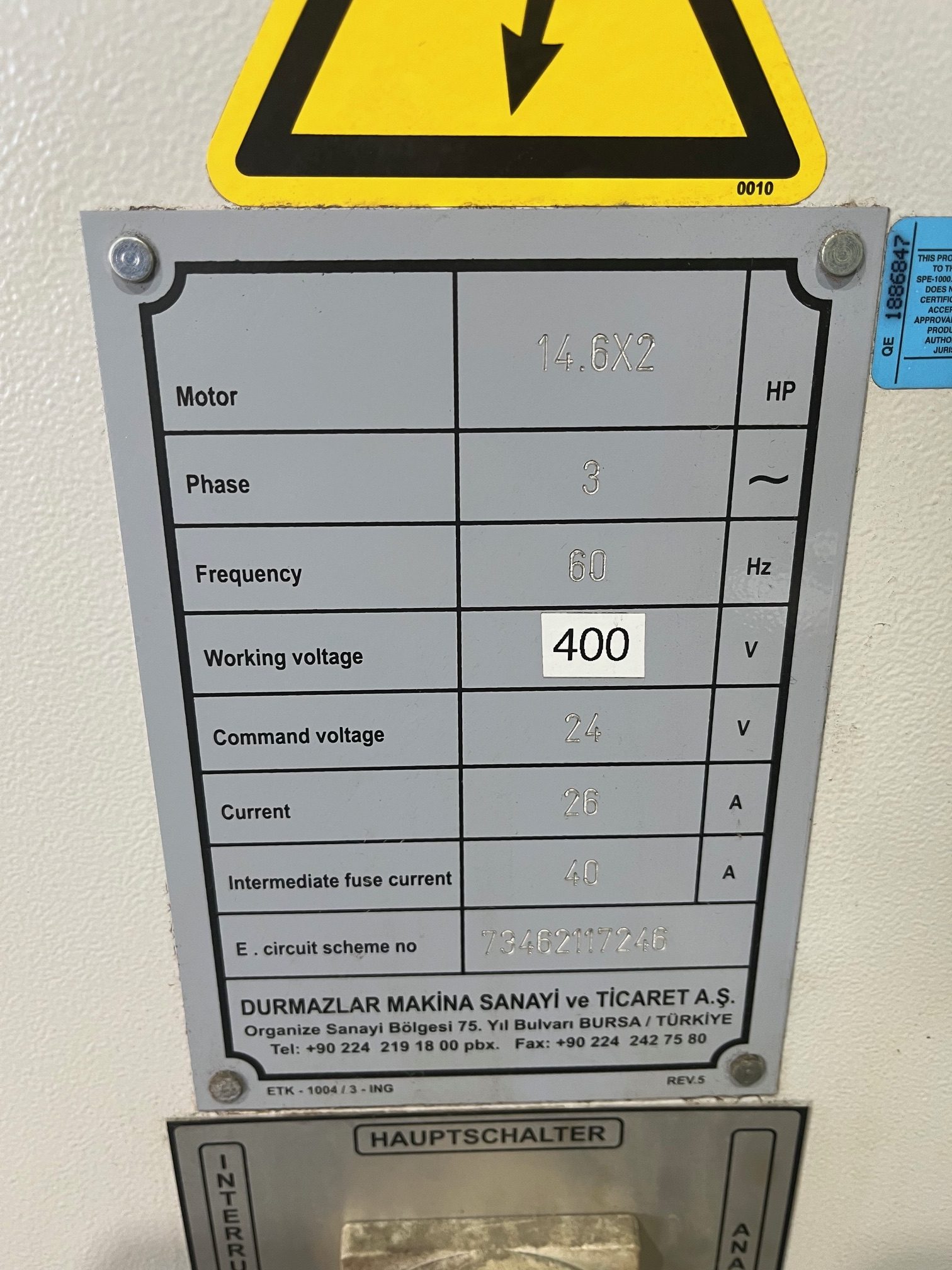

- Motor : 21 HP
- MOTOR : 29 HP
- Voltage : 400V/3PH

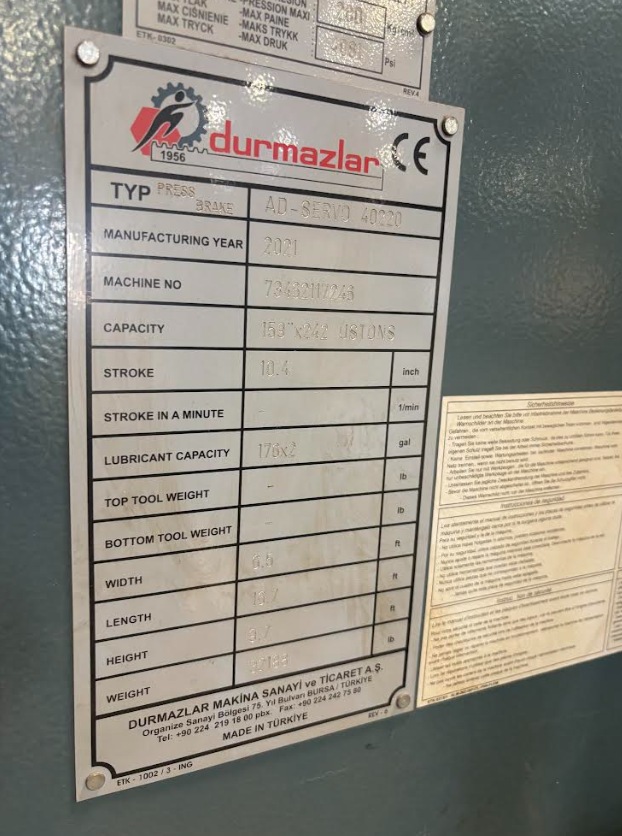

- SERIAL # : 73462117246

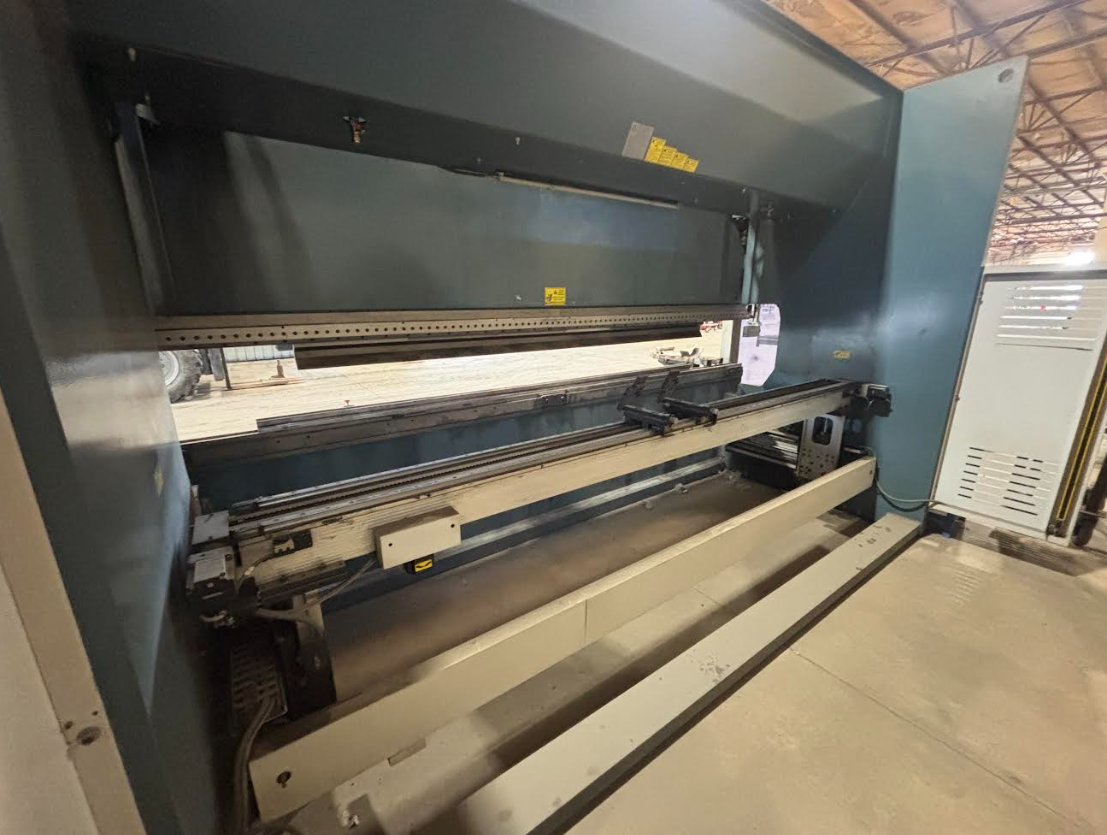

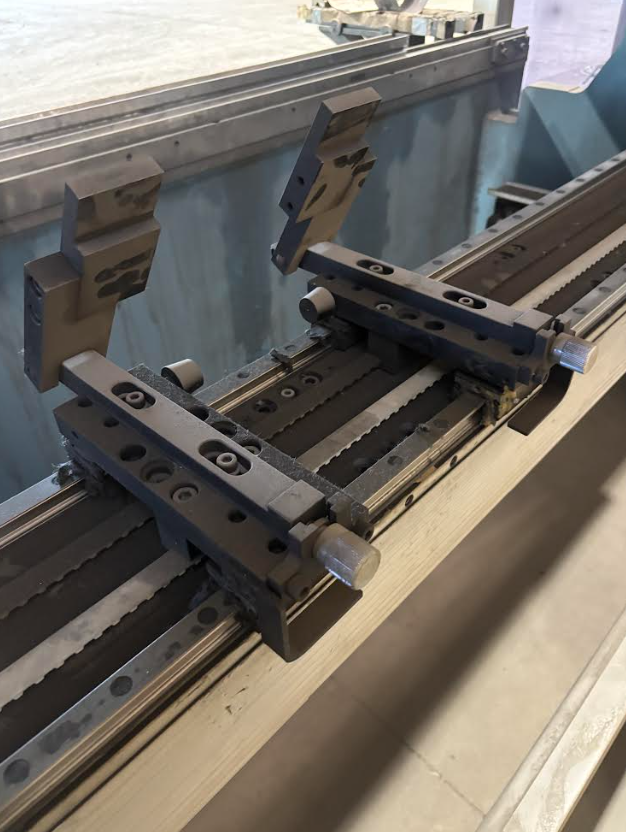

- 4 AXIS CNC BACKGAUGE: X, R, Z1, Z2
- TRANSFORMER 600V/400V INCLUDED
Dimensions
- OVERALL : 200" X 78" X 117"
Weight
- 32,200 LBS
