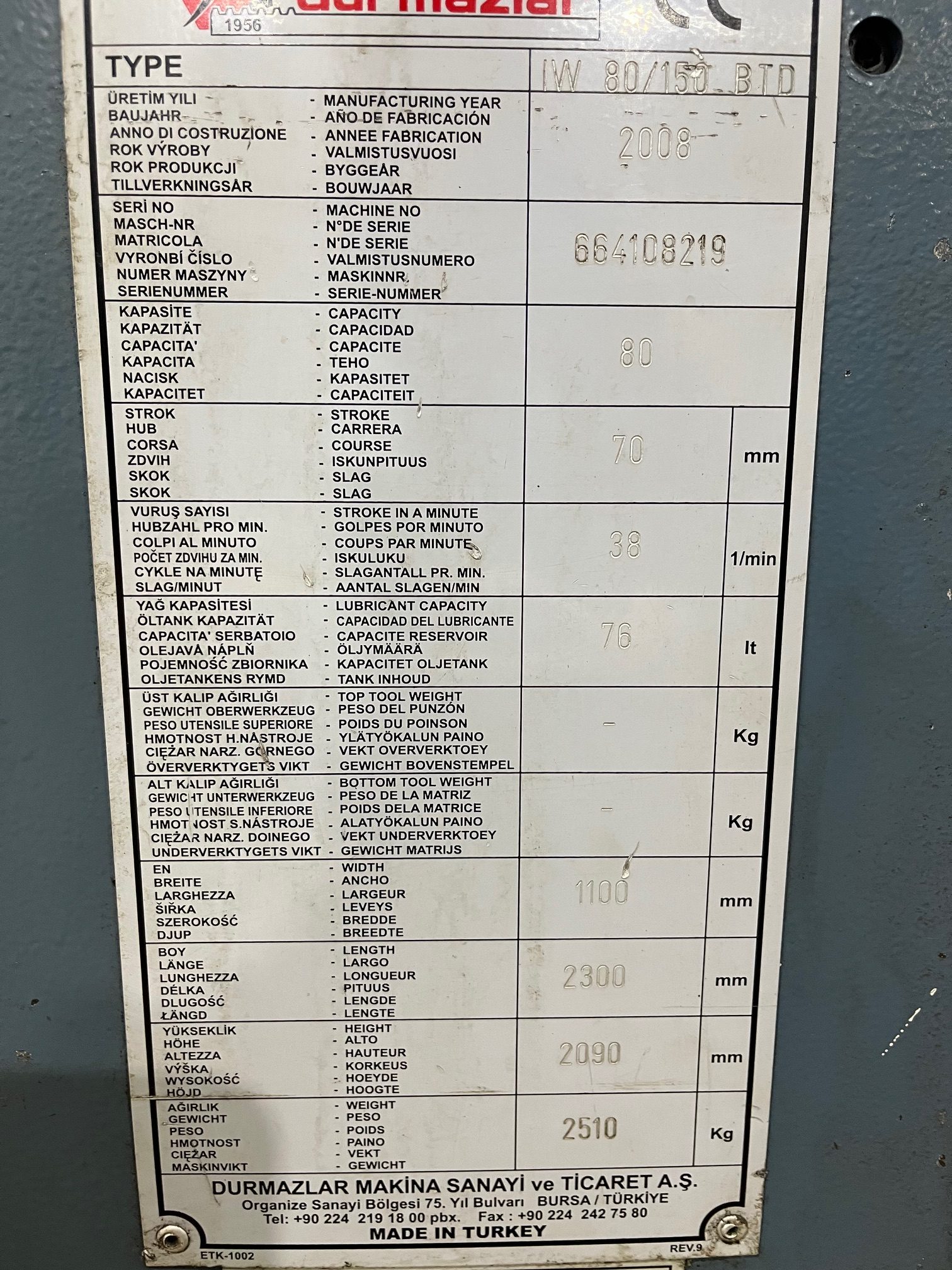

- Product No : US8184

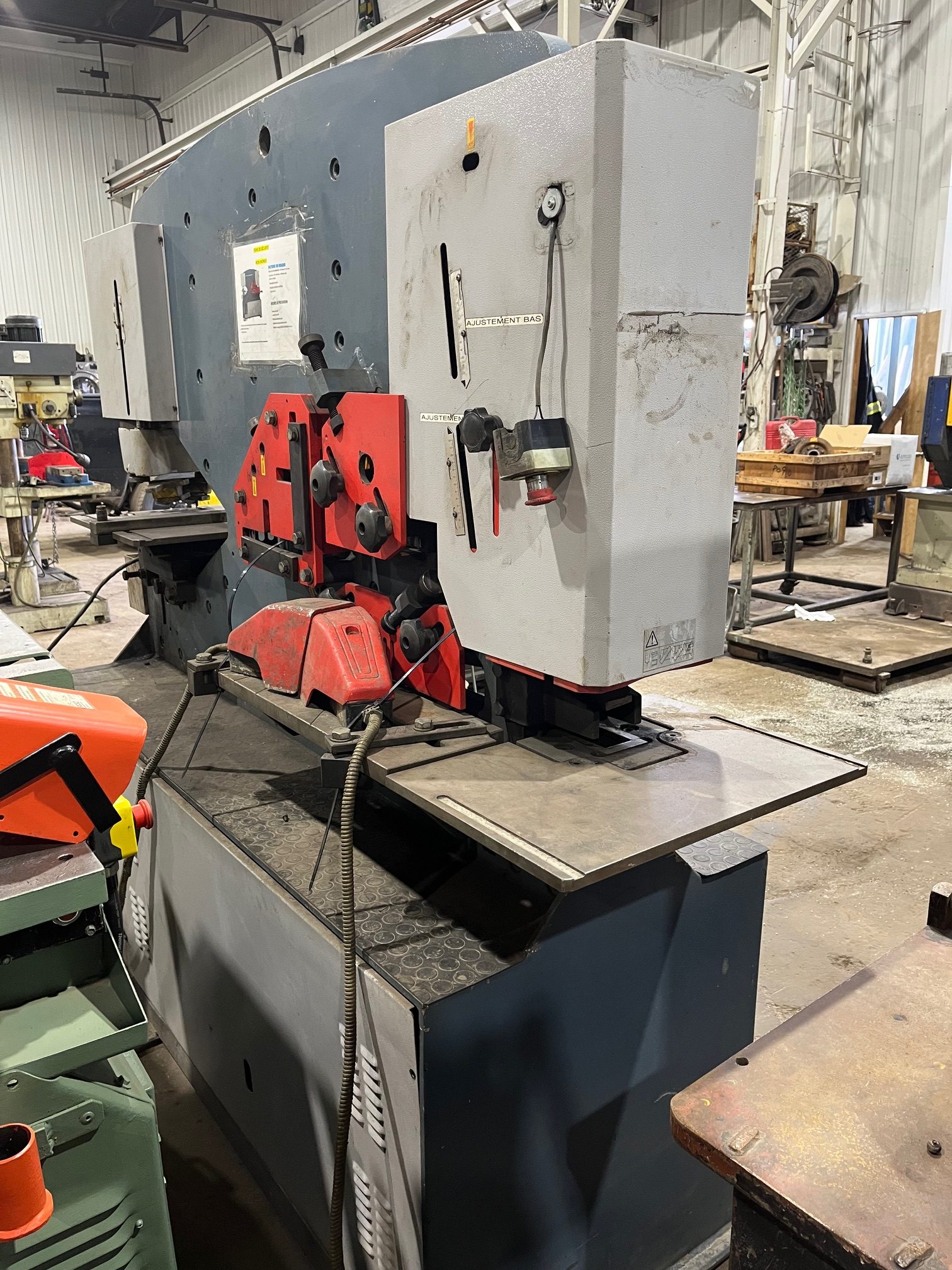

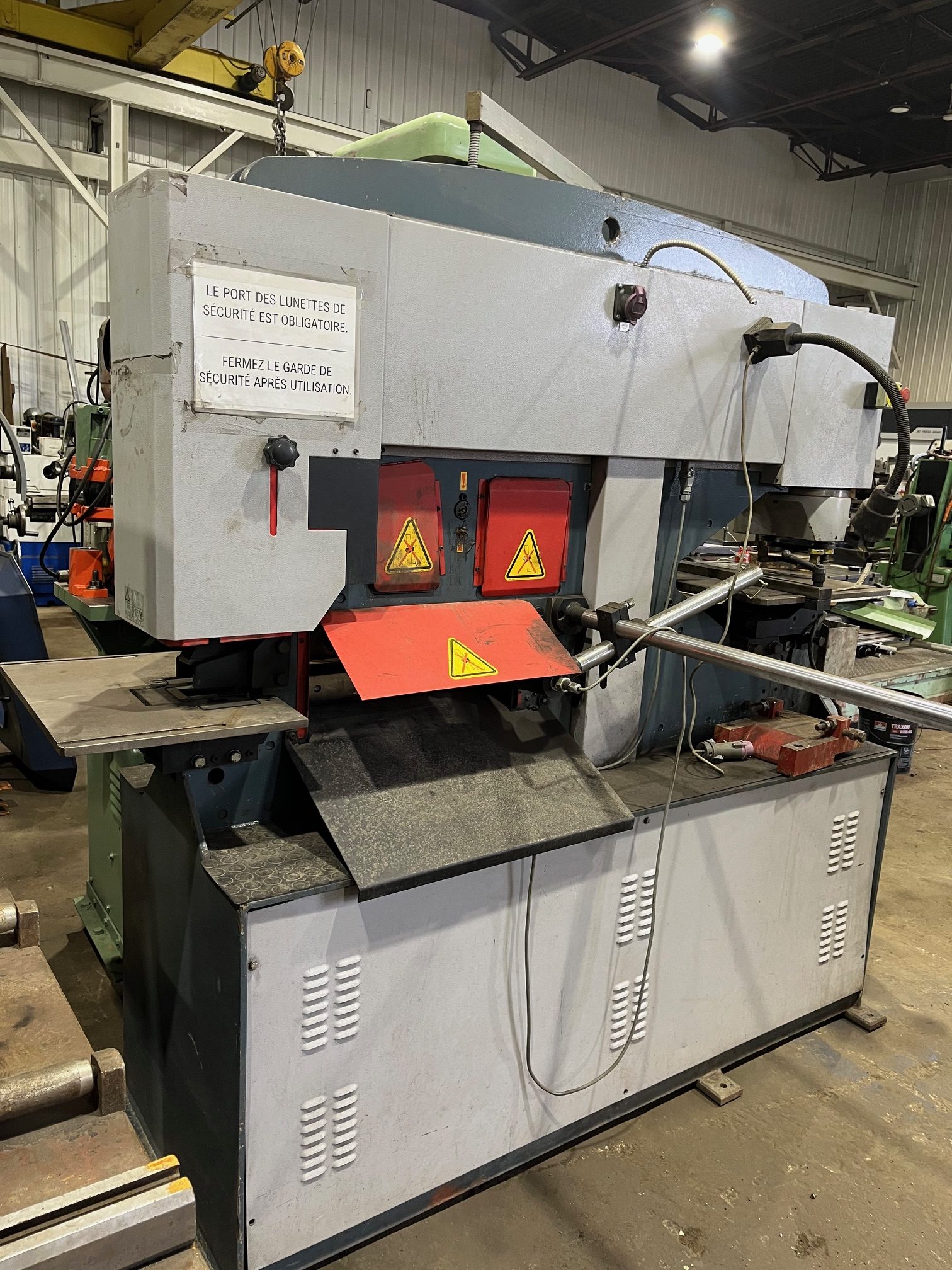

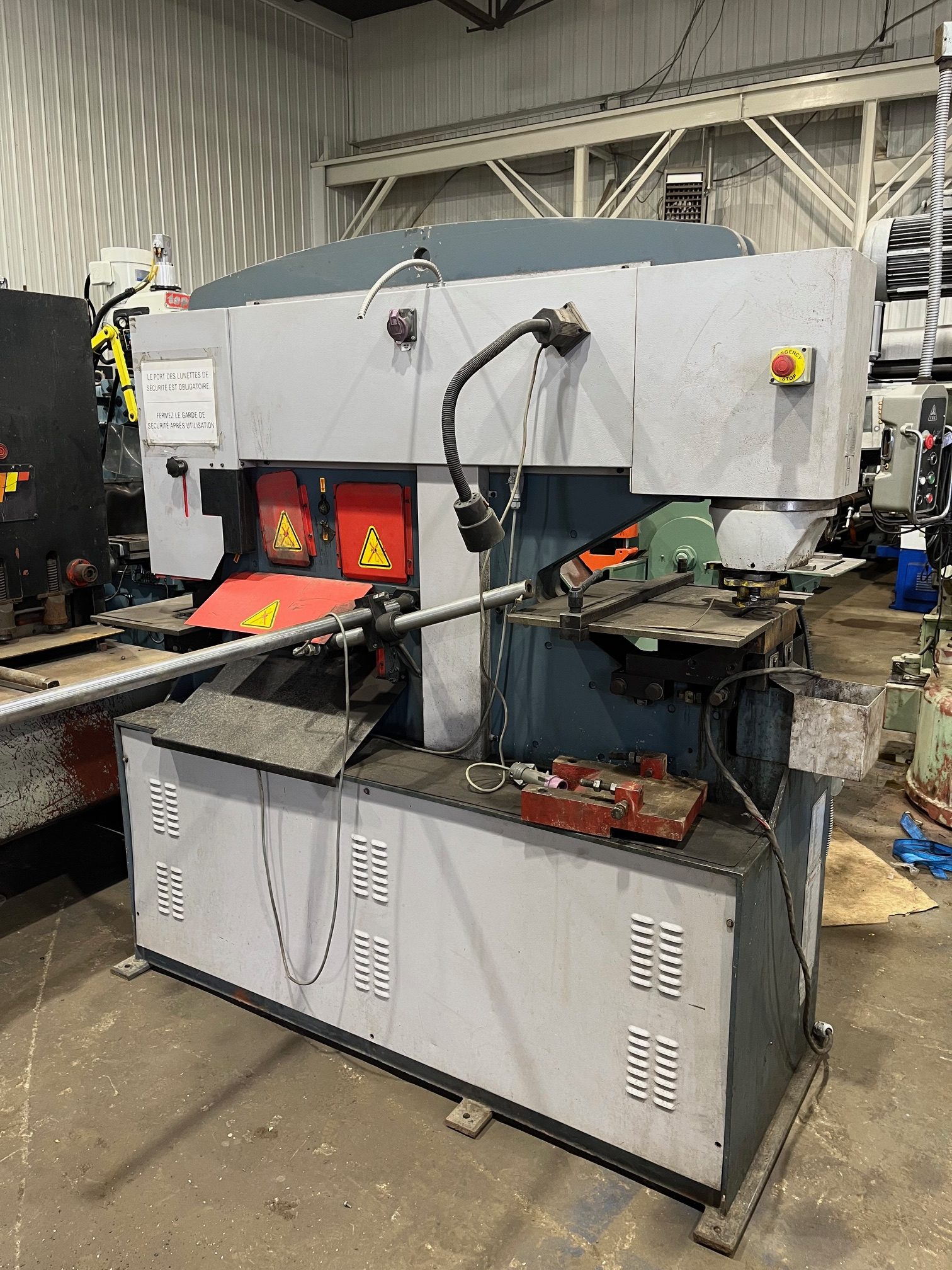

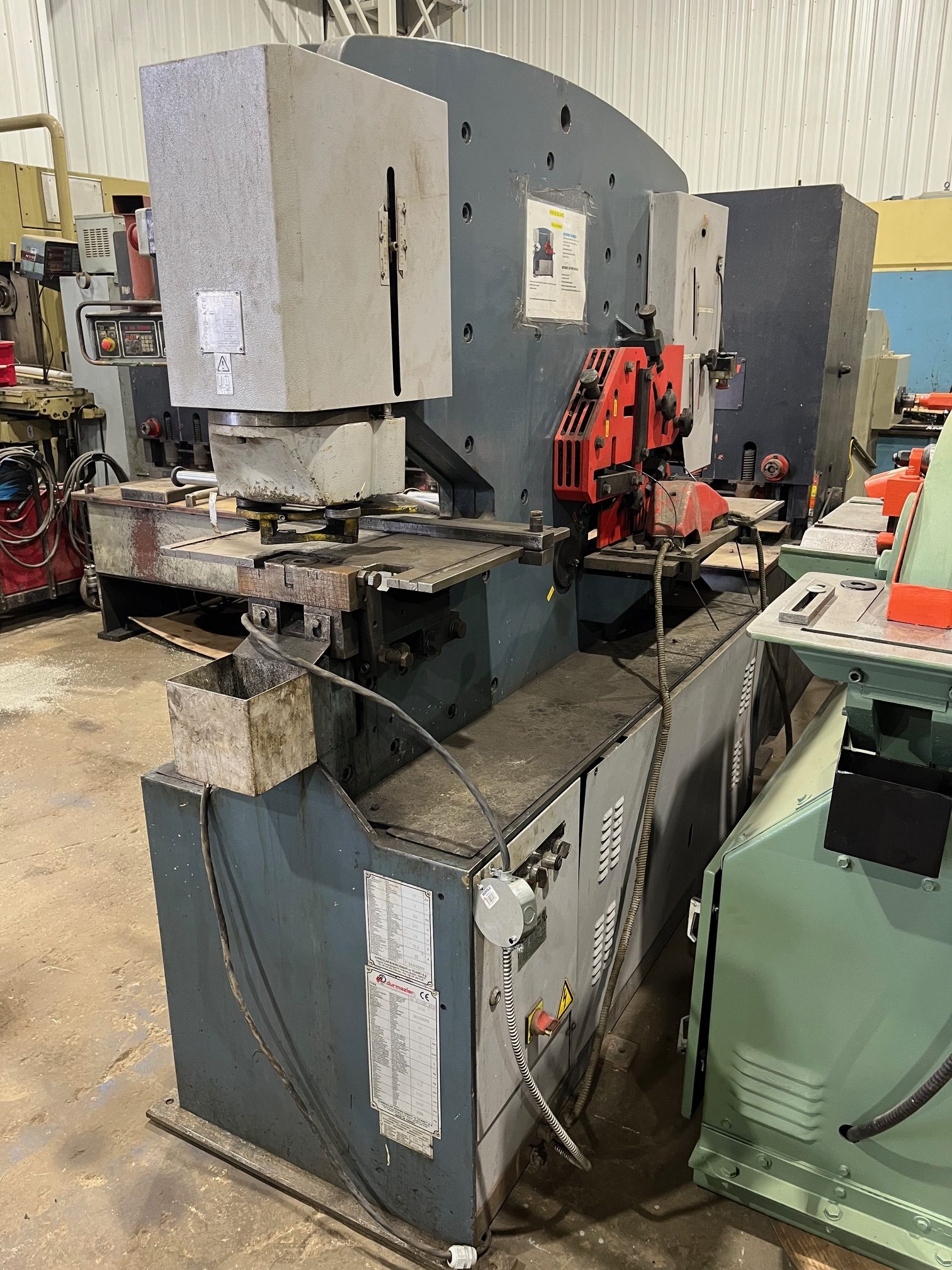

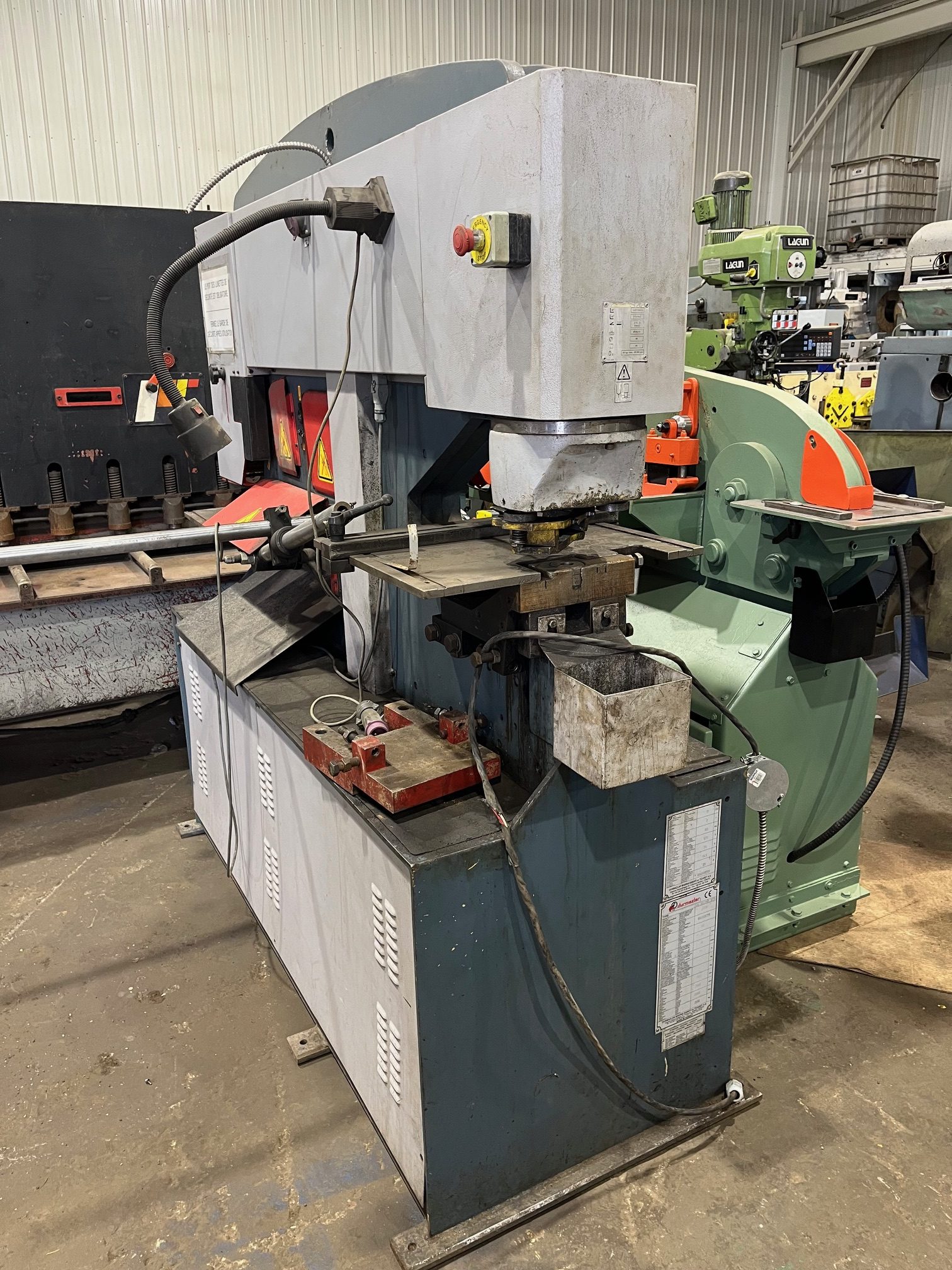

- Model : IW80/150 BTD
- Capacity : 88 US TONS
- STROKES PER MINUTE : 38

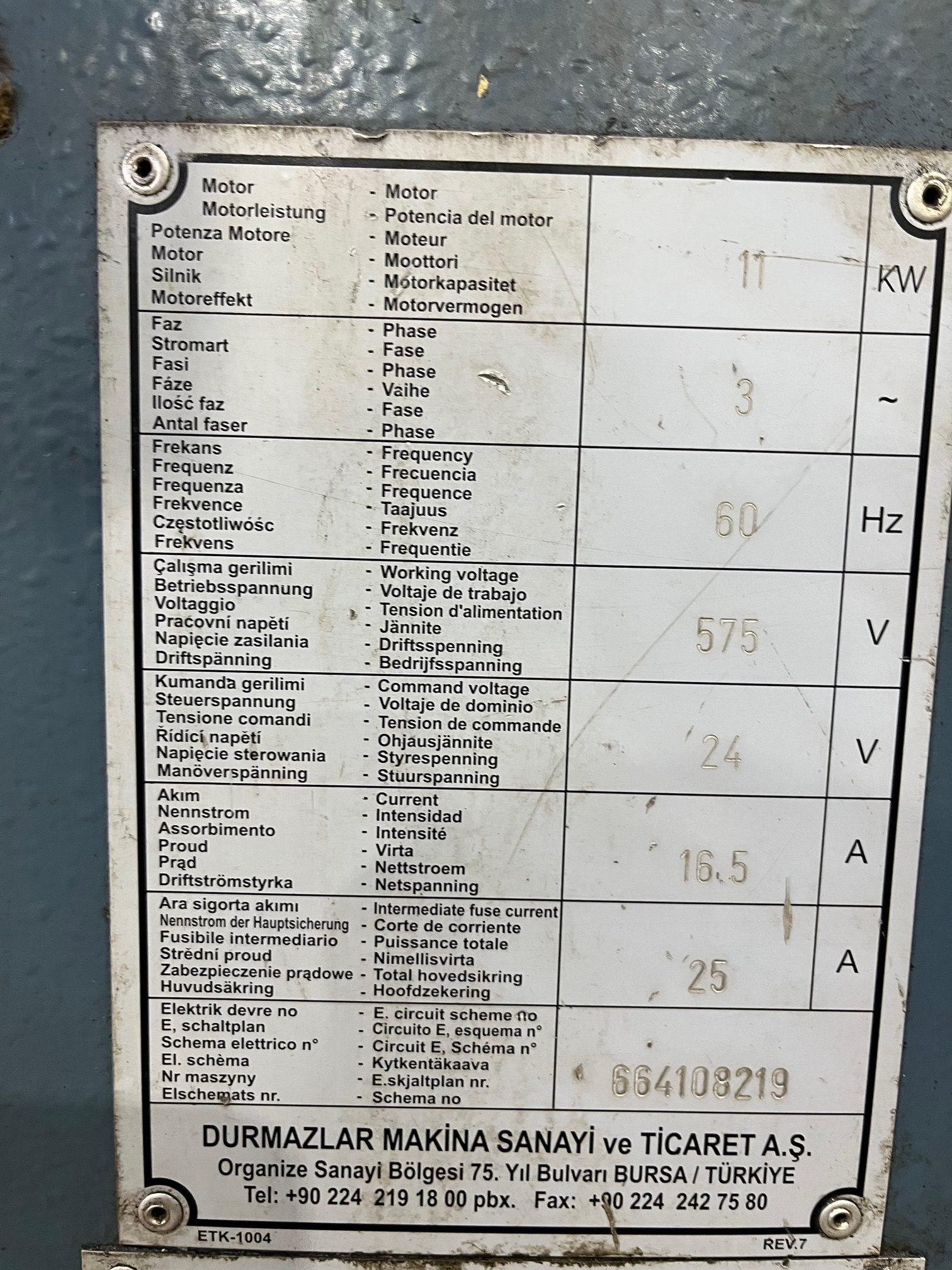

- Motor : 15 HP
- Voltage : 575V / 3PH
- YEAR : 2008
- N. de série : 664108219

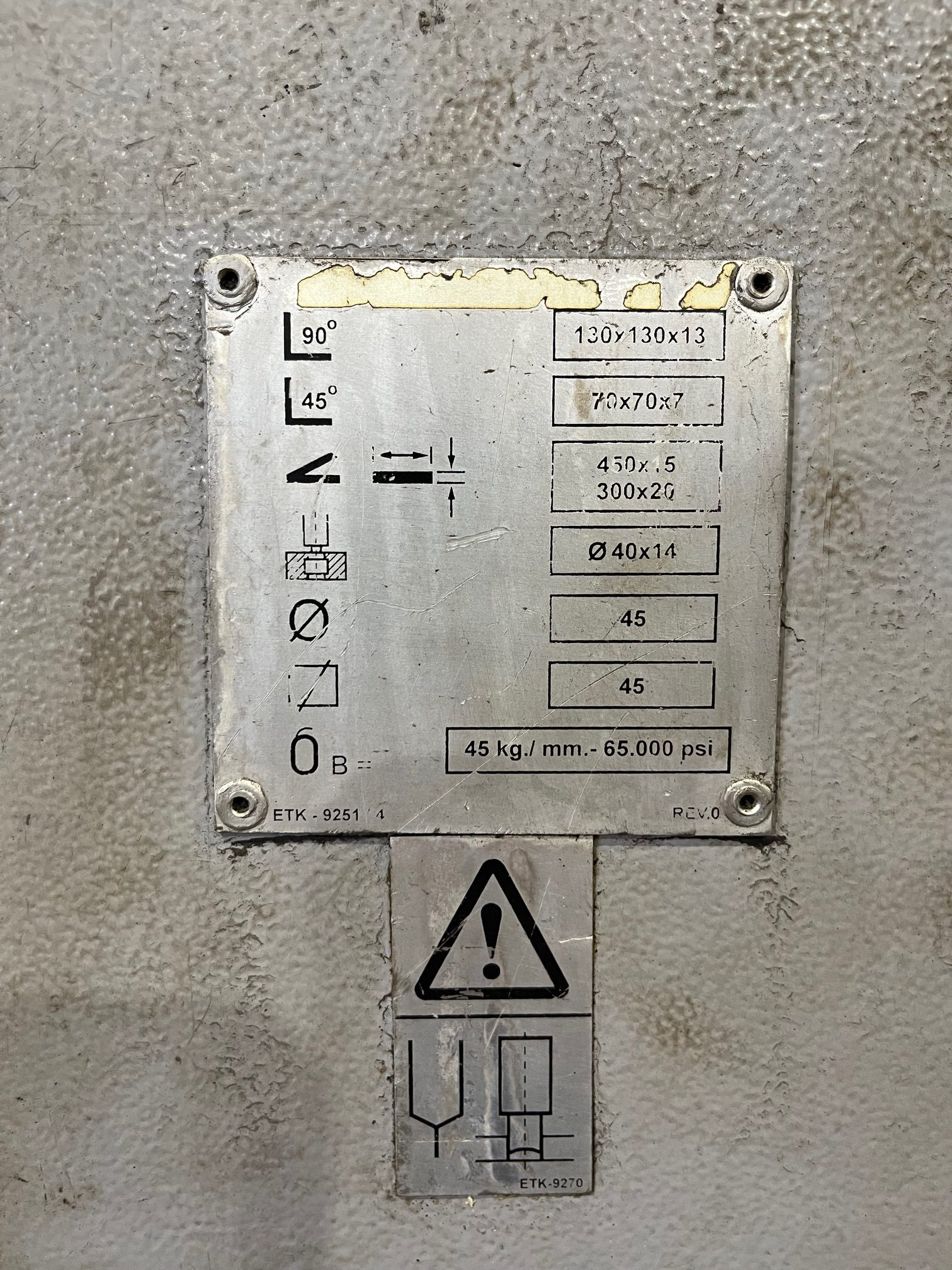

CAPACITIES:
STEEL ANGLE 90°: 130 X 13MM
STEEL ANGLE 45°: 70 X 7MM
FLAT BAR: 300 X 20MM OU 450 X 15MM

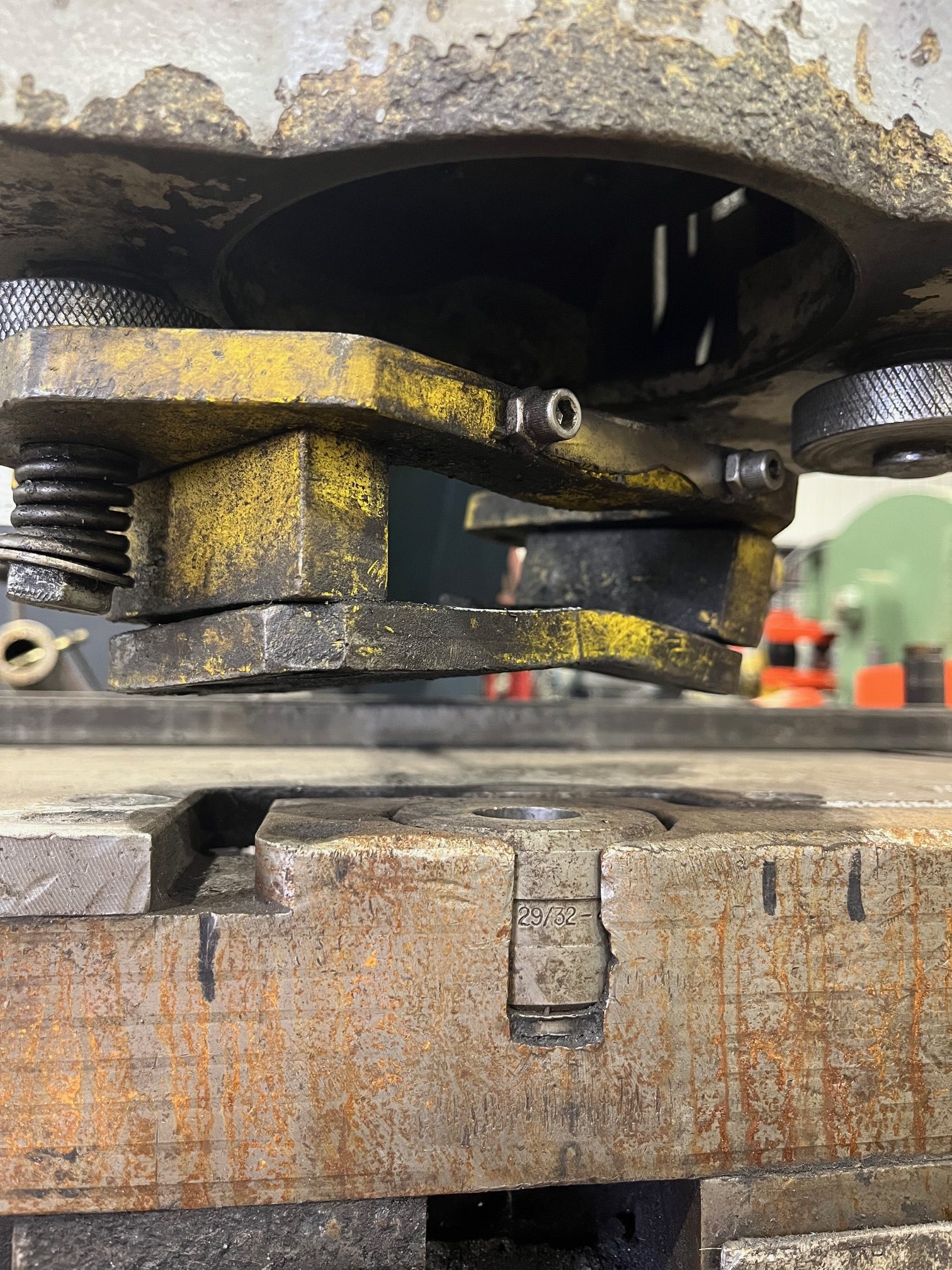

PUNCHING: 40MM (DIA) X 14MM (ÉPAISSEUR)
FULL ROUND BAR: 45MM (DIA)
FULL SQUARE BAR: 45MM X 45MM

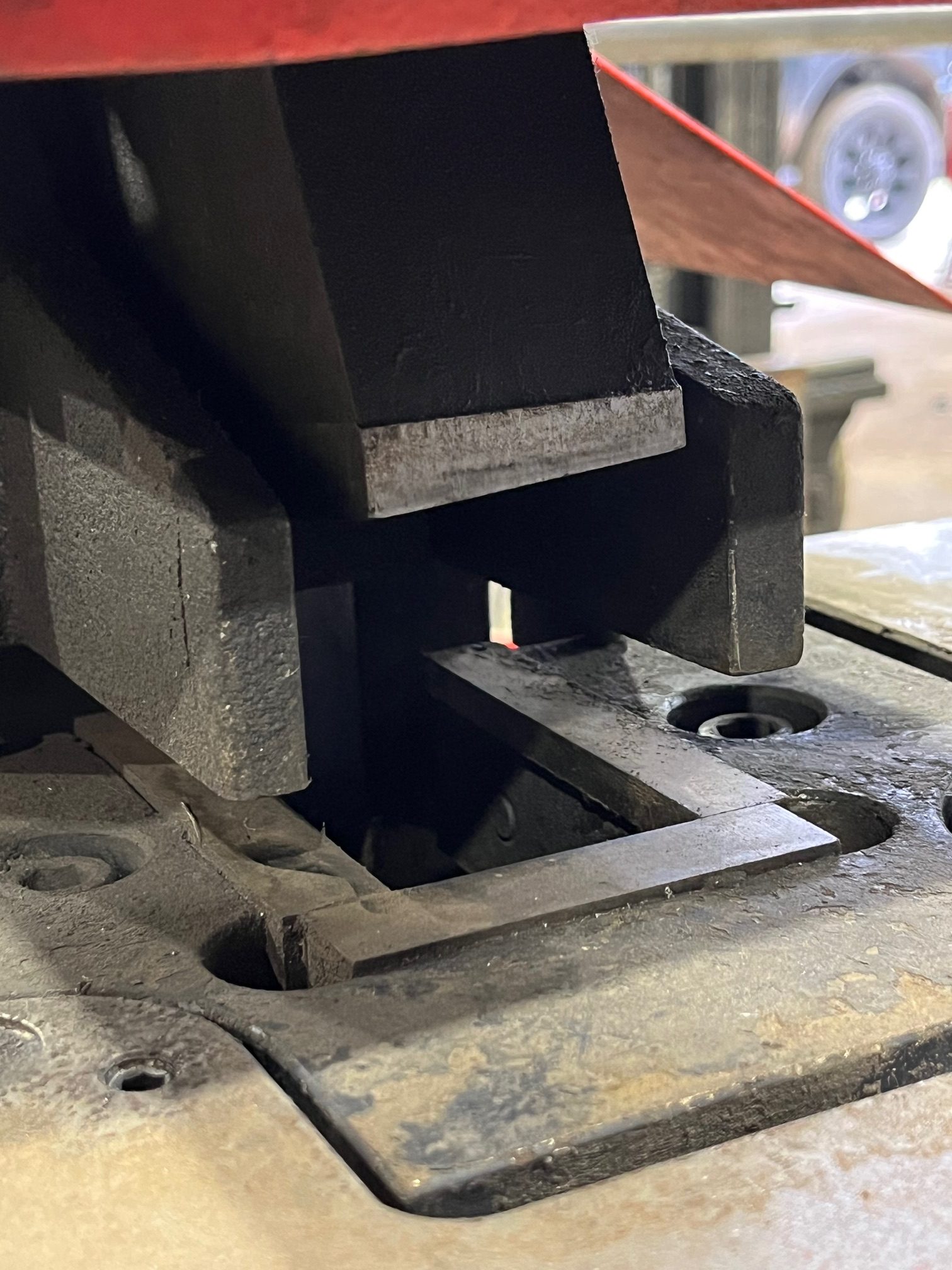

NOTCHER: 51MM X 102MM

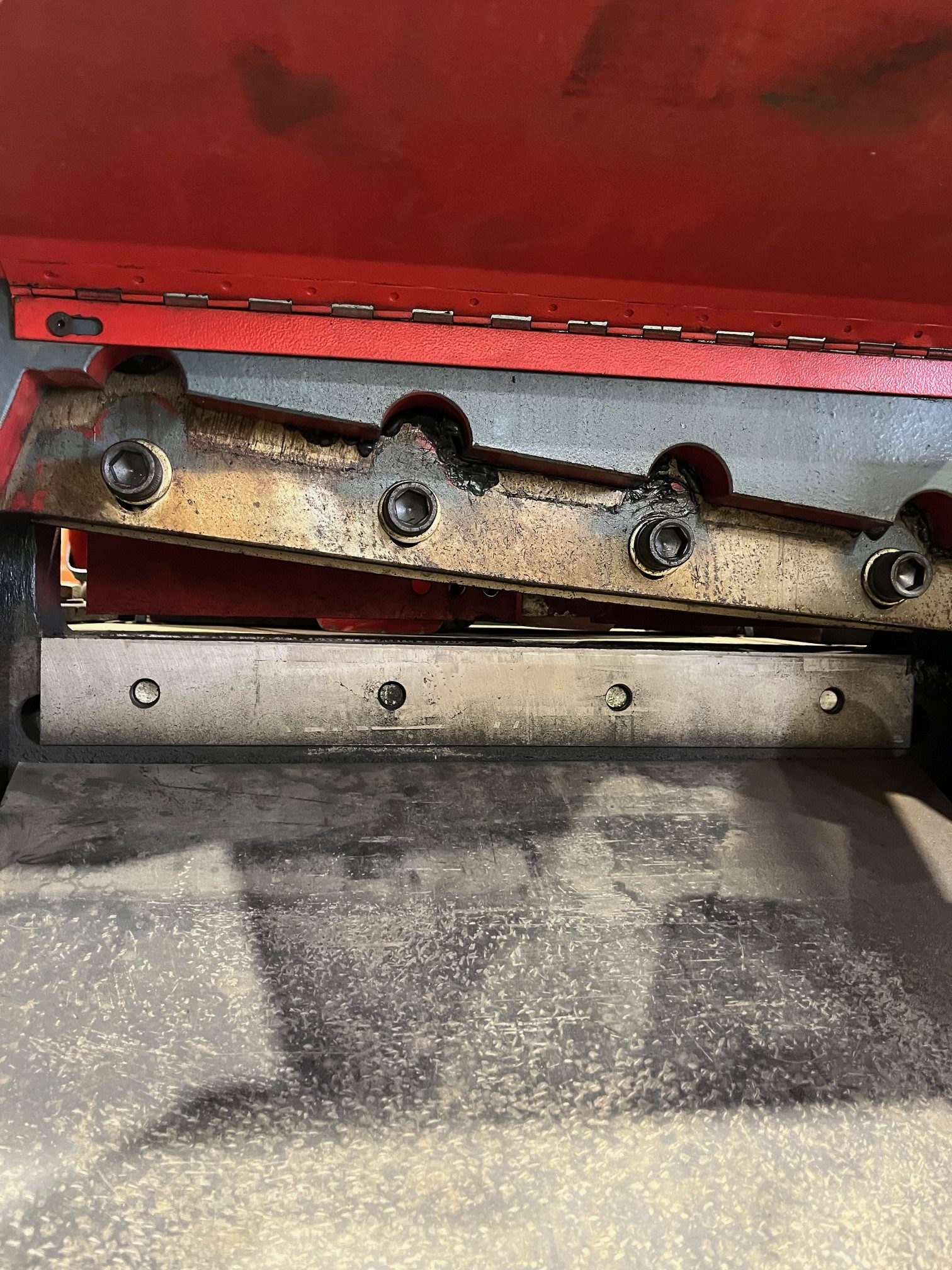

- NOTCHING BLADE INCLUDED
Dimensions
- OVERALL : 1100 X 2300 X 2090MM
Weight
- 5520 LBS
