- No de produit : US8186

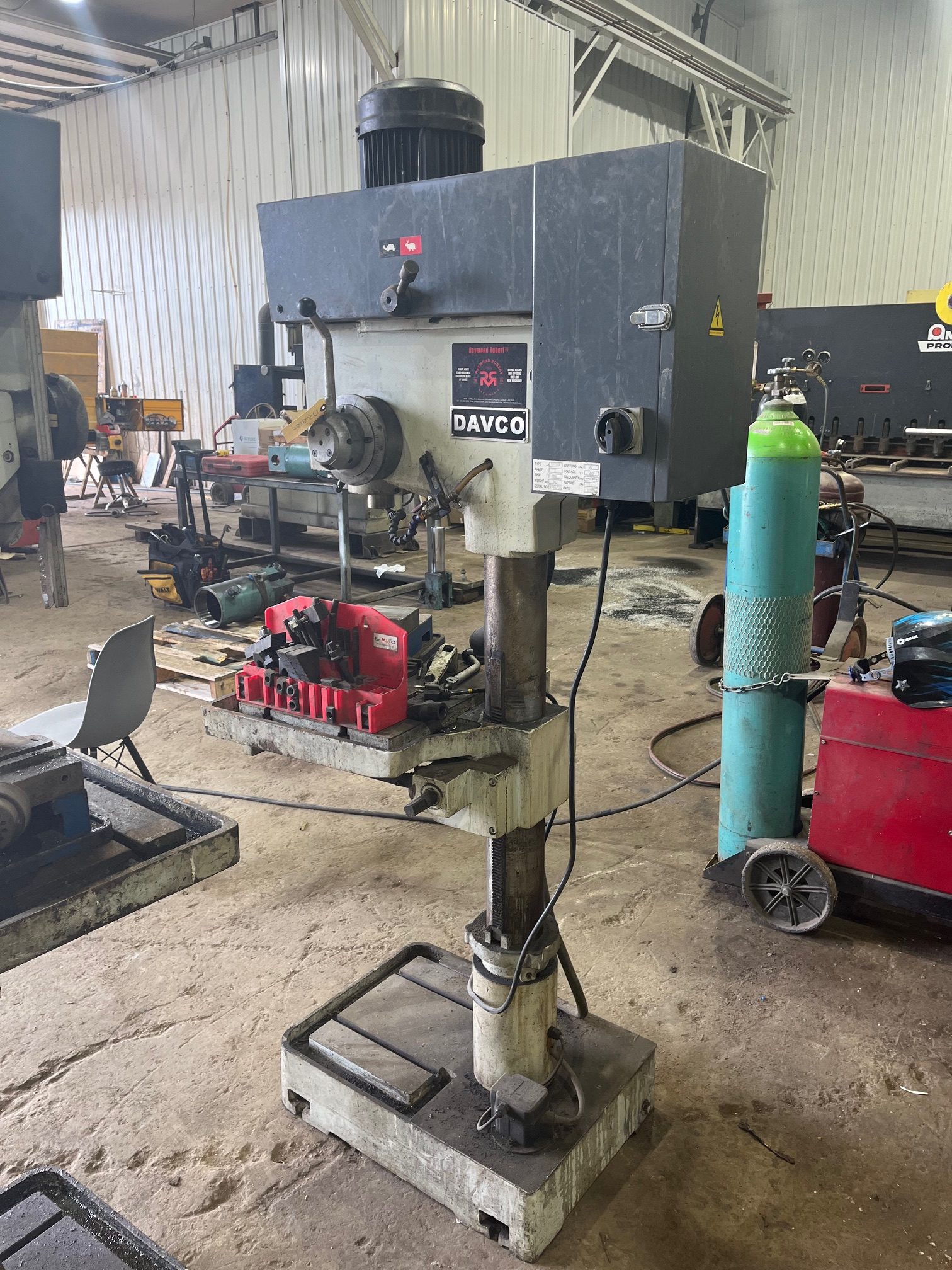

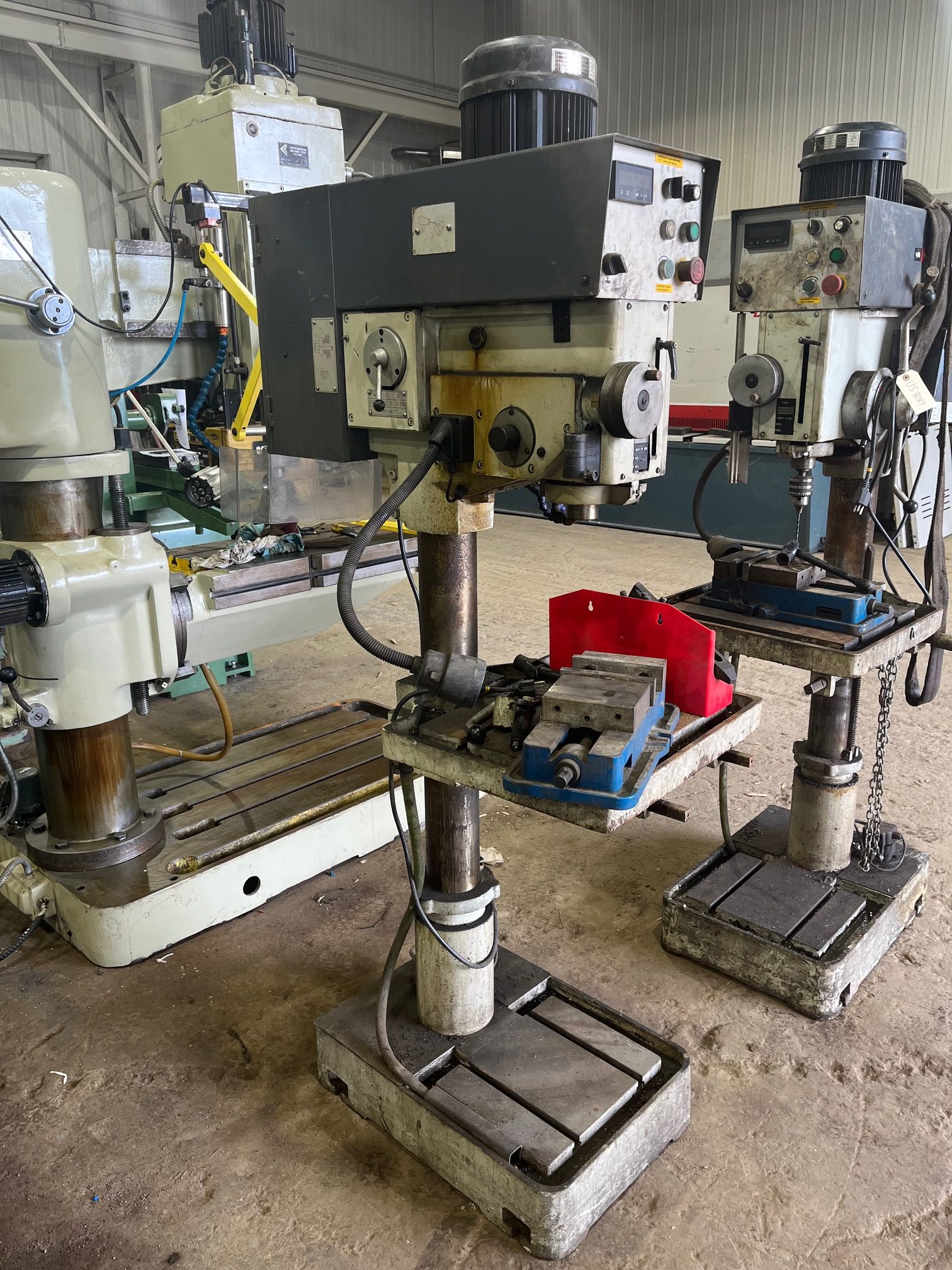

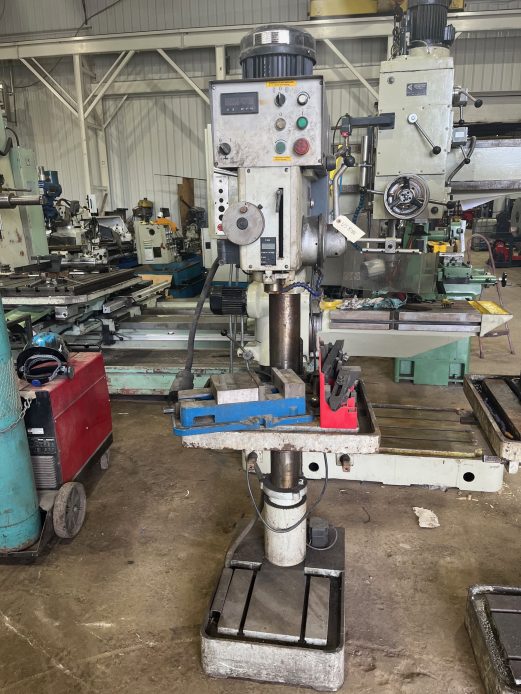

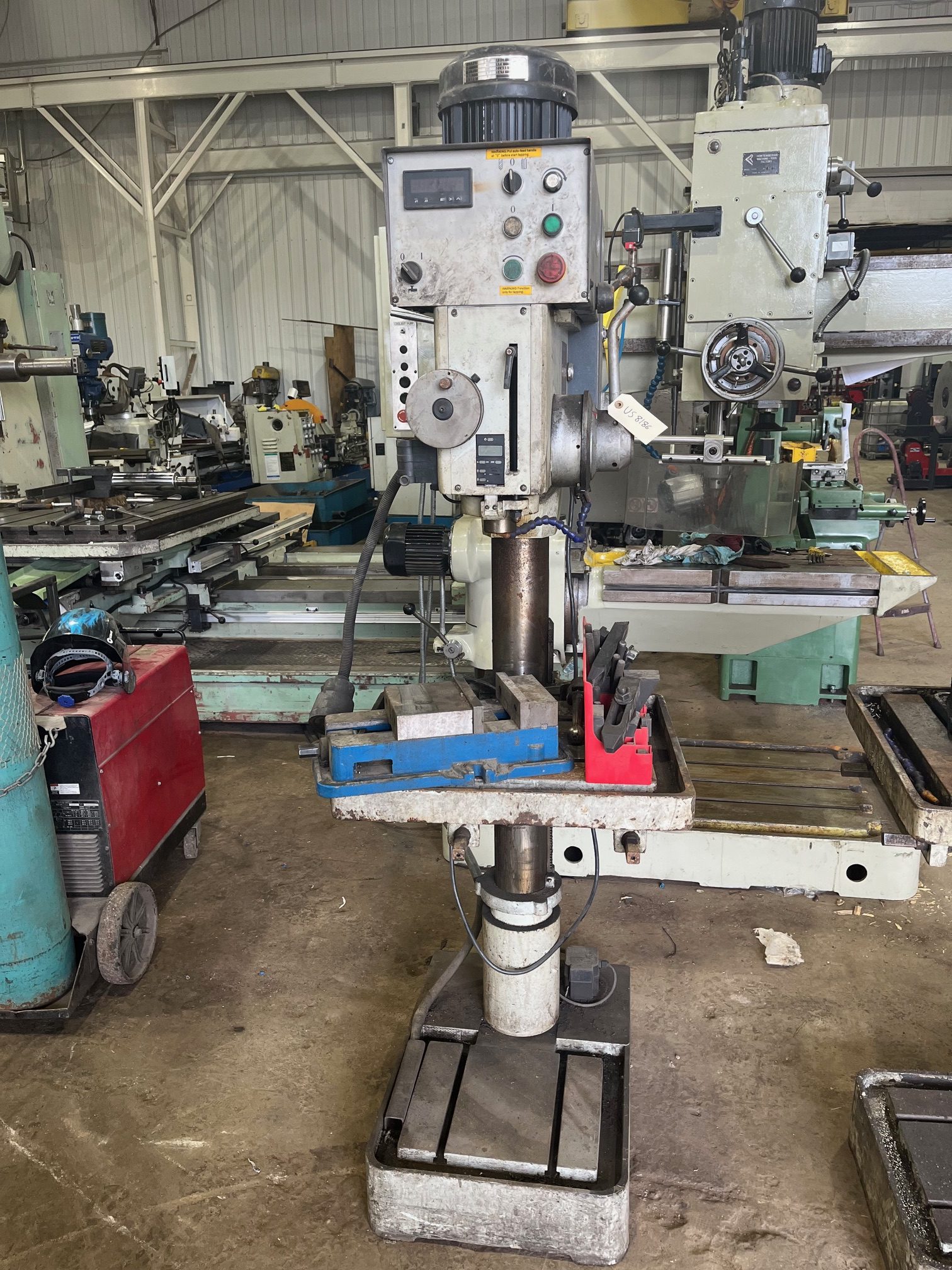

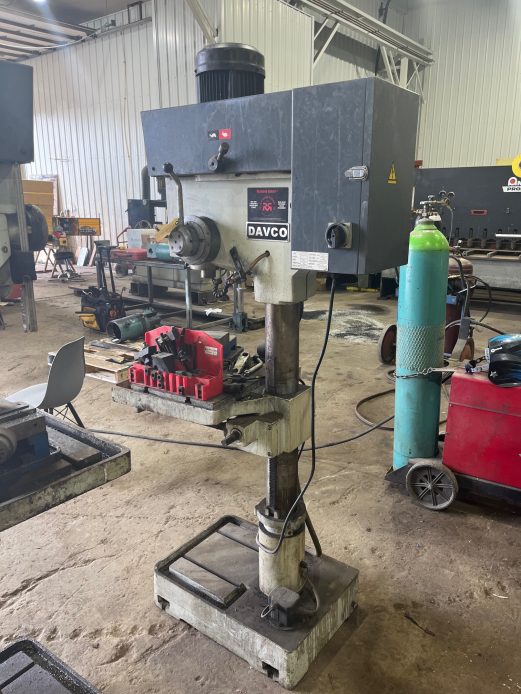

- Model : TX530A
- DRILLING CAPACITY : 1" 1/2

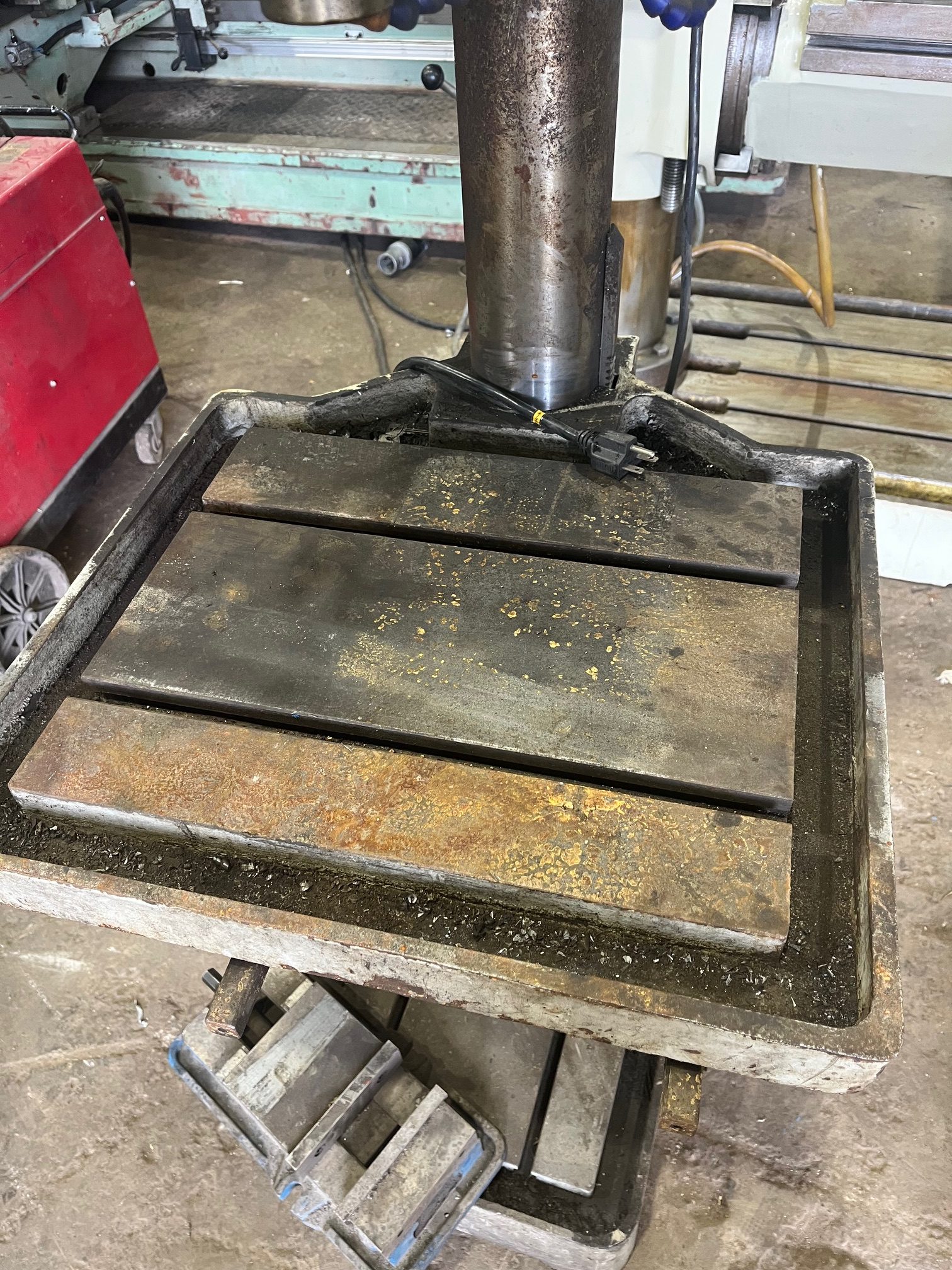

- TABLE SIZE : 22" X 19"
- DISTANCE FROM COLUMN TO QUILL : 10.4"
- COLUMN DIAMETER : 4.5"
- DISTANCE FROM NOSE TO TABLE : 24"
- QUILL FEED : 6"
- SPEED : LOW: 65-540 | HIGH: 245-2000 (VARIABLE)
- ATTACHMENT : MT4
- MOTOR : 3HP
- VOLTAGE : 220V / 1PH
- Année : 2019

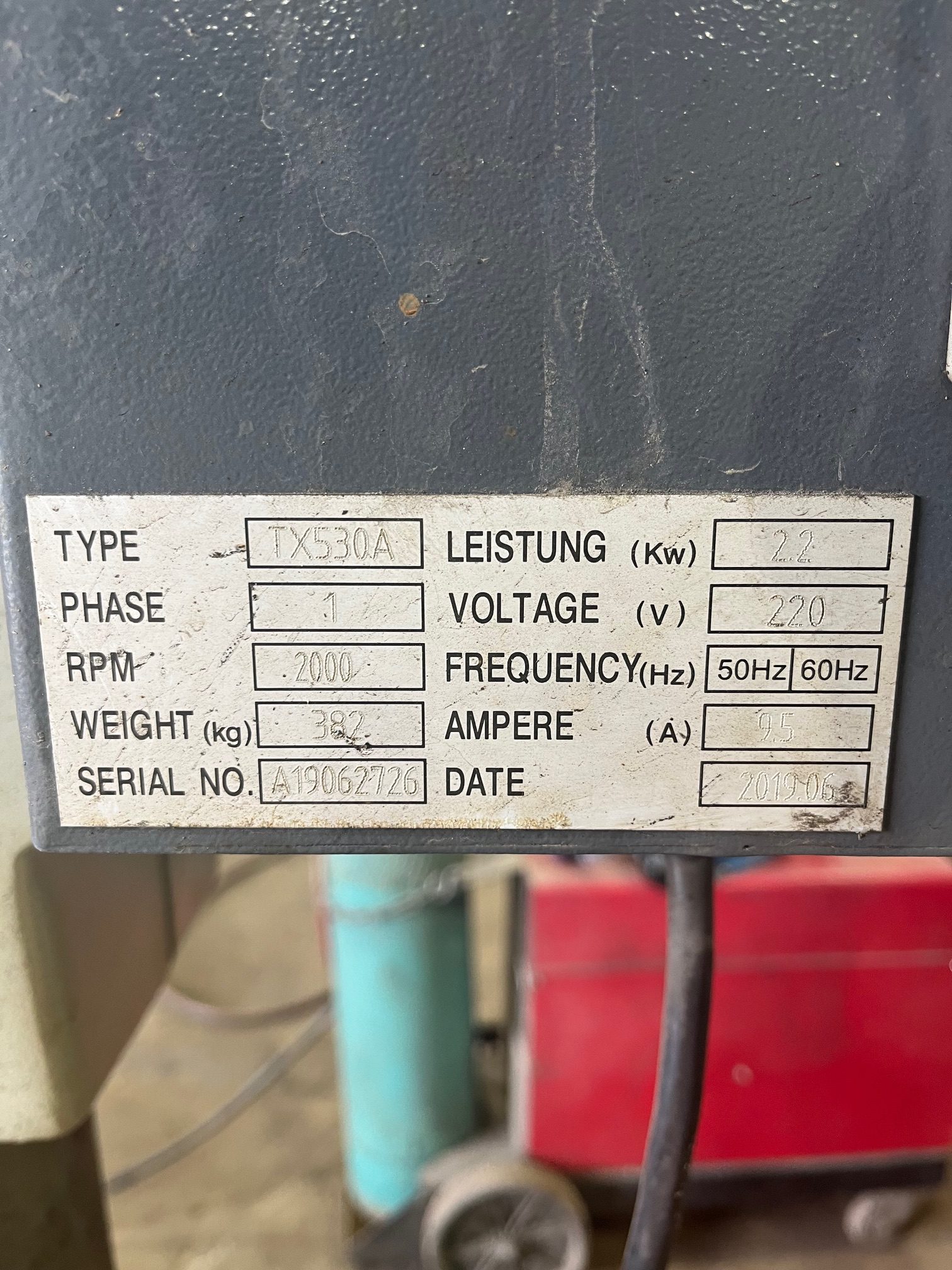

- SERIAL NO : A19062726

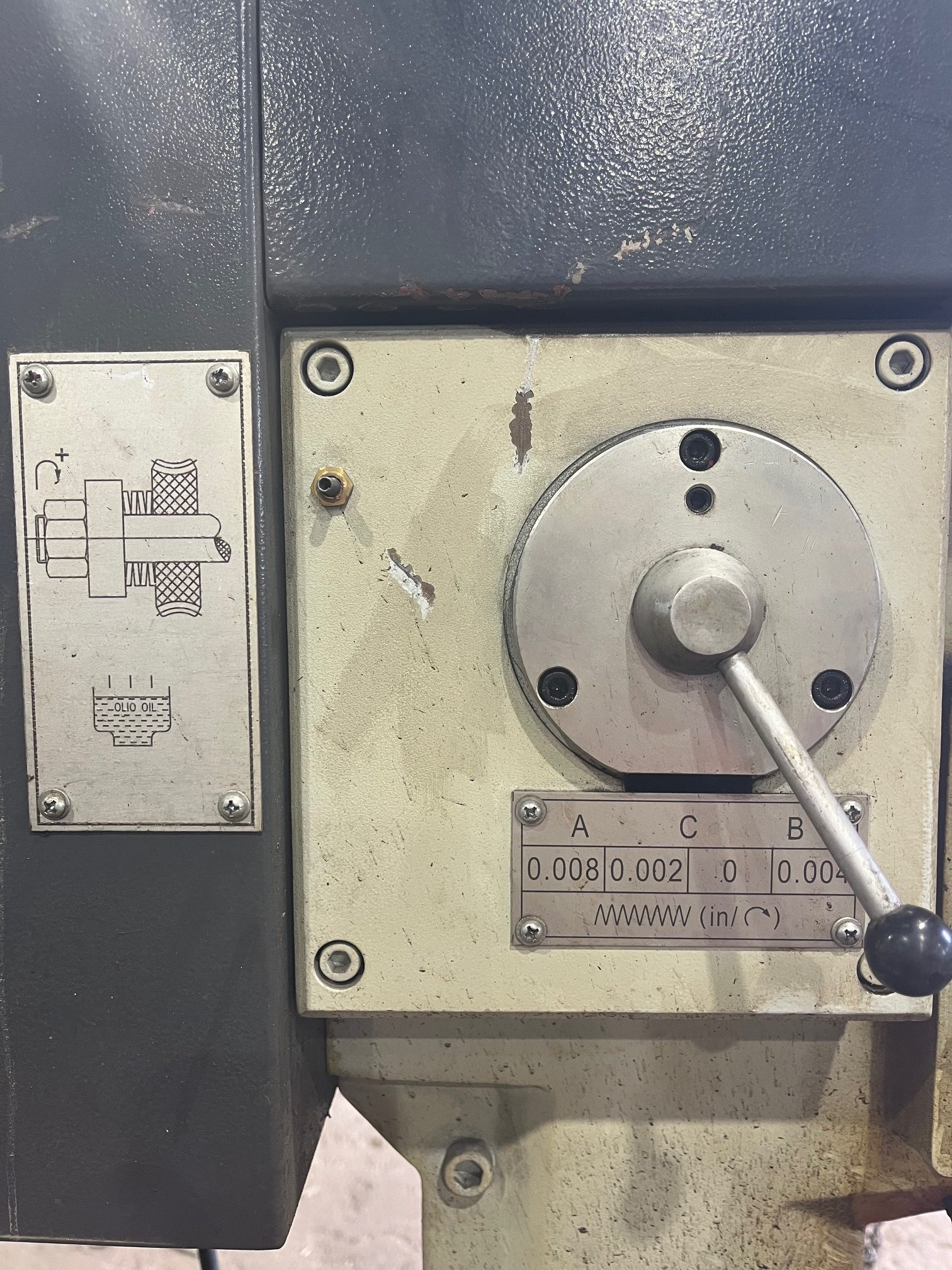

AUTOMATIC FEED (3): 0.008 , 0.004 , 0.002 “/REV

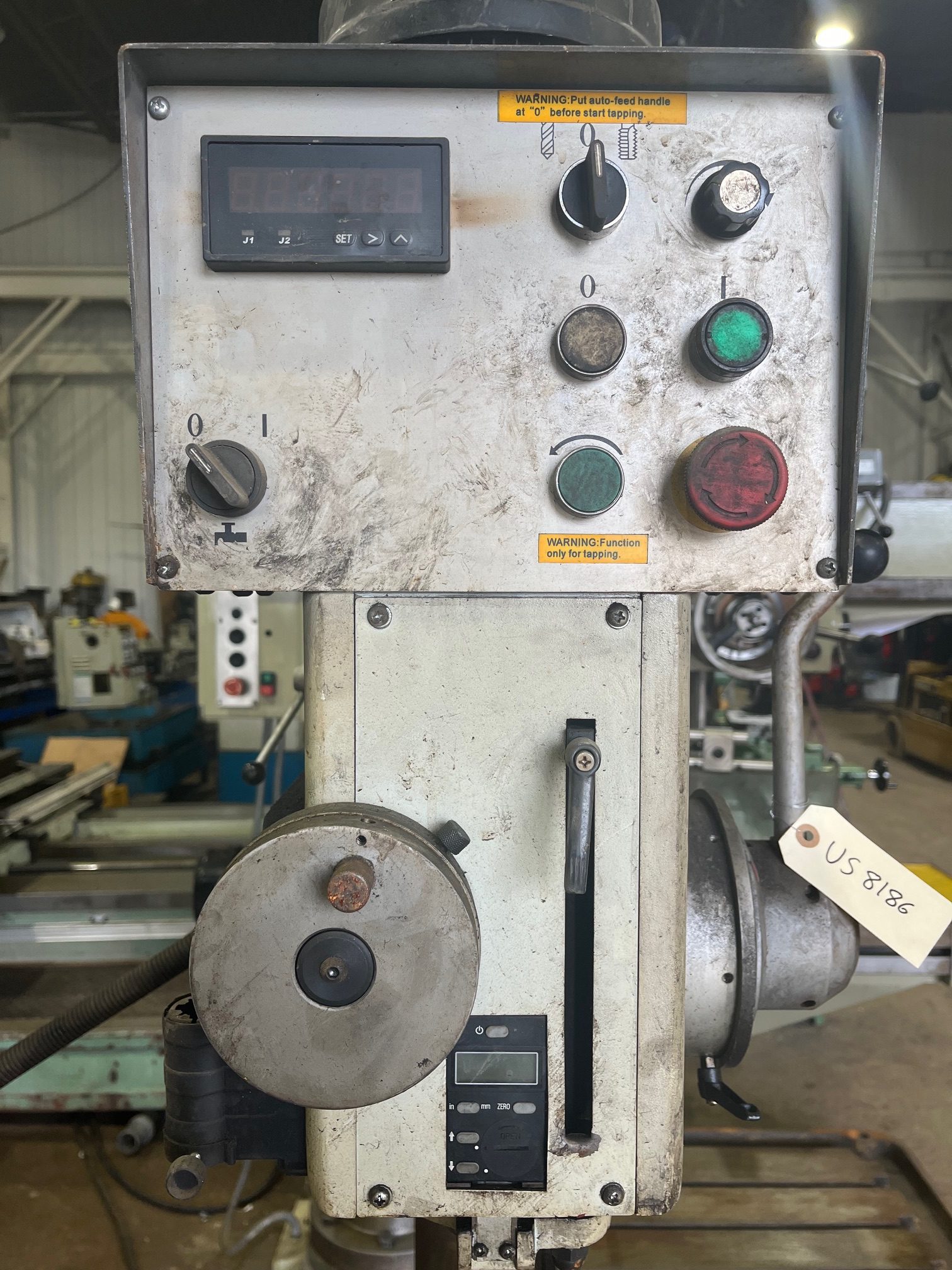

DIGITAL DISPLAY OF THE SPEED
LAMP
Dimensions
- OVERALL : 38" X 26" X 90"
Weight
- 1000 LBS
