- Model : RGM-2504 & RGM-3004
- Capacity : 4MM||4MM
- Contrôle : BRL 401.2
- Longueur de travail : 2550MM & 3050MM
- Type : GUILLOTINE
- Speed : 1 @ 29 STROKE/MIN
- Voltage : 575V / 3 PHASES
- MANUAL BLADE GAP ADJUSTMENT

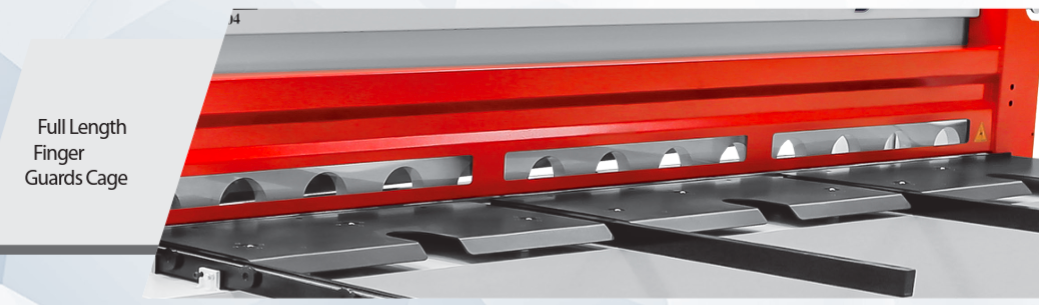

- FULL LENGHT FINGER GUARDS CAGE

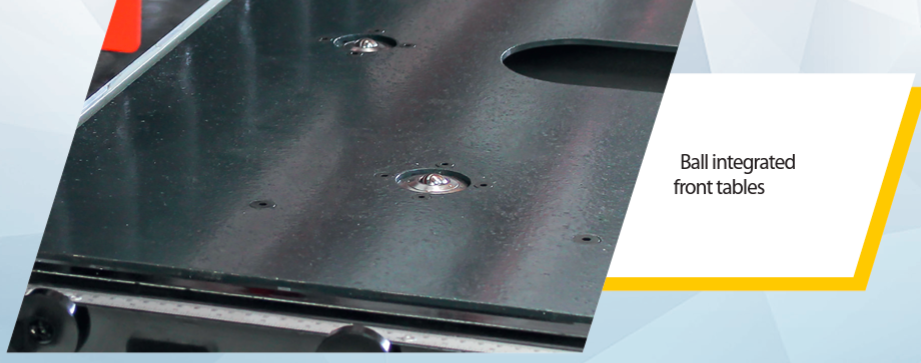

- BALL INTEGRATED FRONT TABLES

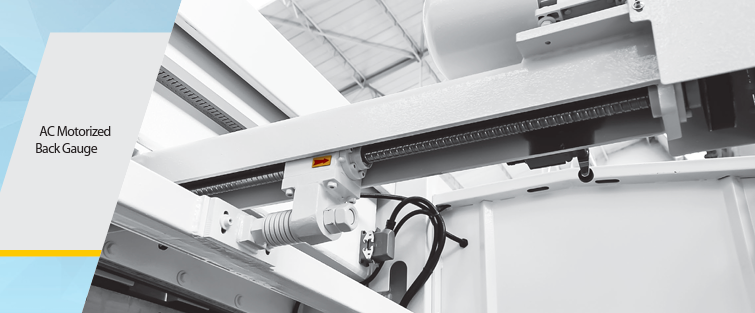

- AC MOTORIZED BACK GAUGE (700MM)

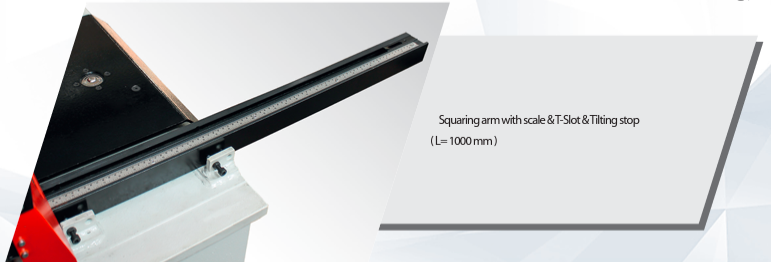

- SQUARING ARM WITH SCALE & T-SLOT & TILTING STOP (1000MM)
- SUPPORT ARMS (3X)

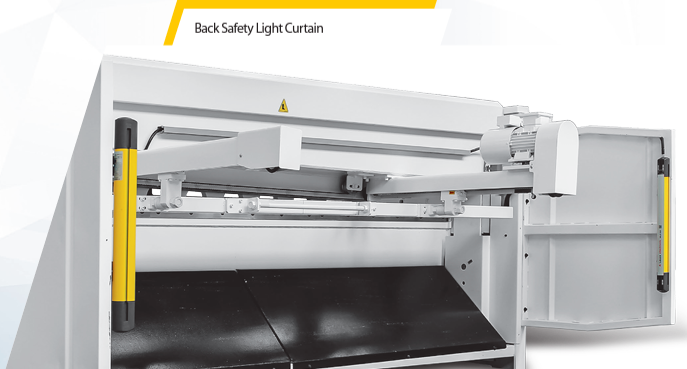

- BACK SAFETY LIGHT CURTAINS
- FOOT PEDAL WITH EMERGENCY STOP BUTTON
OPTIONAL FEATURES
- ELGO P40T CONTROL UNIT

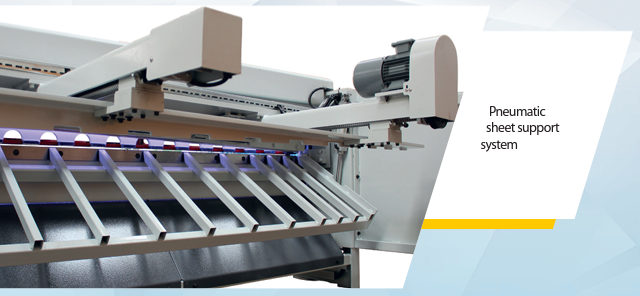

- PNEUMATIC SHEET SUPPORT SYSTEM(BACK)

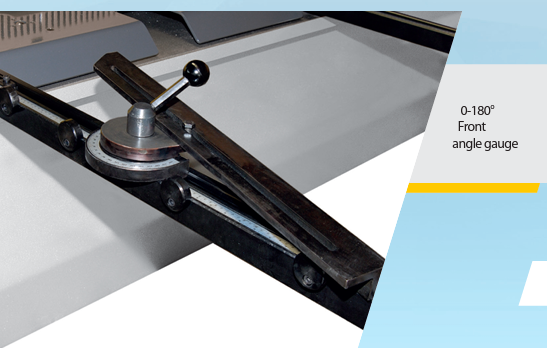

- 0-180° FRONT ANGLE GAUGE
MANUFACTURER WEBSITE LINK: https://www.hilalsan.com.tr/en/products~4/guillotine-shears~8
Weight
- 3950 KG
