- Product No : US8190

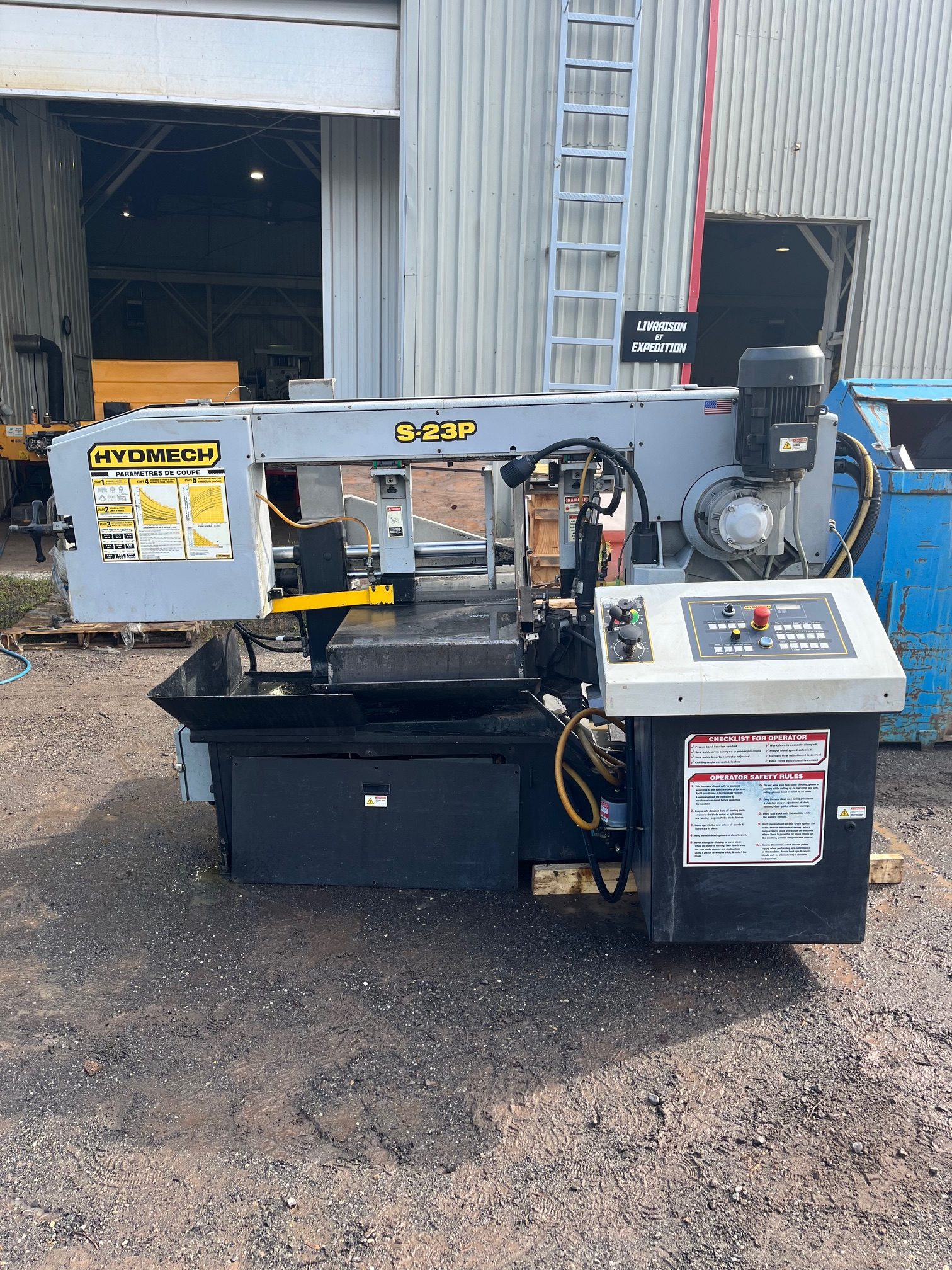

- Model : S-23P
- Type : SEMI-AUTOMATIC
- WORKING HEIGHT : 33"
- BLADE DIMENSIONS : 1"1/4 X 16' 10"
- BLADE SPEED : 75~350 SFT/MINUTE
- MOTOR : 11 HP
- Voltage : 575V / 3PH

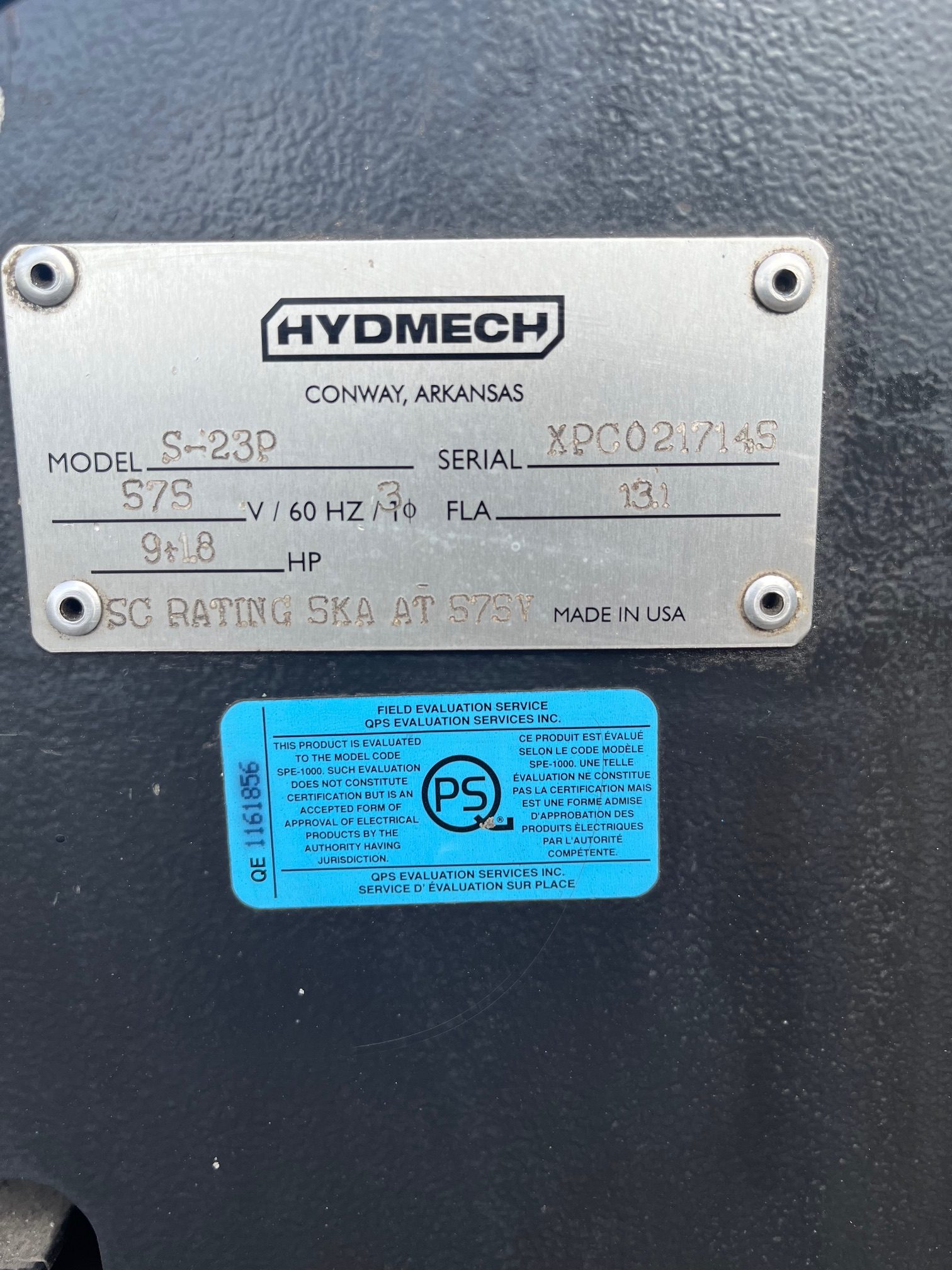

- N. de série : XPC0217145
CUTTING CAPACITY:
90°: ROUND/SQUARE= 16″ RECTANGLE= 16″ X 20″
45°: ROUND/SQUARE= 14″ RECTANGLE= 16″ X 14’’
30°: ROUND/SQUARE= 9.5″ RECTANGLE= 16″ X 9.5″

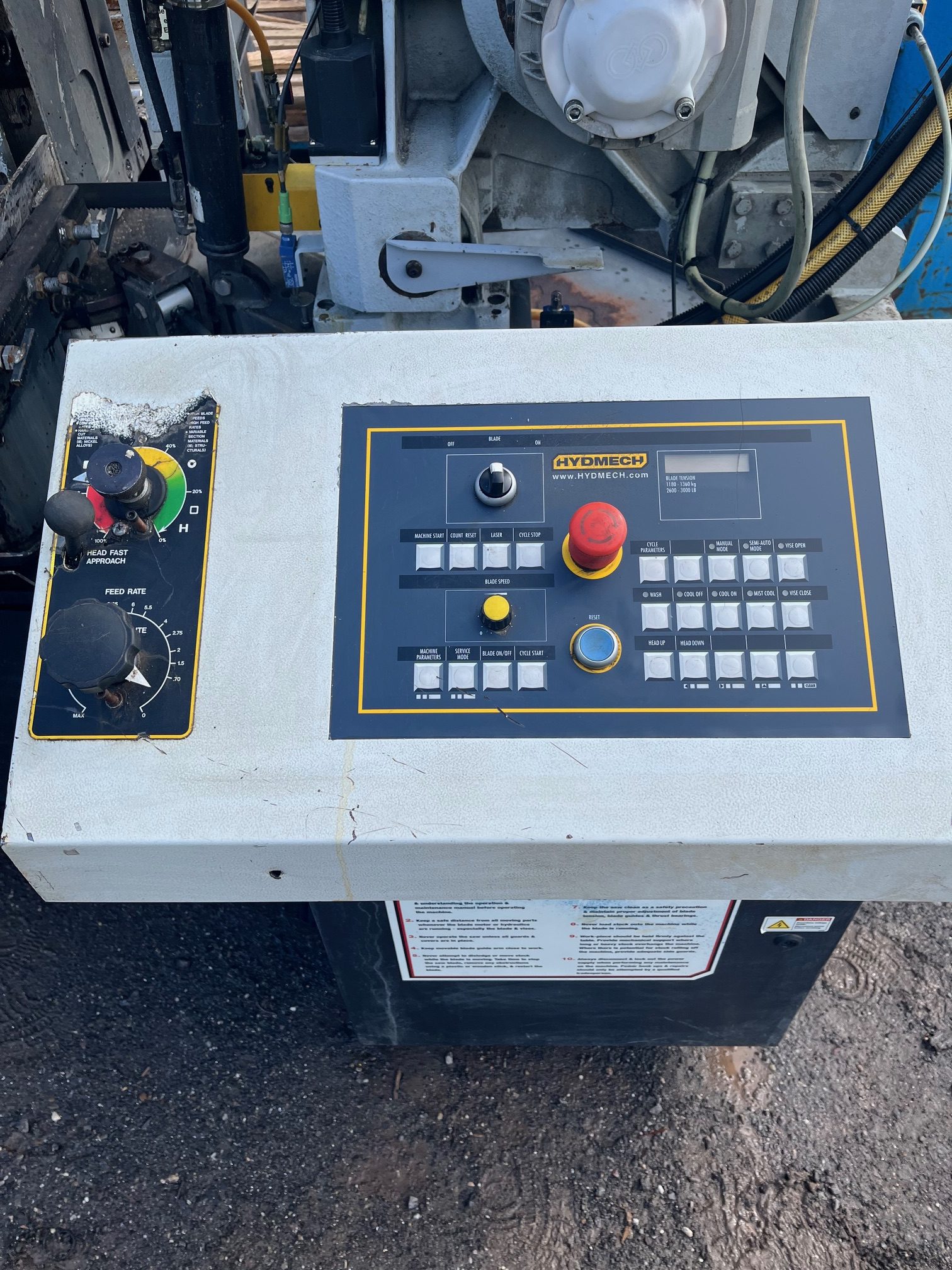

BLADE SPEED, VISE CLAMPING, AND ASCENT OF THE HEAD ALL CONTROLLABLE ON THE OPERATOR’S PLC
CAST IRON HEAD
COOLANT PUMP
Dimensions
- HEAD DOWN : 101" X 80" X 61"
Weight
- 2900LBS
