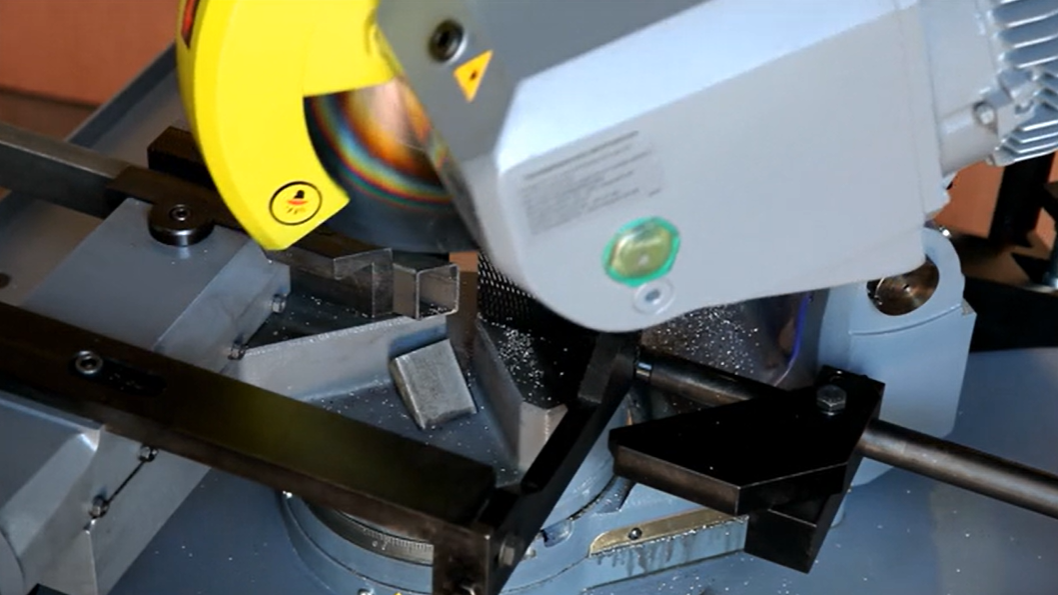

CUTTING CAPACITIES:

ROUND: 90°= 90MM (3.5″) | 45°= 85MM (3.3″)

SQUARE: 90°= 80X80MM (3.15″) | 45°= 70X70MM (2.75″)

RECTANGLE: 90°= 110X60MM (4.3″ X 2.3″) | 45°= 80X50MM (3.15″ X 2″)

CHARACTERISTICS:

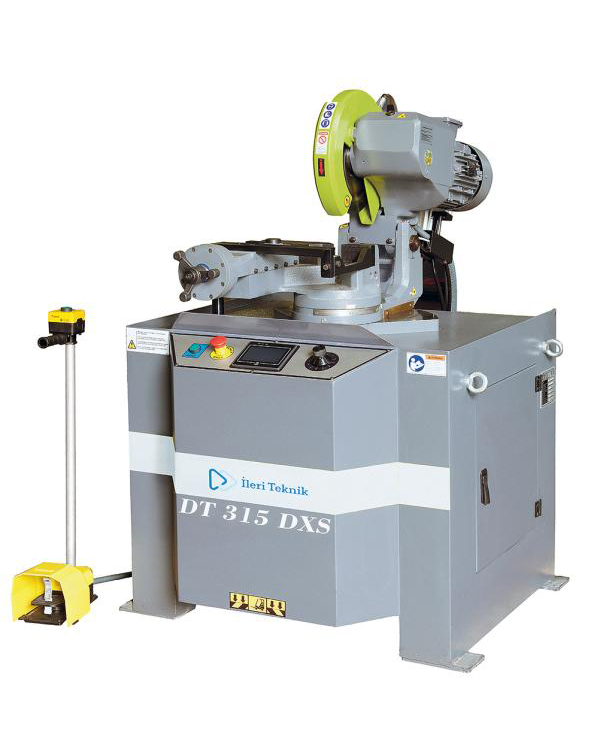

Semi-automatic mitre cutting circular saw designed for
fast cutting,
AUTOMATIC ANGLE AJUSTMENT 45° LEFT/RIGHT
High production rates, ideal for short batch runs,
Standard micro-spray coolant system,
PLC controlled color type touch screen display,

Program save and load ability,
Heavy duty gearbox,

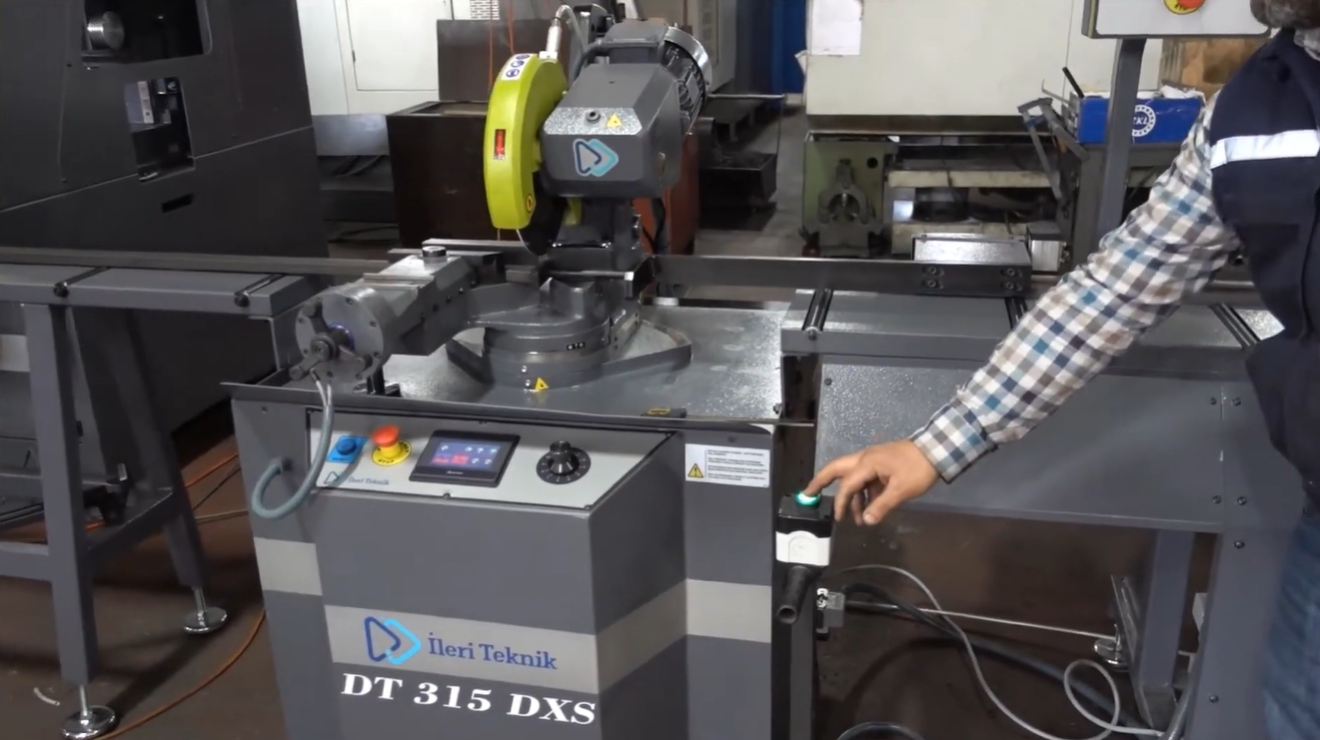

Foot and button switch actuation
Hydro-pneumatic operation of saw head smoothes
descent for optimum cut
Cutting speed regulator
Adjustable head stroke

INSTRUCTION MANUAL

AVAILABLE OPTIONS:

LOW SPEED MOTOR (22-44 RPM)

VARIABLE BLADE SPEED WITH INVERTER ( 20 ~ 80 RPM)

MATERIAL SUPPORT ROLLER
