- Product No : USM
- Model : JIH-20 36

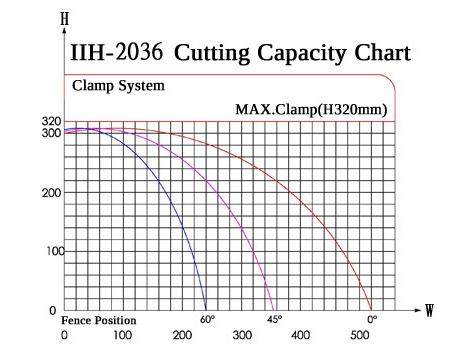

- Capacity : 90°:12"X20", 45°:12"X13½", 60°:12"X9½",
- Diamètre : LAME: 36" x 1.96"||LAME: 36" x 1.96"
- Work Height : 48"
- Longueur de travail : 49½2 × 24¾"
- Motor : 10 HP
- Speed : 936 tr/min (60 Hz) 862 tr/min (50 Hz)
- Voltage : 240V / 3PH
- Mover clamping system on linear guide, (stable clamping)

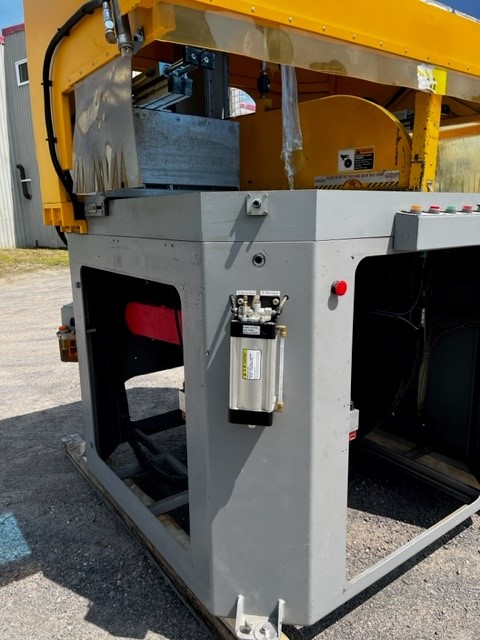

- The clamping system is controlled by an independent pneumatic cylinder
- (1+2 function: the clamping pressure can be adjusted at will according to the workpiece type, which prevents damage to the workpiece due to overpressure)
- Adjustable clamping height
- Adjustable clamping speed
- Adjustable cutting speed
- (function 4 + 5 + 6: depending on the type of workpiece to adjust the clamping height and speed and the cutting height and speed)
- The precisely controlled oil mist system greatly improves the lubricating and cooling effect, while minimizing trouble.
- The handle for a practical and easy to fix work table.

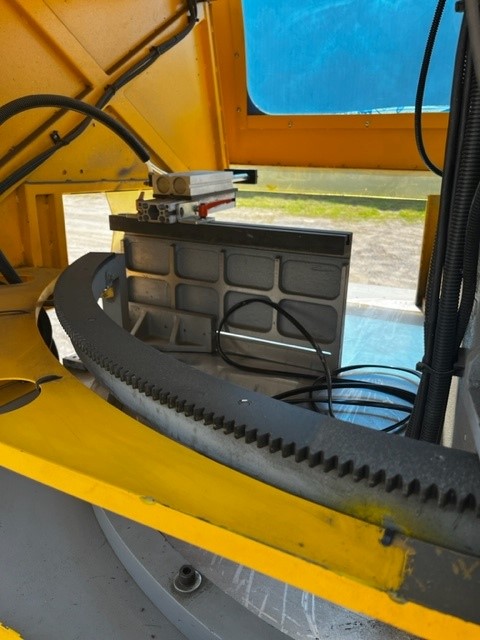

- Grab Handle for Angular Rotating Worktable (±0~45 degree)
- Quick positioning button
- It provides lubricating and cooling functions, ensuring no dust and saw blade deposition, high cutting precision and long saw blade life.
**************SALE PRICE***$30,000****************
Weight
- 2300 KG
