SPECIFICATIONS:

-Laser Resonator: IPG

-Laser Head: RayTools with autofocus

-Positioning Acceleration: Max. 1.5G

-Positioning Accuracy: ±0.05mm/m (Repositioning accuracy: ±0.02mm/m)

-XYZ Servo Motors: X: 2 x 2900W / Y: 1 x 850W / Z: 1 x 750W

-Gearbox: Gudel (Germany) high-precision gear and reducer

-Electrical Components: Schneider Electric (France) / Weidmuller (Germany) / Mitsubishi (Japan)

-Air Assist: Oxygen or Nitrogen

-COOLING SYSTEM: TEYU OR SIMILAR

OTHER CHARACTERISTICS:

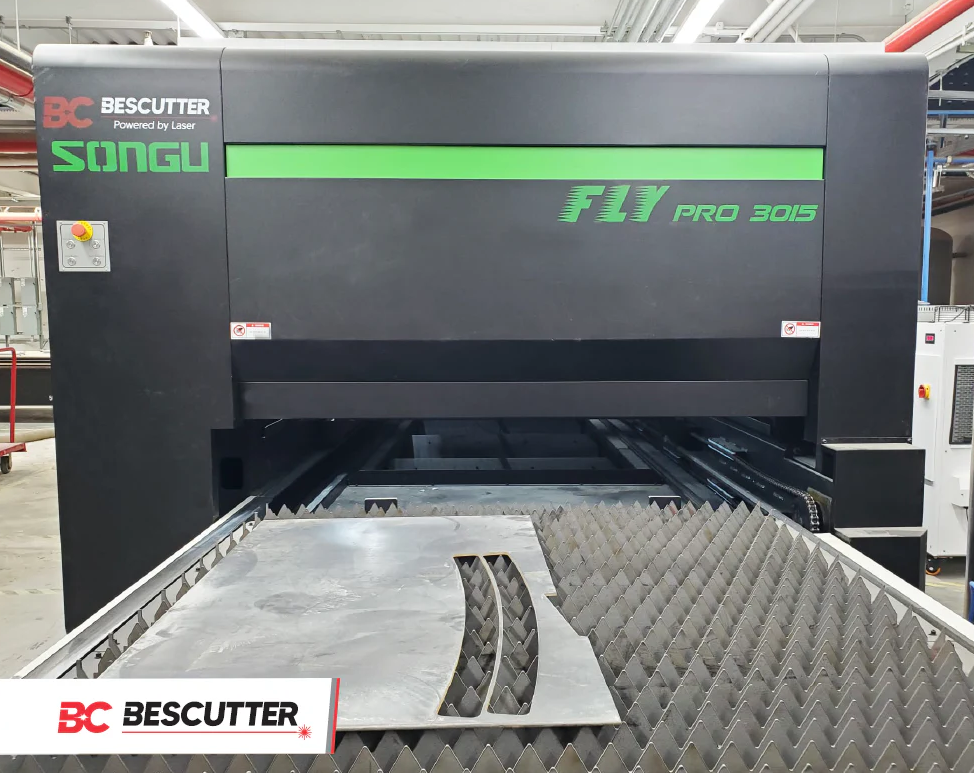

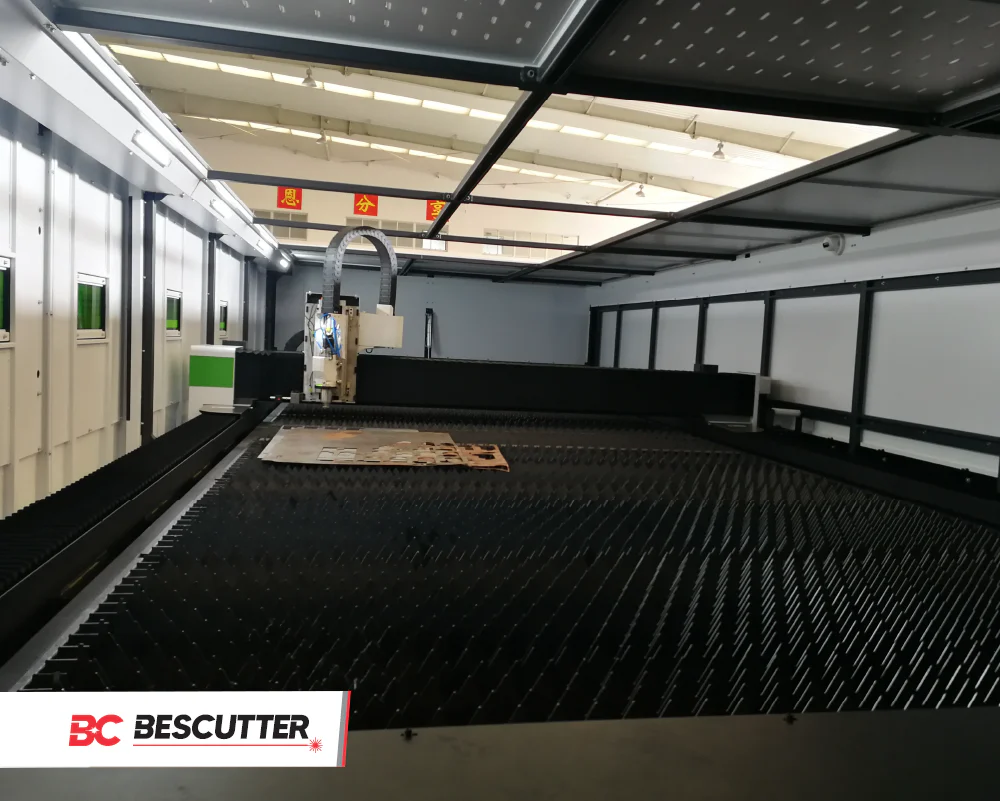

-PARALLEL SHUTTLE TABLE

-FOR BETTER ACCESSIBILITY, THE FRONT DOOR IS ON THE Y AXIS

-AUTOMATIC ENERGY SAVING MODE

-Dual drive structure, high precision, Swiss GUDEL reducer and German Rexroth guide rail system, providing low transmission error, high precision and good dynamic performance

AVAILABLE OPTIONS:

-CUTTING TABLE: 6.5′ X 19.5′ | 8′ X 19.5′

-IMPROVED DUST COLLECTOR SYSTEM WITH FILTRATION

-CYPNEST NESTING SOFTWARE
