- Product number : NFBC-GORILLA

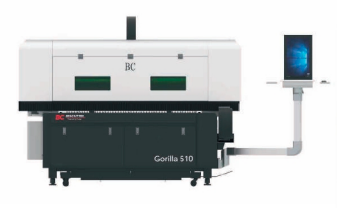

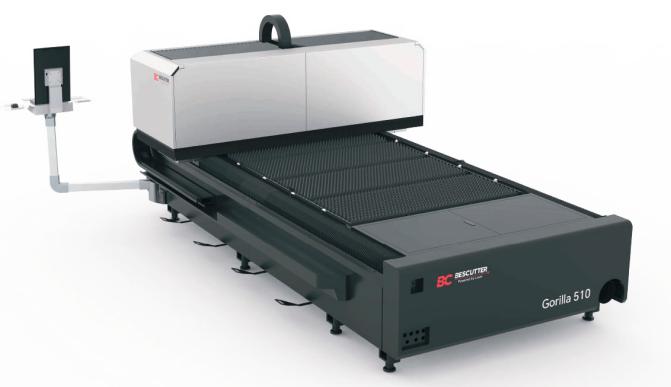

- Model : GORILLA
- Type : laser fibre
- Capacity : 6000KW TO 20000KW
- CUTTING TABLE DIMENSIONS : 5' X 10'
- SPEED : 262'/MIN
- CONTROL SOFTWARE : CYPCUT BCS 100
SPECIFICATIONS:
-Laser Resonator: HAN’S PHOTONIC
-Laser Head: RAYTOOLS WITH AUTOFOCUS
-Positioning Acceleration: 0.8G
-Positioning Accuracy: ±0.05mm/m
-Repositioning accuracy: ±0.02mm/m
-XYZ Servo Motors: X: 1 x 1000W / Y: 2 x 1500W / Z: 1 x 400W
-Electrical Components: SMC ELECTRIC
OTHER FEATURES:
-High-Quality X, Y Rack, and pinion: RETTERSEN (GERMANY)
-PneumaTIC Control: SMC
-Industry Computer: LENOVO
-WATER CHILLER: TEYU CWFL-6000
-ENERGY CHAIN: IGUS (GERMANY)
Weight
- 9500 LBS
