- Product number : NFBC-SC

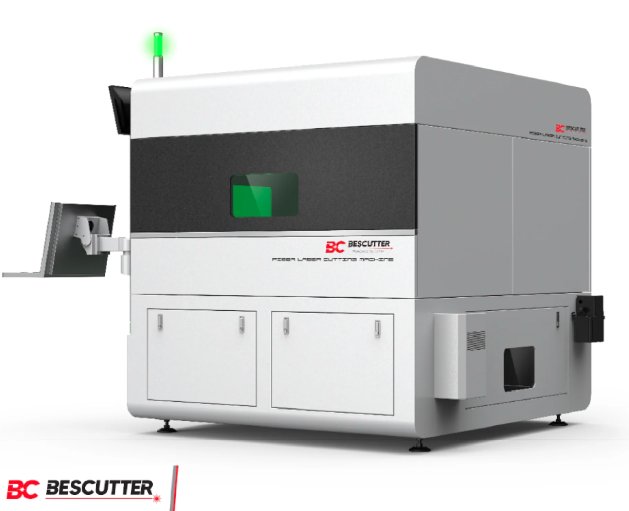

- Model : SMART CUBE
- Type : LASER FIBRE
- AVAILABLE POWER : 1500W / 2000W / 3000W / 4000W / 6000W
- CUTTING TABLE DIMENSIONS : 5' X 10'
- CONTROL SYSTEM : CYPCUT BCS 100
Specifications:
-Laser Resonator: IPG
-Laser Head: RayTools
-Maximum Speed: 55″/SEC
-Positioning Accuracy: ≤0.05mm/m
-Repeatability: ≤0.02mm/m
-XYZ Servo Motors: Schneider or Delta (X: 1 x 1000W / Y: 2 x 1500W / Z: 1 x 400W)
-Electrical Components: Schneider Electric
Other Features:
-Compact and enclosed design
-High-quality rack and pinion guide rails
-Special aircraft-grade cast aluminum gantry
-Automatic lubrication system
AVAILABLE OPTIONS:
-CYPNEST NESTING SOFTWARE
Dimensions
- : 85” L x 91” W x 83”H (2150x2300x2120 mm)
Weight
- 5500 lbs
