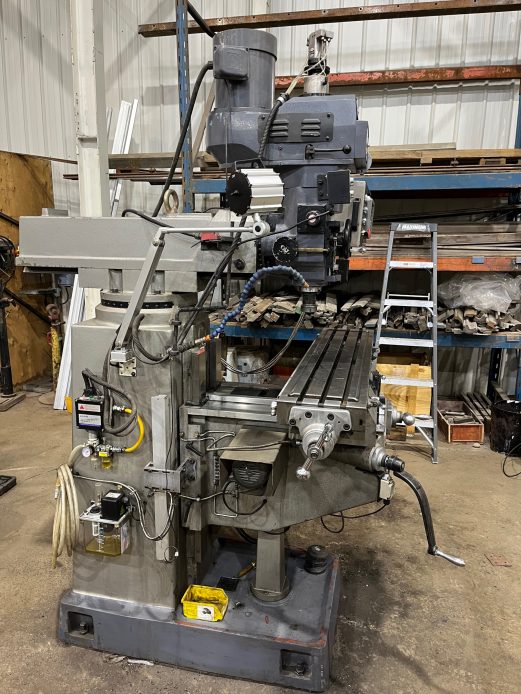

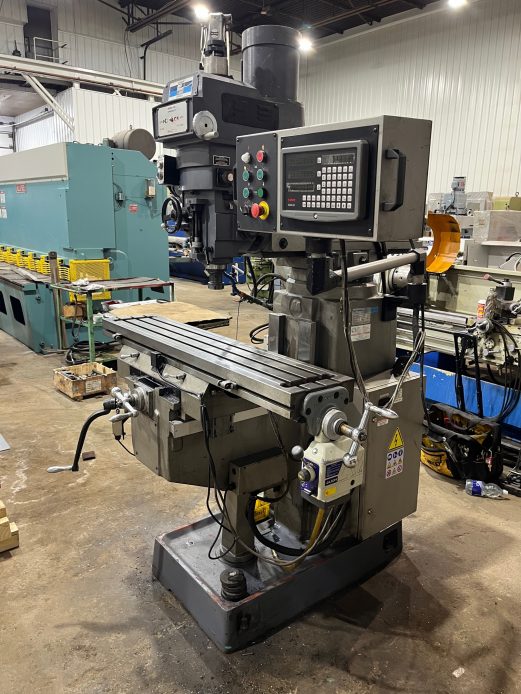

- Product No : US8169

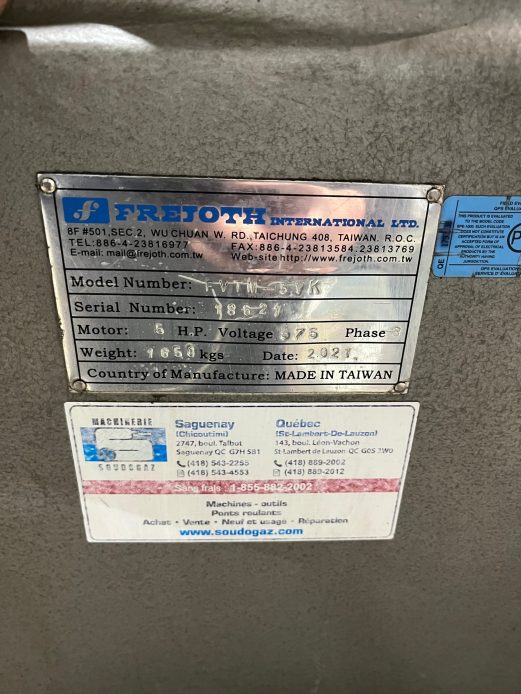

- Model : FVTM-5VK
- TYPE : CONVENTIONAL, KNEE TYPE
- AXIS TRAVEL : X: 30.5'' / Y: 16'' / Z: 18''
- QUILL TRAVEL : 5"
- TABLE DIMENSIONS : 10" X 50''
- TABLE CAPACITY : 900 LBS

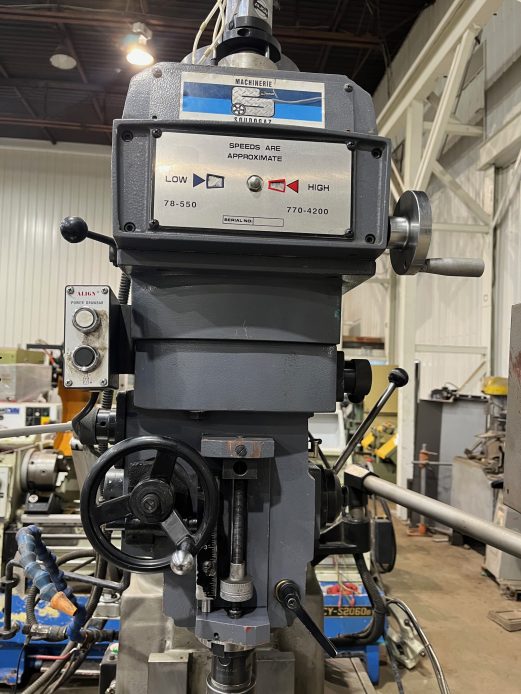

- SPEED : 60 ~ 4200 RPM (INFINITLY VARIABLE)
- Attachement : NT-40

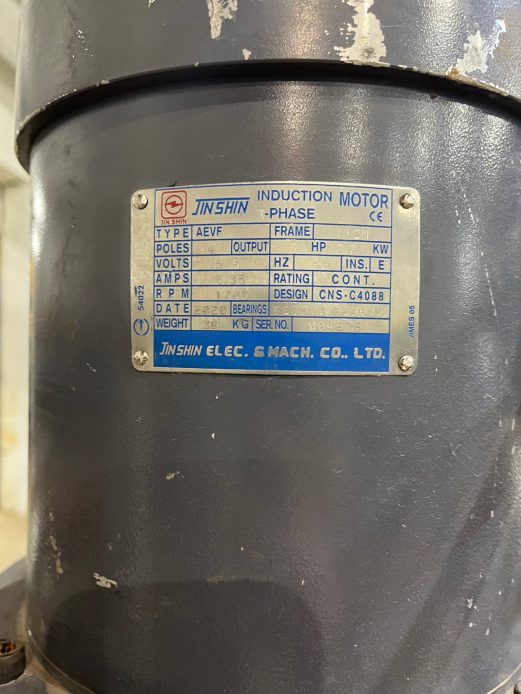

- Motor : 5 HP
- Voltage : 575V / 3PH
- Année : 2021
- # SÉRIE : 18621
COMPONENTS AND ACCESSORIES:
-Automatic lubrication system
-Independent control mounted on a cantilever
-Deluxe electrical box and isolated switch

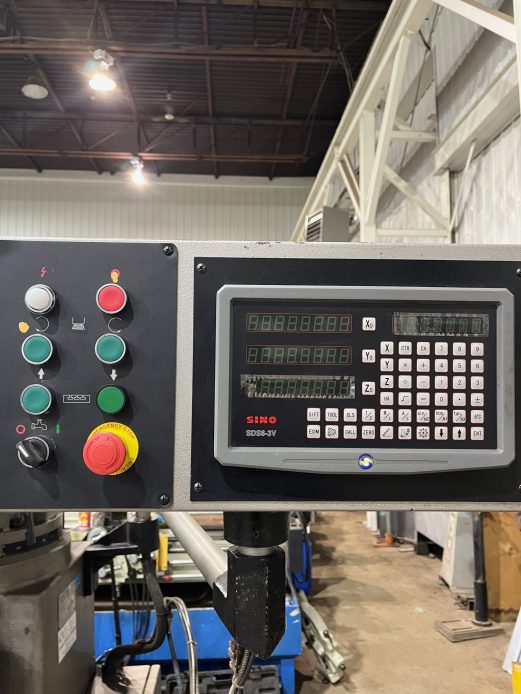

-Installed 3-axis Sino digital readout
-Left/right tilting head
-Cooling system
-Recovery tray
-Halogen lamp
-Motorized feed on X and Z axes with rapid feed on X axis
-3 AUTO QUILL FEED SPEEDS
-Pneumatic tool retention system (DRAWBAR)
-ER40 COLLET CHUCK
Dimensions
- OVERALL : 69" X 75" X 93"
Weight
- 3,600 LBS
