- Product No : NFPIL-ARG500+SAF
- Model : ARG 500 PLUS S.A.F
- Type : HYDRAULIC SEMI-AUTOMATIC
- WORKING HEIGHT : 870 MM
- BLADE SPEED : 15-90 m/min. (VARIABLE)
- BLADE : 6040 X 41 X 1.3MM
- MotOr : 5.3HP
- Voltage : 575V / 3 PHASES
CUTTING CAPACITIES:

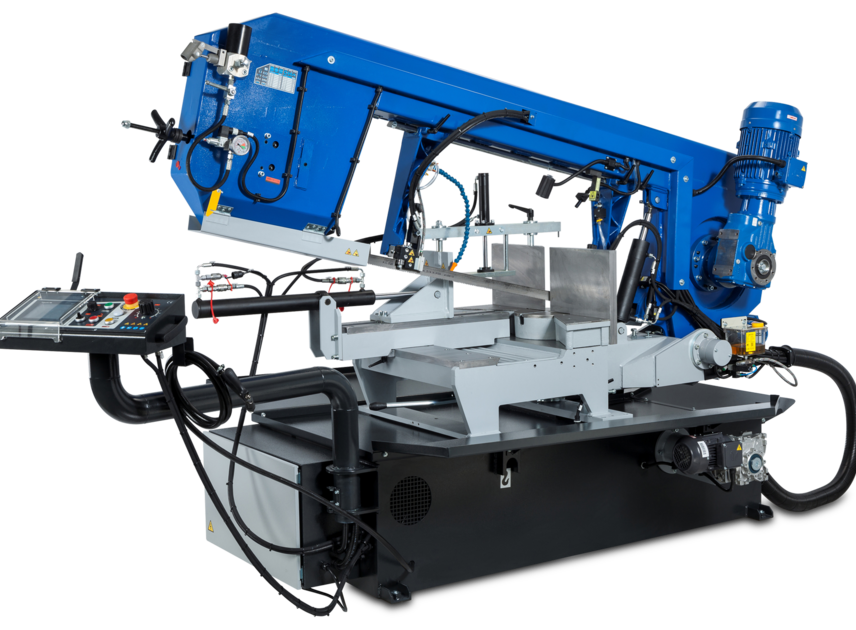

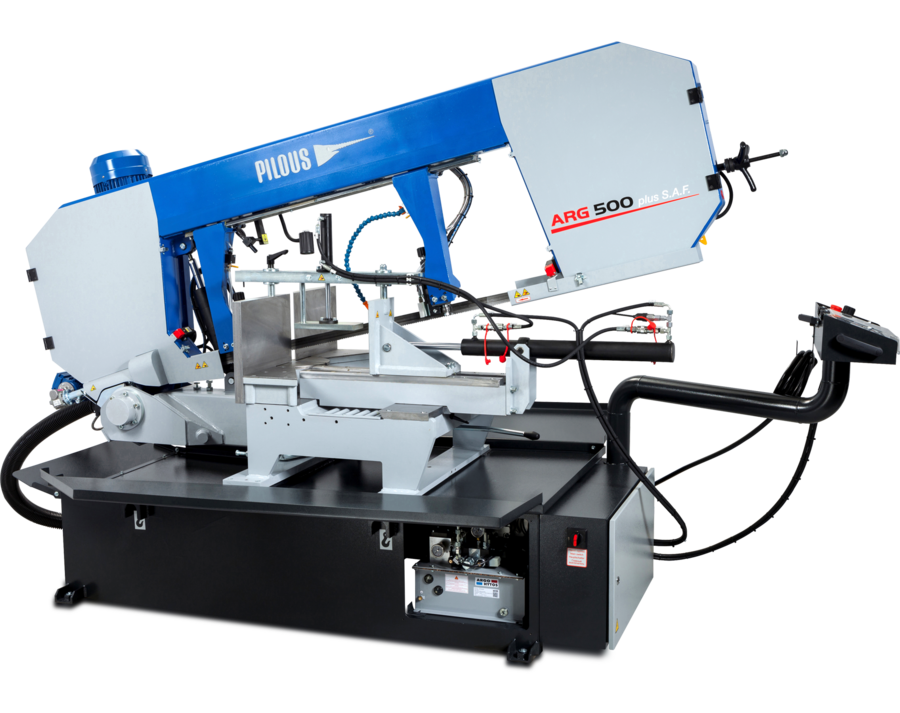

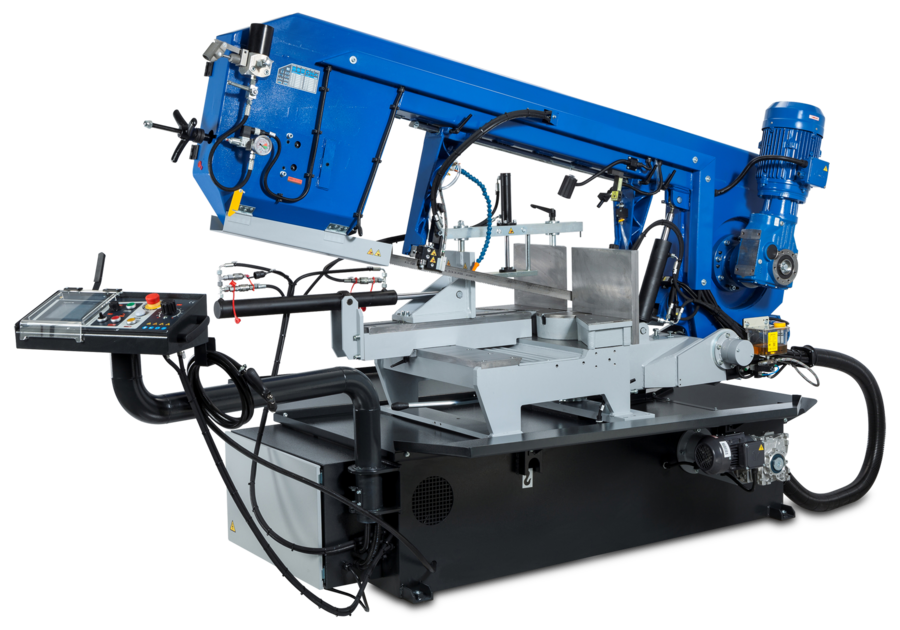

The PILOUS ARG 500 Plus S.A.F. is a semi-automatic horizontal band saw designed for high-capacity and precision cutting of ferrous and non-ferrous metals. Built for industrial use, this machine combines durability, accuracy, and operator safety, making it ideal for demanding metal fabrication shops.
With a robust cast-iron arm, large cutting capacity, and advanced hydraulic controls, the ARG 500 Plus S.A.F. ensures fast, smooth, and repeatable cuts across a wide range of material types and profiles—including solid bars, pipes, and structural steel.
Dimensions
- OVERALL : 3376 X 2669 X 2760 MM
Weight
- 1530 KG
