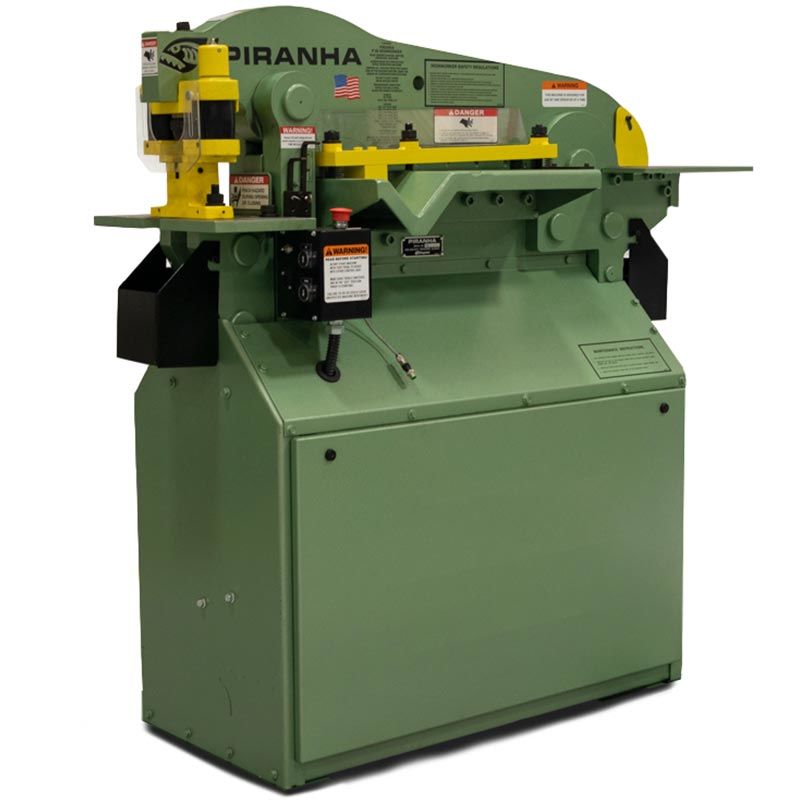

The gold standard. Made in the USA since 1974, the P-Series ironworkers are precision-machined, overbuilt, and engineered for nonstop production. With quick-change tooling, samelevel cutting ergonomics, and unmatched notching ability, Piranha sets the benchmark for performance, reliability, and longevity

CAPACITIES (RATED ON MILD STEEL 60,000 PSI TENSILE) :

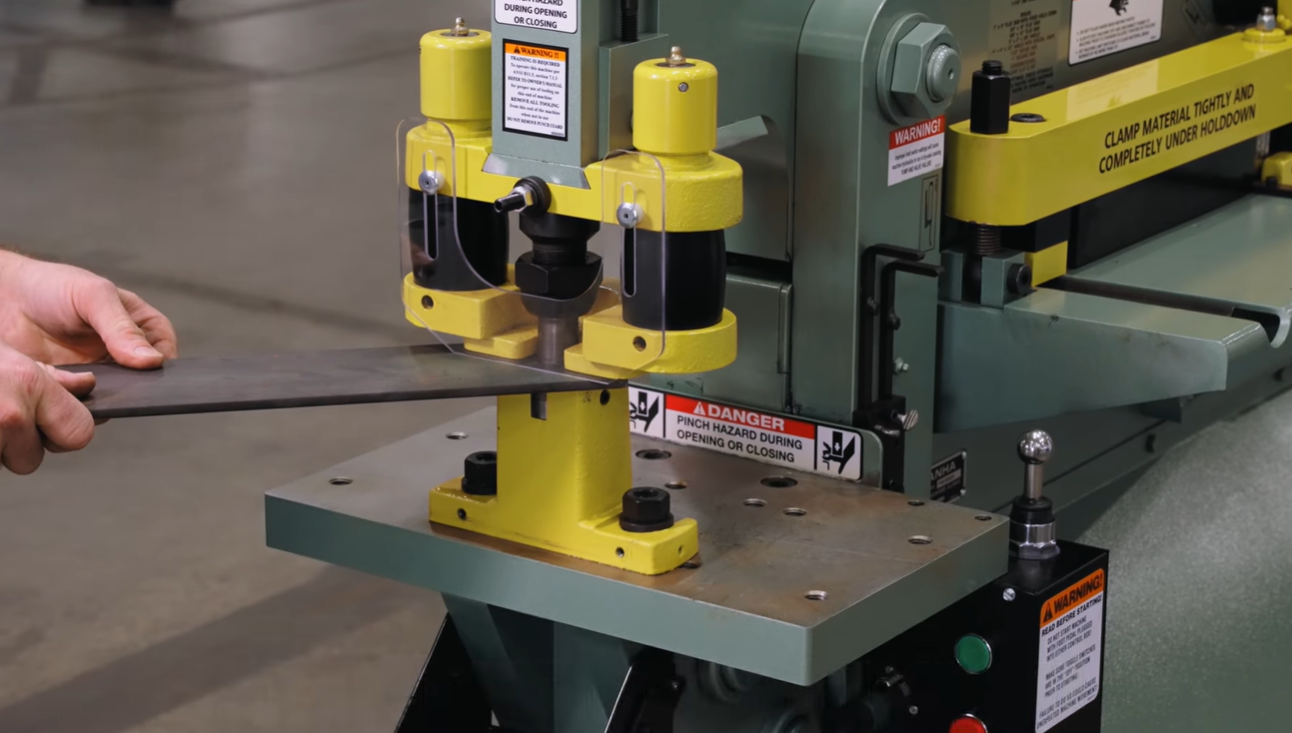

PUNCH:

50 TONS
1-1/16" DIA THRU 1/2"
13/16" DIA THRU 3/4

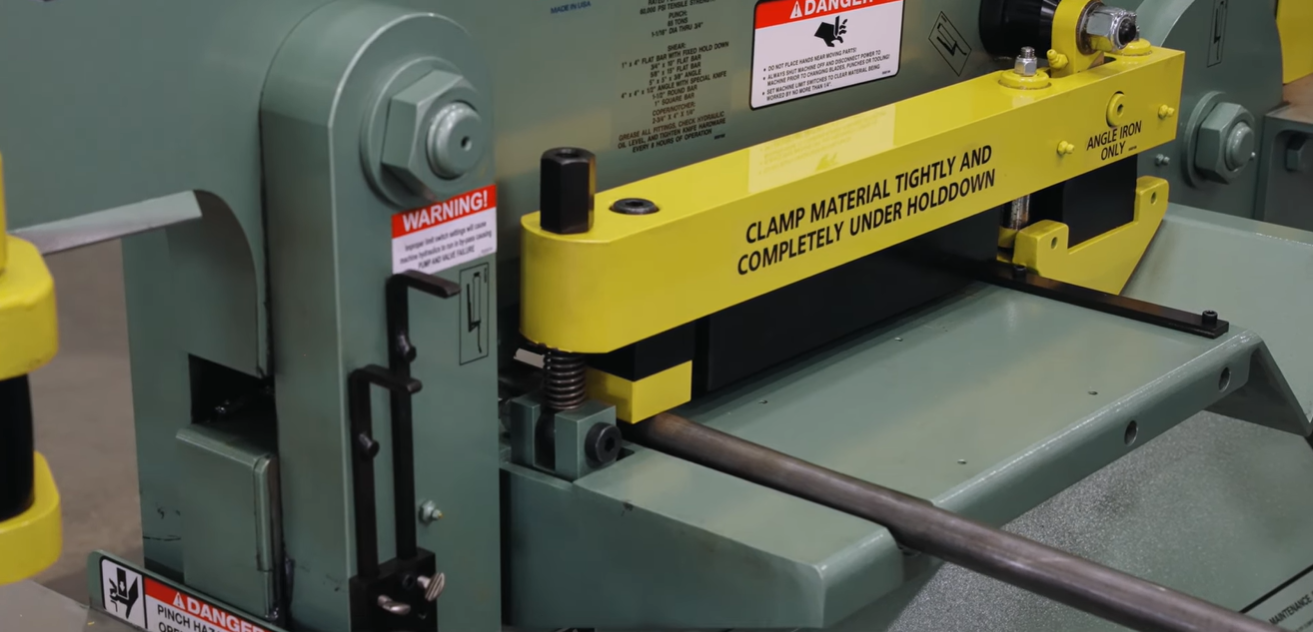

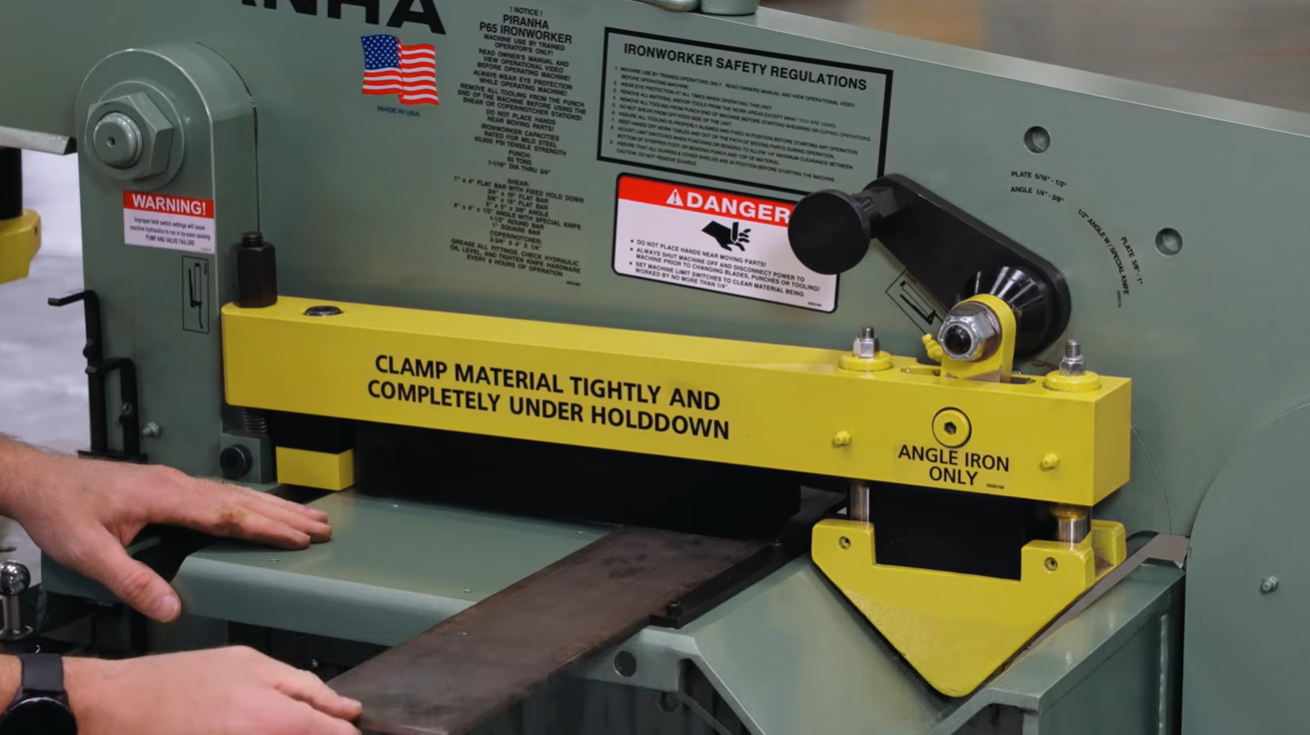

SHEAR:

6" X 3/4 FLAT BAR (FIXED HOLD DOWN)
12" X 3/8" FLAT BAR
10" X 1/2" FLAT BAR
3" X 3" X 3/8" ANGLE
1/4" THRU 1-3/8" ROUND BAR
1/2" THRU 1" SQUARE BAR

COPER/NOTCHER:

2-1/4" X 3" X 1/4"

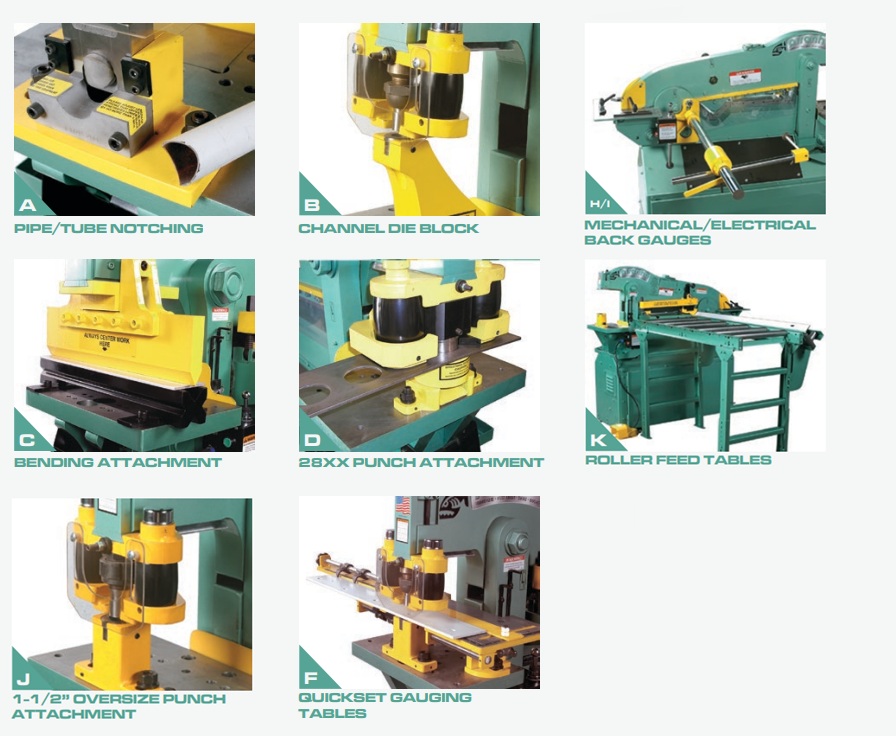

OPTIONS:

-6″ PUNCH AND DIE FOR BENDING

-12″ PUNCH AND 4 WAY DIE FOR BENDING

-CHANNEL DIE BLOCK ATTACHMENT TO PUNCH A HOLE IN THE LEG OR WEB

-OVERSIZED PUNCHING ATTACHMENT

-QUICKSET GAUGING TABLES FOR PUNCHING

-MANUAL SHEARING BACKGAUGE (3′, 6′ OU 9′)

-CONVEYOR

-PIPE NOTCHING ATTACHMENT
