- Product No : US8106

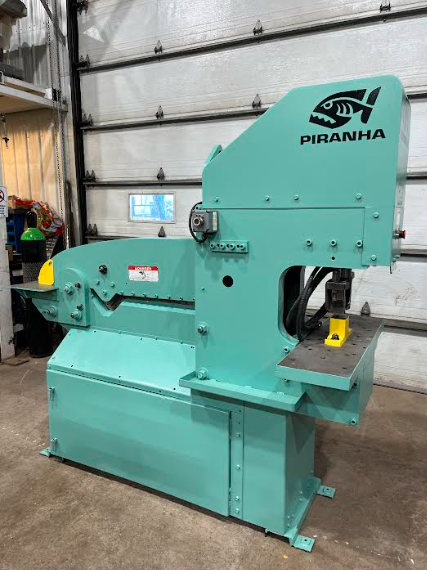

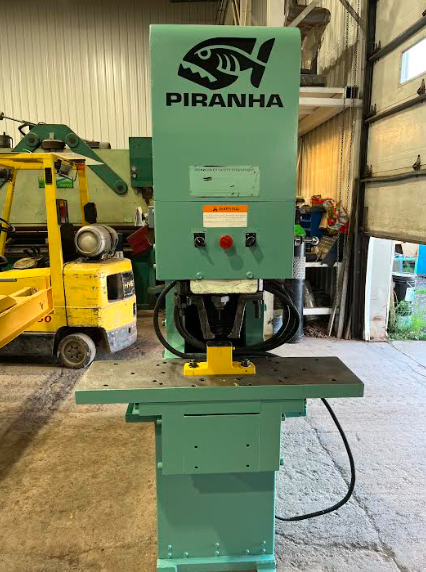

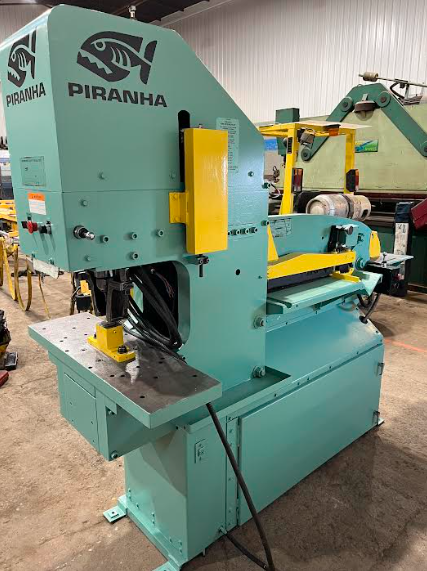

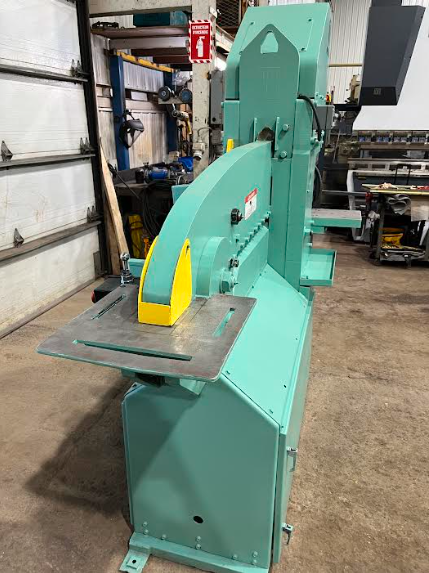

- Model : PII-88
- Capacity : 88 TONS
- Gorge : 9"
- Work Height : 41"
- Longueur de travail : TRAY TABLE : 11"X 38"
- Voltage : 575V/3PH/10HP
- 30′ inlet conveyor
- set of punch and dies included value of $2500

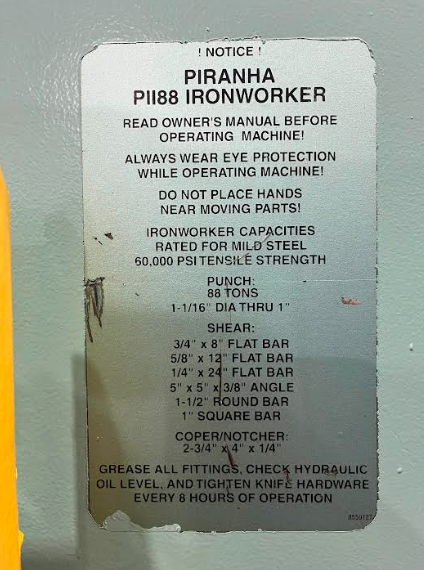

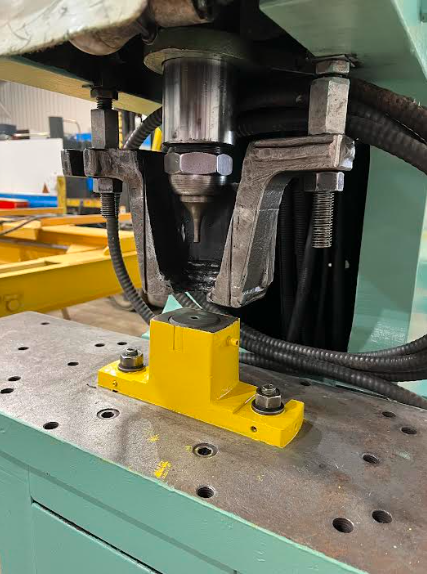

| Punching (88 Tons) | 1-1/16” diameter through 1” plate |
| Throat Depth | 9” |
| Bending (Optional) | 24”, 36”, 48” w/4-way die block |
| Round Bar Shear | 1/4” through 1-1/2” |
| Square Bar Shear | 1/2” through 1” |

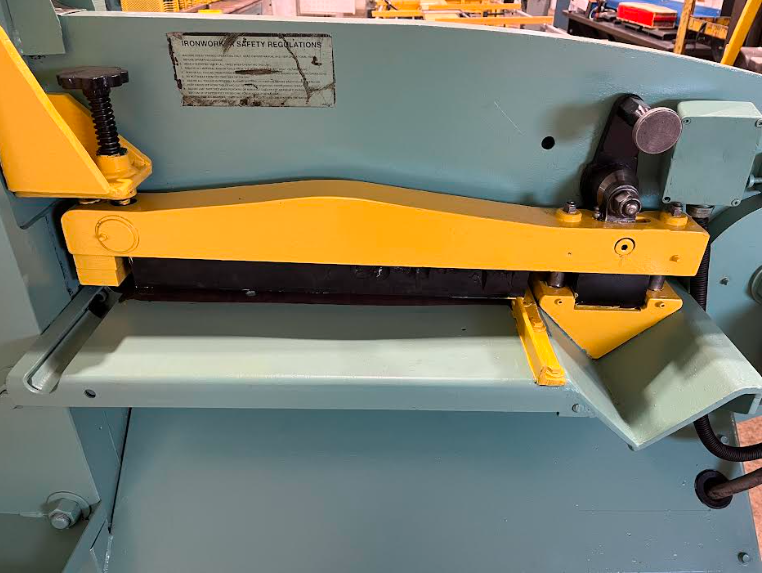

| Flat Bar Shear | 8” x 3/4”, 12” x 5/8”, 24″ x 1/4″ |
| Angle Shear | 5” x 5” x 3/8” |
| Coping/Notching | 2-3/4” x 4” x 1/4” |
Weight
- 4700 LBS
