- Product No : NFAPK-101

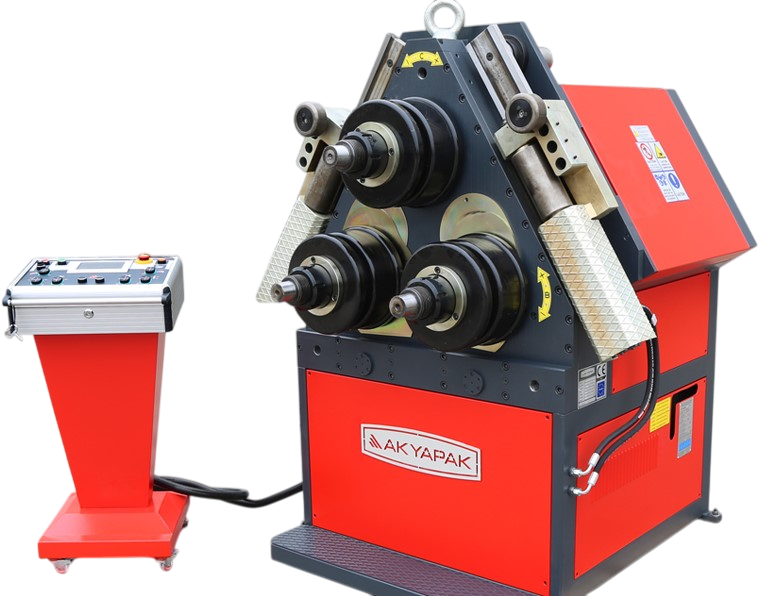

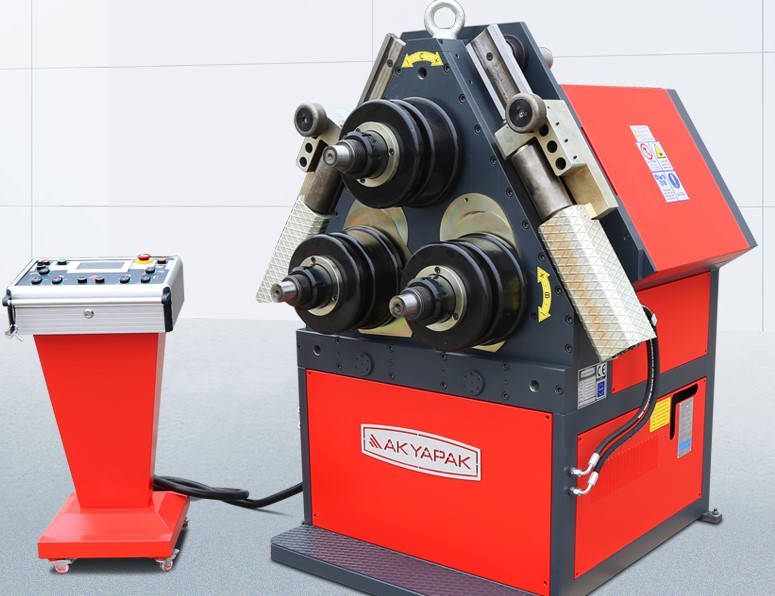

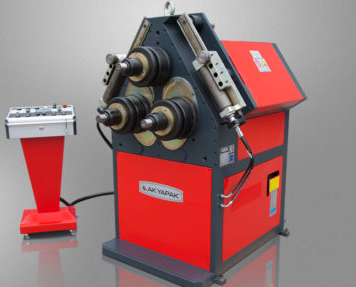

- Model : APK 101
- Motor : 15HP
- Speed : 5.4 M/min
- Voltage : 575V 3PH
Standard Equipments
• Machine body is steel (ST-52) construction
• On APK 101, APK 121 and 150 rolls are driven by a hydraulic motor + planetry
gearbox and gears
• Shafts made of special steel, hardened and grounded

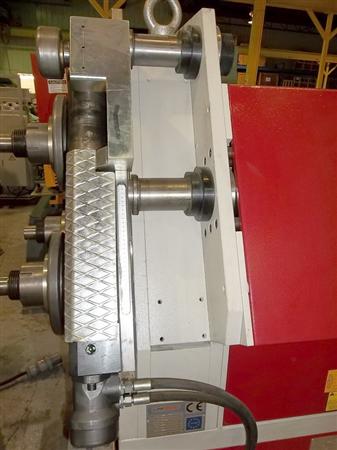

• On APK 101 guide rolls are in one direction manual adjustable
• APK 121 and 150 guide rolls are in two directions hydraulic adjustable
• One set standard rolls
• Manual lubrication
• Lower rolls hydraulic moveable up and down
• Digital display for lower rolls

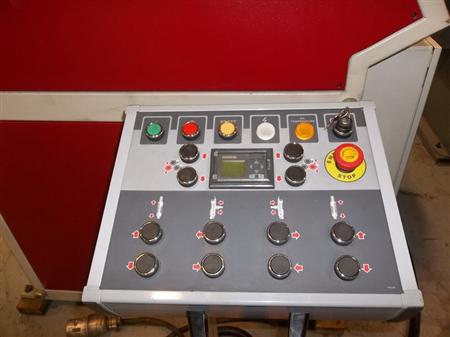

• Separate and moveable control panel
• Horizontal & vertical working
• 400 Volt / 50 hz
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates
-ROLLS SPÉCIAL POUR TUYAUX, TUBE ET PROFILÉ.
-GUIDE ROLLS SPÉCIALS ET AJUSTABLES.
-OUTILS SPÉCIAUX POUR ROULER DU PROFILÉ EN U, I ET H
-DISPOSITIF DE SOUTIENT POUR SPIRAL.
-VITESSE VARIABLE.
-GUIDE ROLLS HYDRAULIQUE AJUSTABLE DEUX DIRECTION.
-LECTEUR DIGITAL POUR GUIDE ROLLS HYDRAULIQUE.
-CONTRÔLE NC.
-CONTRÔLE CNC
Weight
- 2240KG
