- Product No : NFIL-MULTICUT

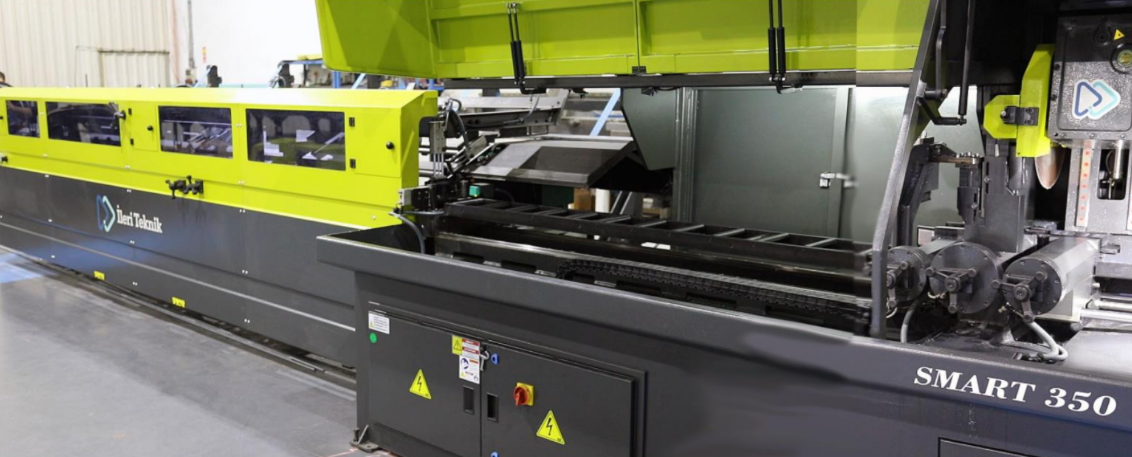

- Model : SMART 350 MULTICUT
- Type : CIRCULAR AUTOMATIC
- BLADE SPEED : 20 ~ 120 RPM (VARIABLE)
- BLADE (MM) : 350X2X32
- FEEDING LENGTH : 69" (WITHOUT REPOSITIONNING)
- Voltage : 400V
CUTTING CAPACITIES:
ROUND: 90°= 3.5″ | 45°= 3.5″
SQUARE: 90°= 3.5″ X 3.5″ | 45°= 3.5″ X 3.5″
RECTANGLE: 90°= 3.5″ X 3.5″ | 45°= 3.5″ X 3.5″

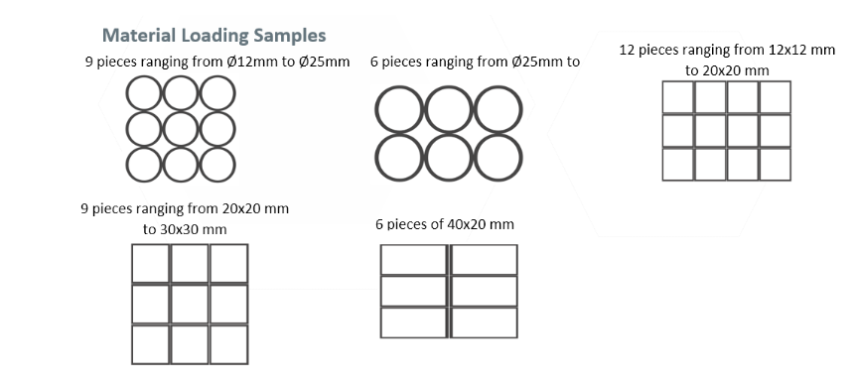

MAKES BUNDLES AUTOMATICALLY (SEE VIDEO)
SWIVEL HEAD 90°
PLC TOUCH SCREEN CONTROLLER
SERVO MOTOR CONTROLLED MATERIAL FEEDING SYSTEM WITH BALL SCREW
SERVO MOTOR CONTROLLED VERTICAL CUTTING SYSTEM WITH BALL SCREW
HEAVY DUTY HELICAL GEAR AND WORM GEAR SETS IN GEARBOX
HARDENED ROLLER TYPE LINEAR GUIDES FOR THE HEAD DESCENT
BACKLASH REDUCTION FOR PROLONGED BLADE LIFE
UP TO 200 PROGRAMS IN MEMORY
UP TO 10 DIFFERENT CUTTING LENGTH ADJUSTMENT IN ONE MATERIAL
+/- 0.008″ CUTTING LENGTH PRECISION
COOLANT TANK WITH BOX TO COLLECT CHIPS AND ELECTRIC PUMP FOR BLADE LUBRIFICATION
INSTRUCTIONS MANUAL

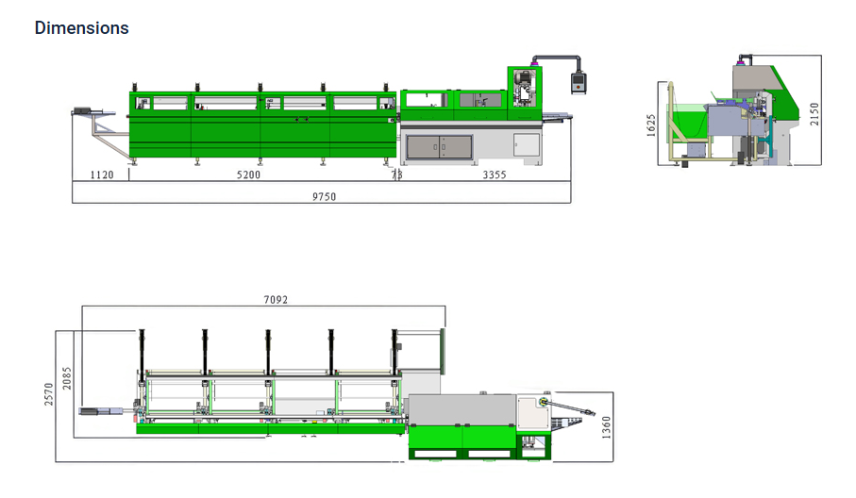

Dimensions
- OVERALL : SEE PICTURES
Weight
- 7700 LBS
