- Product No : US8159
- Model : TOM-4VK
- TYPE : CONVENTIONAL, KNEE TYPE
- AXIS TRAVEL : X: 31.5'' / Y: 16.5'' / Z: 16.5''

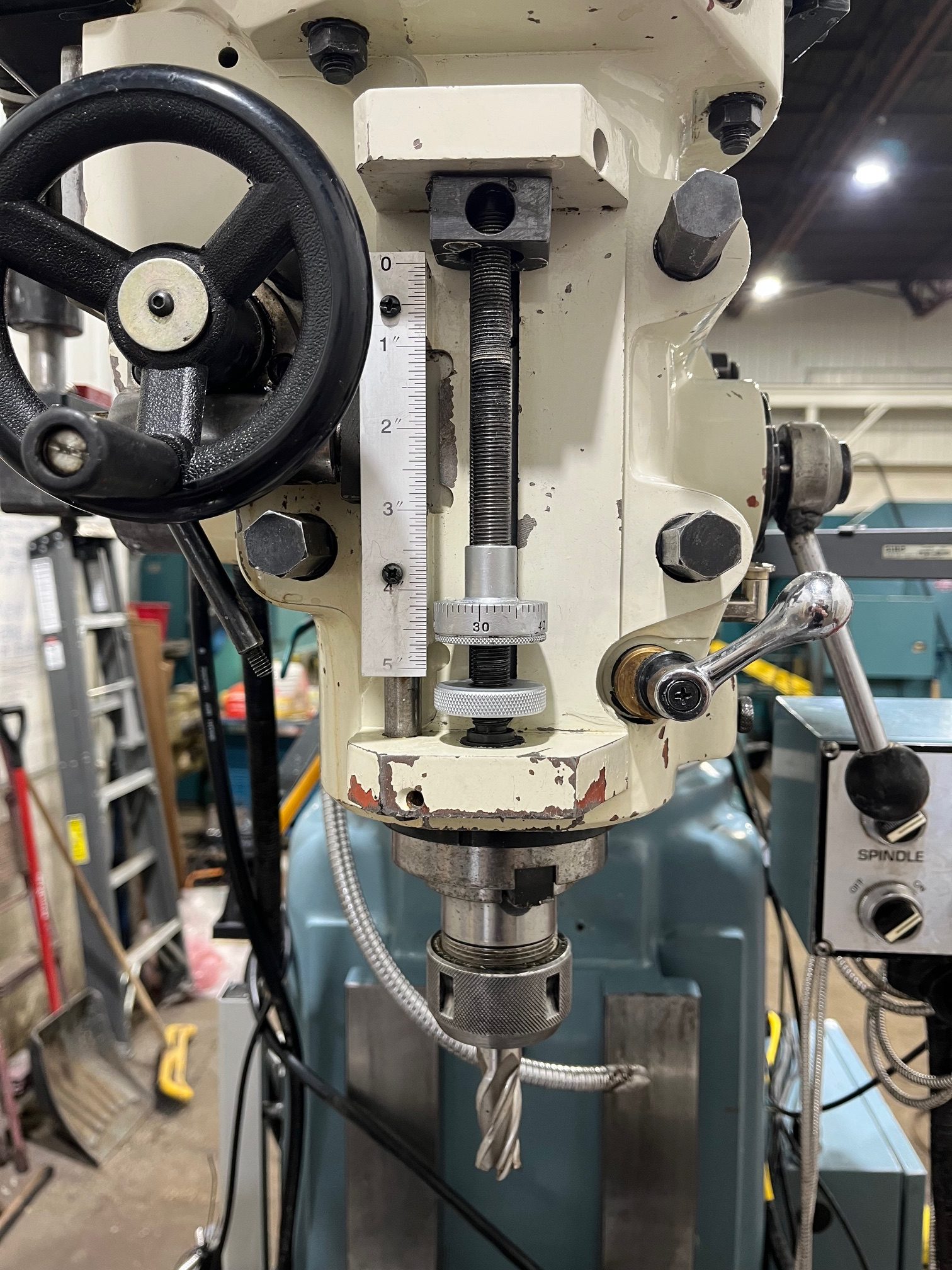

- QUILL TRAVEL : 5"
- TABLE DIMENSIONS : 10" X 50''

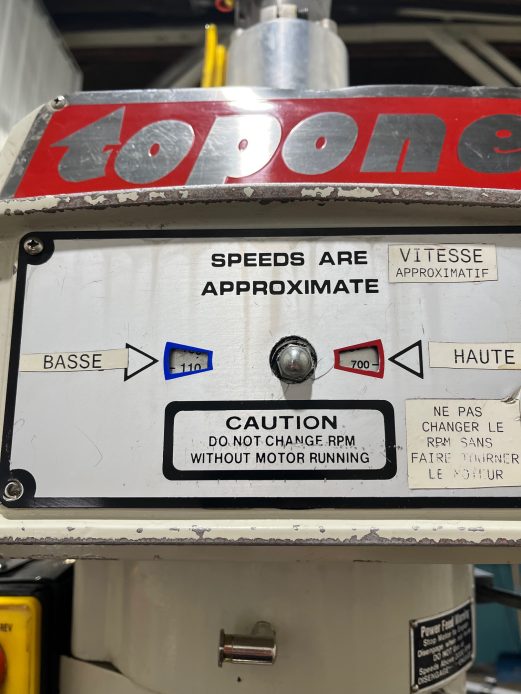

- SPEED : 70 ~ 3900 RPM (INFINITLY VARIABLE)
- Attachement : NT-40
- Motor : 5 HP
- Voltage : 575V / 3PH
- Année : 2006

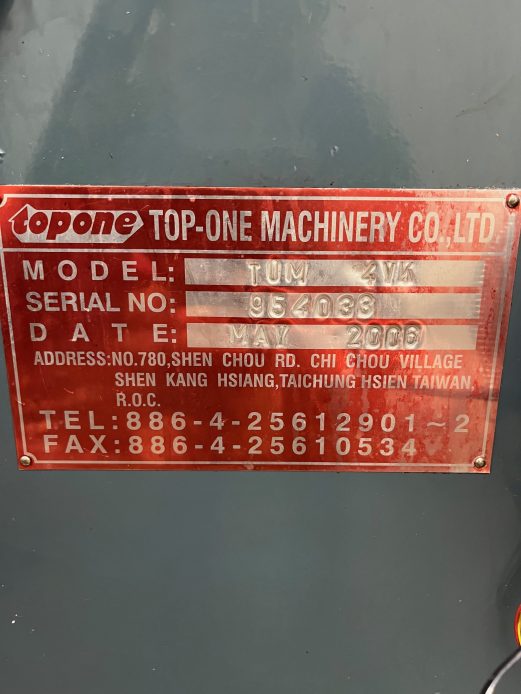

- # SÉRIE : 954033
COMPONENTS AND ACCESSORIES:
-Automatic lubrication system

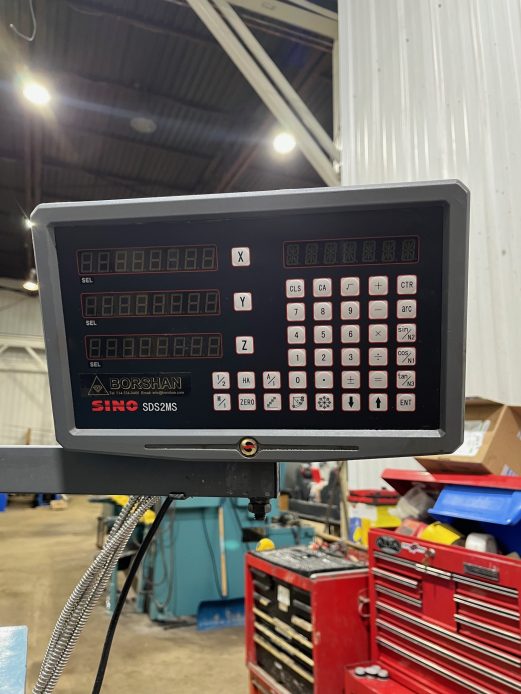

-Installed 3-axis Sino digital readout
-Left/right tilting head
-Cooling system
-CHIP tray
-Halogen lamp
-Motorized feed on X, Y, X AXES AND RAPID TRAVEL ON X, Y

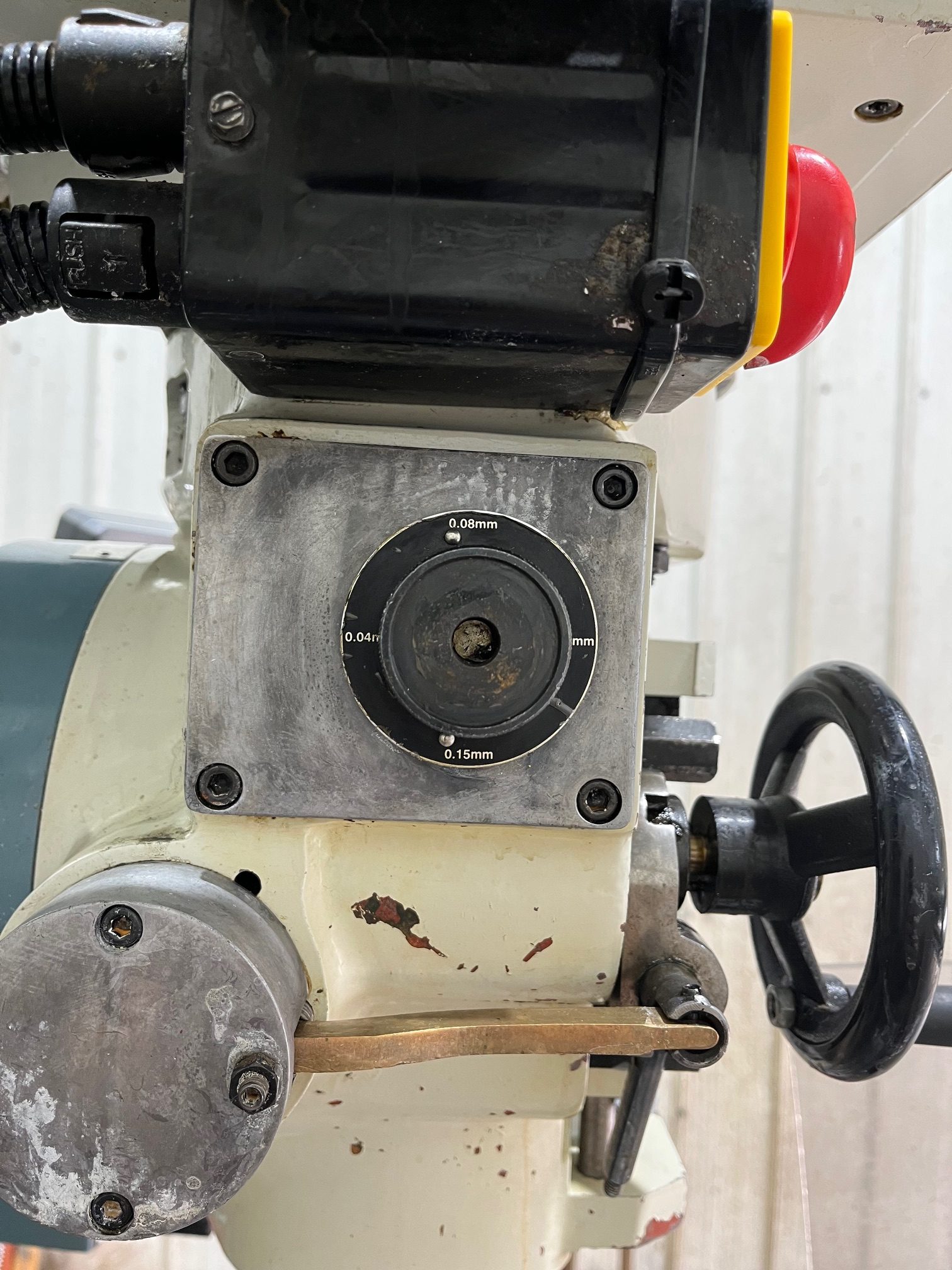

-3 AUTO QUILL FEED SPEEDS
-Pneumatic tool retention system (DRAWBAR)

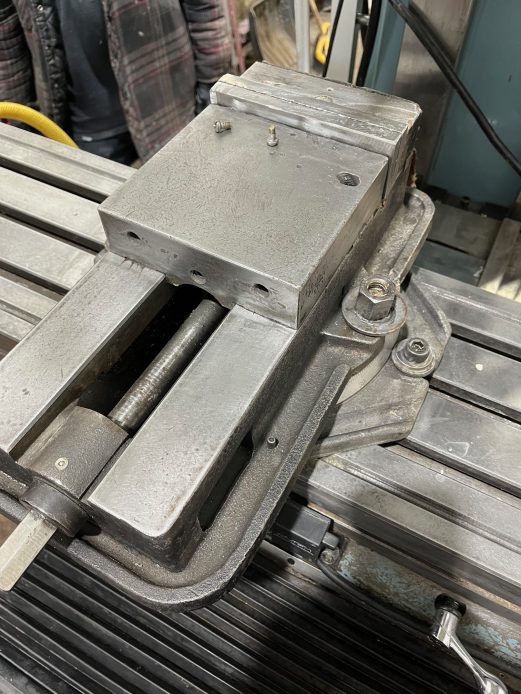

-SWIVELLING VISE
-SPINDLE PROTECTION SCREEN AND SLIDEWAYS PROTECTORS
Dimensions
- OVERALL : 68" X 78" X 97"
Weight
- 3,650 LBS
