- Product No : US8039
- Model : FGV 32||FGV 32
- Longueur de travail : TABLE: 14¼" X 55"
- Motor : 5,5 KW / 13 KVA
- Speed : X-Y : 20-900 (VAR) mm /min/ Z : 5.7-250 (VAR) mm/min VITESSE RAPIDE: X-Y: 1635 mm/min , Z: 460 mm/min
- Voltage : 575V / 3PH
- Table: 14¼”x 55″
- great rigidity and geometric precision
- continuous advances in the 3 axes using a frequency converter
- hardened guide rails
- pivoting spindle head with movable sheath
- milling in the longitudinal axis
- automatic work cycles in the longitudinal axis with toggle lever (Special execution)
- simple operation
- centralized lubrication system (manual)

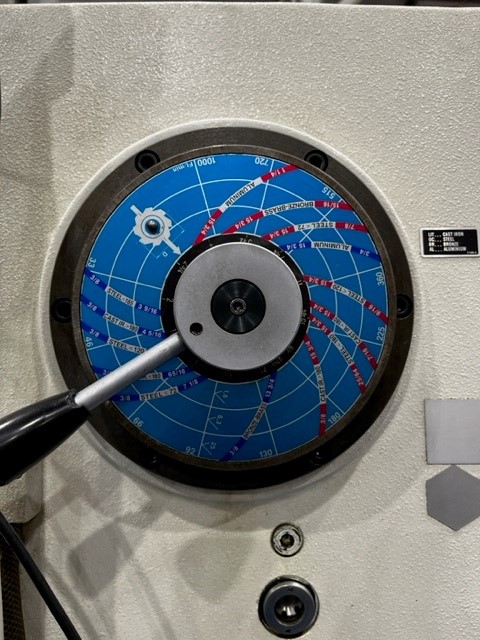

- Spindle speed range increased from 45 to 2000 rpm

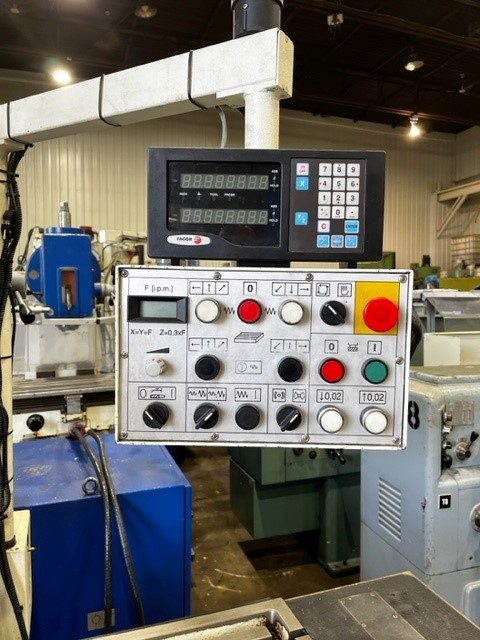

- 2-axis digital screen
Weight
- 2900KG
