- PRODUCT # : US8070
- BRAND : Tos
- MODEL : SN32
- Type : CONVENTIONAL
- CAPACITY : OVER THE BED: 13'' , OVER CARRIAGE: 7'' , IN GAP: 21''
- WORKING LENGHT : BETWEEN CENTERS: 36''
- TAILSTOCK TRAVERSE : 5"
- SPEED : 16X (14~2500 RPM)
- SPINDLE BORE : 2-1/8''
- BED WIDTH : 13"
- Voltage : 600V , THREE-PHASE
- Attachment : SPINDLE: CAMLOCK D1-6 | TAILSTOCK: MT5
- MOTOR : 5 HP

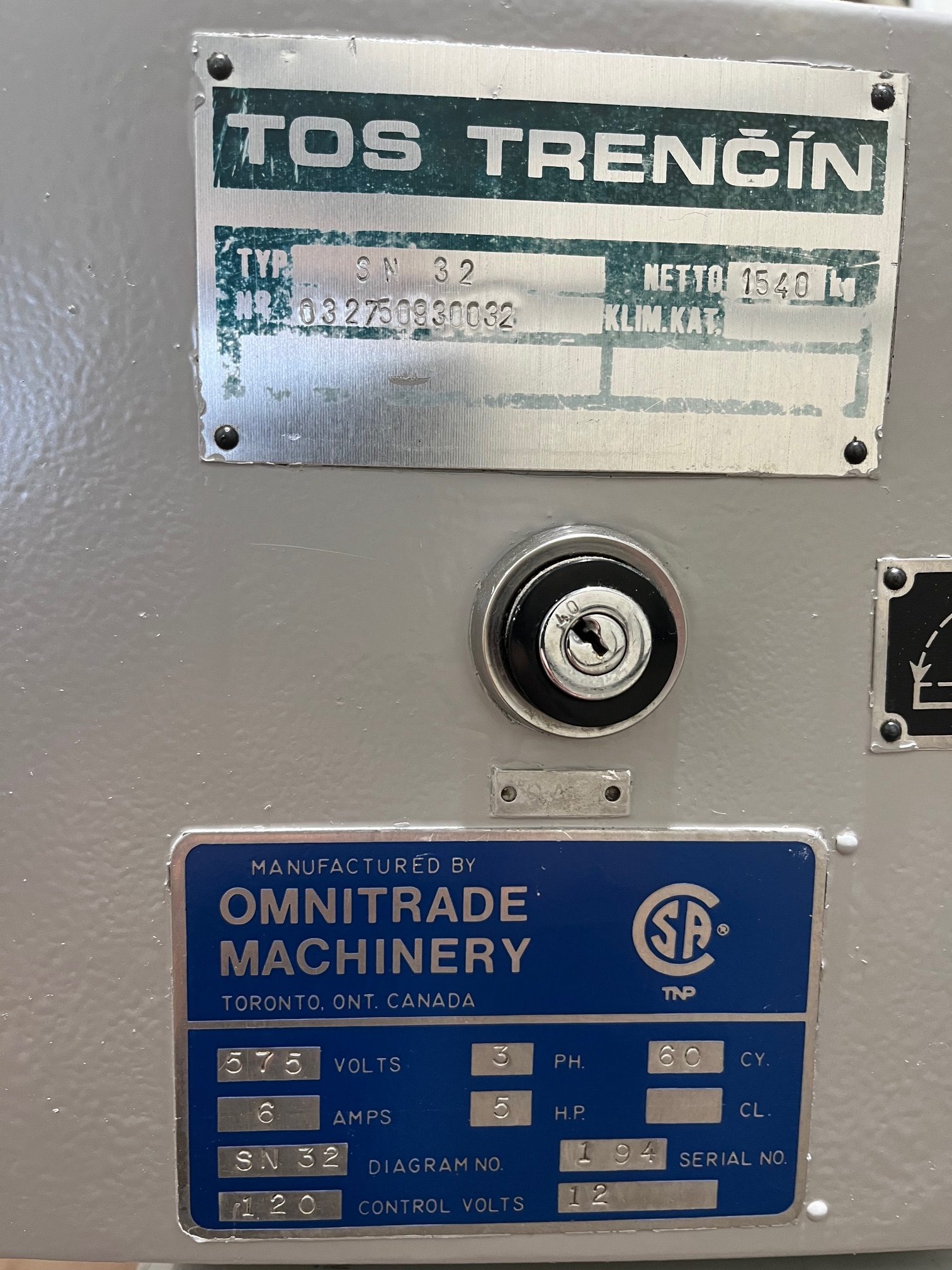

- SERIAL # : 032750930032

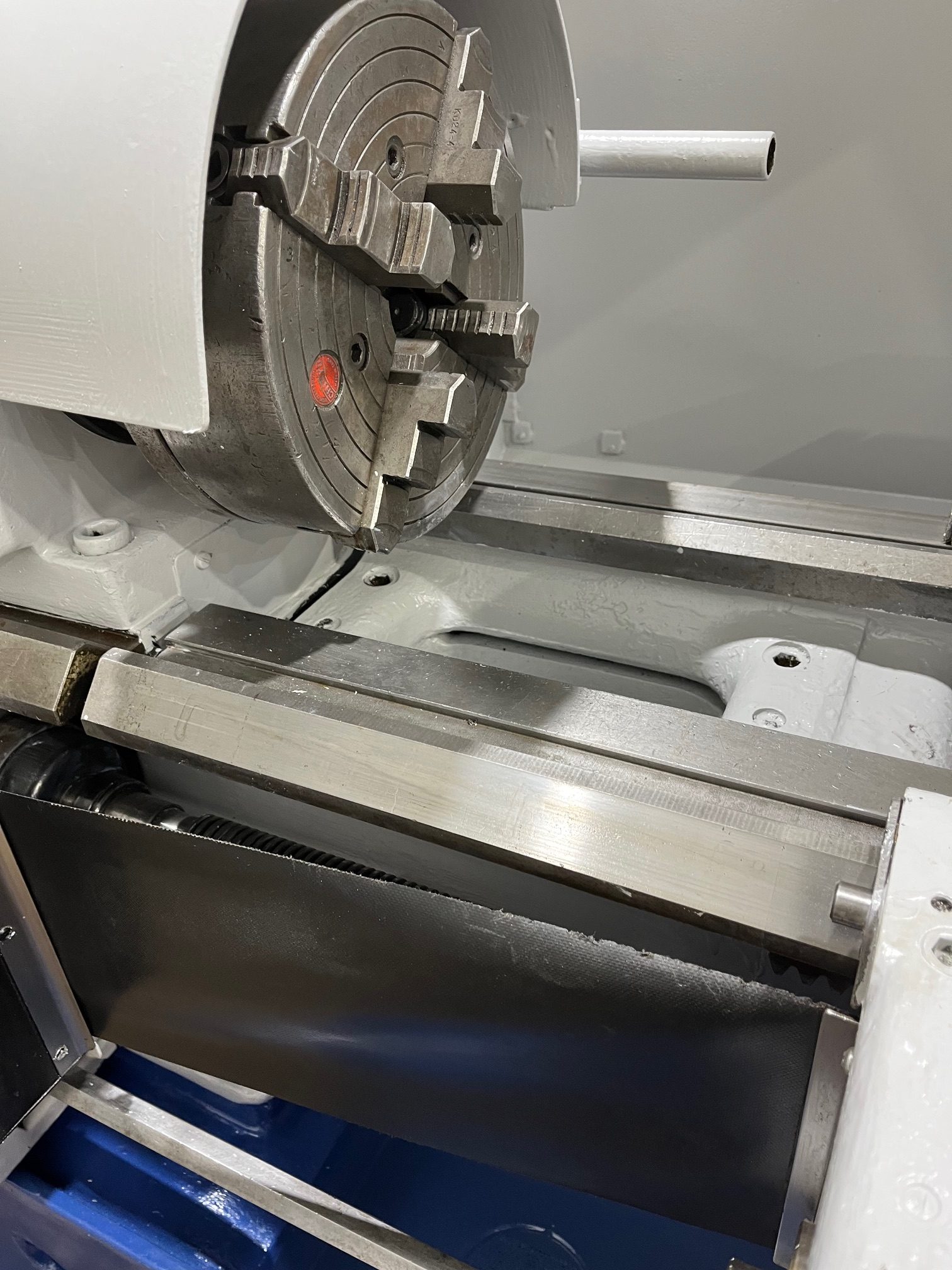

- 4 JAWS CHUCK
- QUICK CHANGE TOOLPOST
- CHIP PAN
- SPLASH GUARD
- GUARD ON CHUCK , TOOLPOST & MAINSCREW
- IMPERIAL AND METRIC THREADING
- THREAD COUNTER
DIGITAL READOUT AVAILABLE AS AN OPTION
COOLING SYSTEM AVAILABLE AS AN OPTION
Dimensions
- : OVERALL: 92''X 40''X 62''
Weight
- 3395 LBS
