- Product No : US8164
- Type : HORIZONTAL
- Model : W100A
- Capacity : 3.93" (SPINDLE)
- ATTACHMENT : ISO50
- Longueur de travail : 49.21 x 49.21" (TABLE)
- Speed : 7.1 ~ 1120RPM (SPINDLE)
- Motor : 16HP
- Voltage : 575V / 60Hz / 3PH
- YEAR : 1988
- SERIAL # : 31139
- TABLE CAPACITY : 6614LBS
- TRAVEL : X = 63″ / Y = 44.09″ / Z = 49.21″
- SPINDLE TRAVEL : 35.43″
- COOLING SYSTEM
- ROTATIVE TABLE

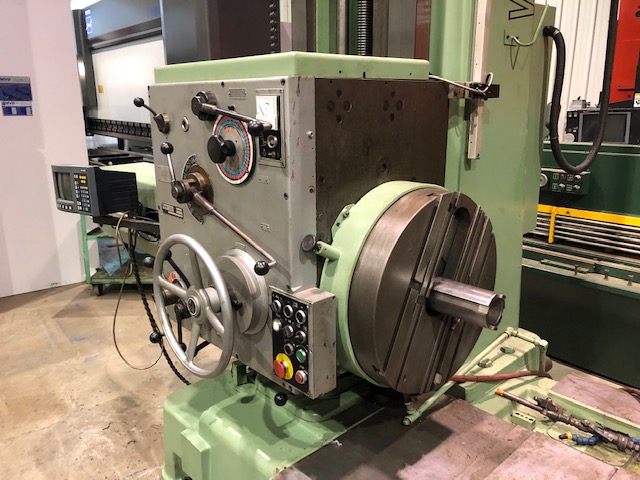

- PHOTOS FOR ILLUSTRATIVE PURPOSES ONLY, THE MACHINE IS BEING PREPARED
Dimensions
- OVERALL : 234" X 113" X 118"
