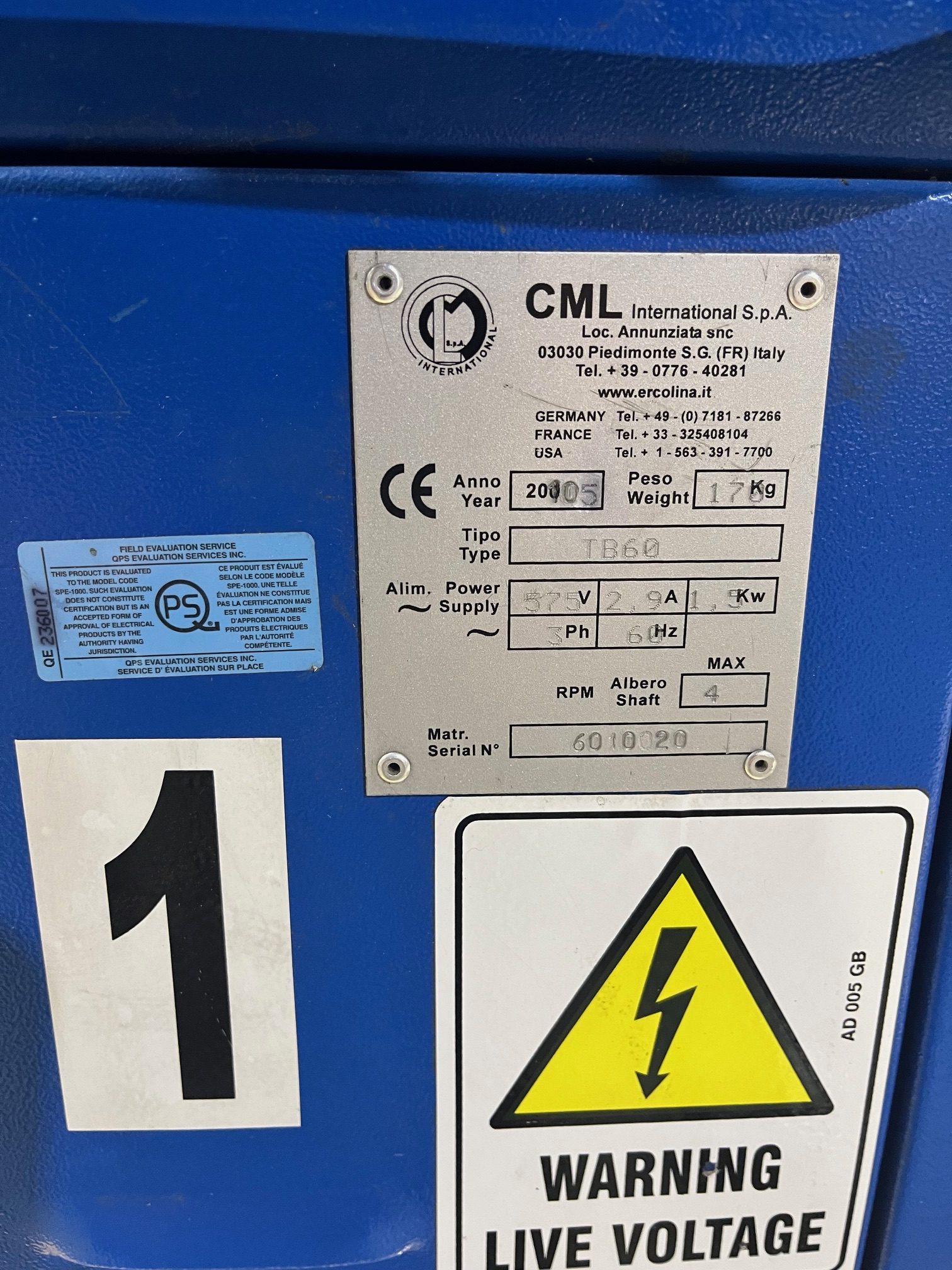

- Product No : US8150
- MODEL : TB60
- MOTOR : 2 HP
- Voltage : 575V / 3PH
- YEAR : 2005
- SERIAL # : 6010020
BENDING CAPACITY :
MILD STEEL ROUND TUBE: 2″ 1/2
MILD STEEL SQUARE TUBE: 2″
SCH 40 PIPE: 2″
MAX. CLR: 15″
MIN. CLR: 0.4″

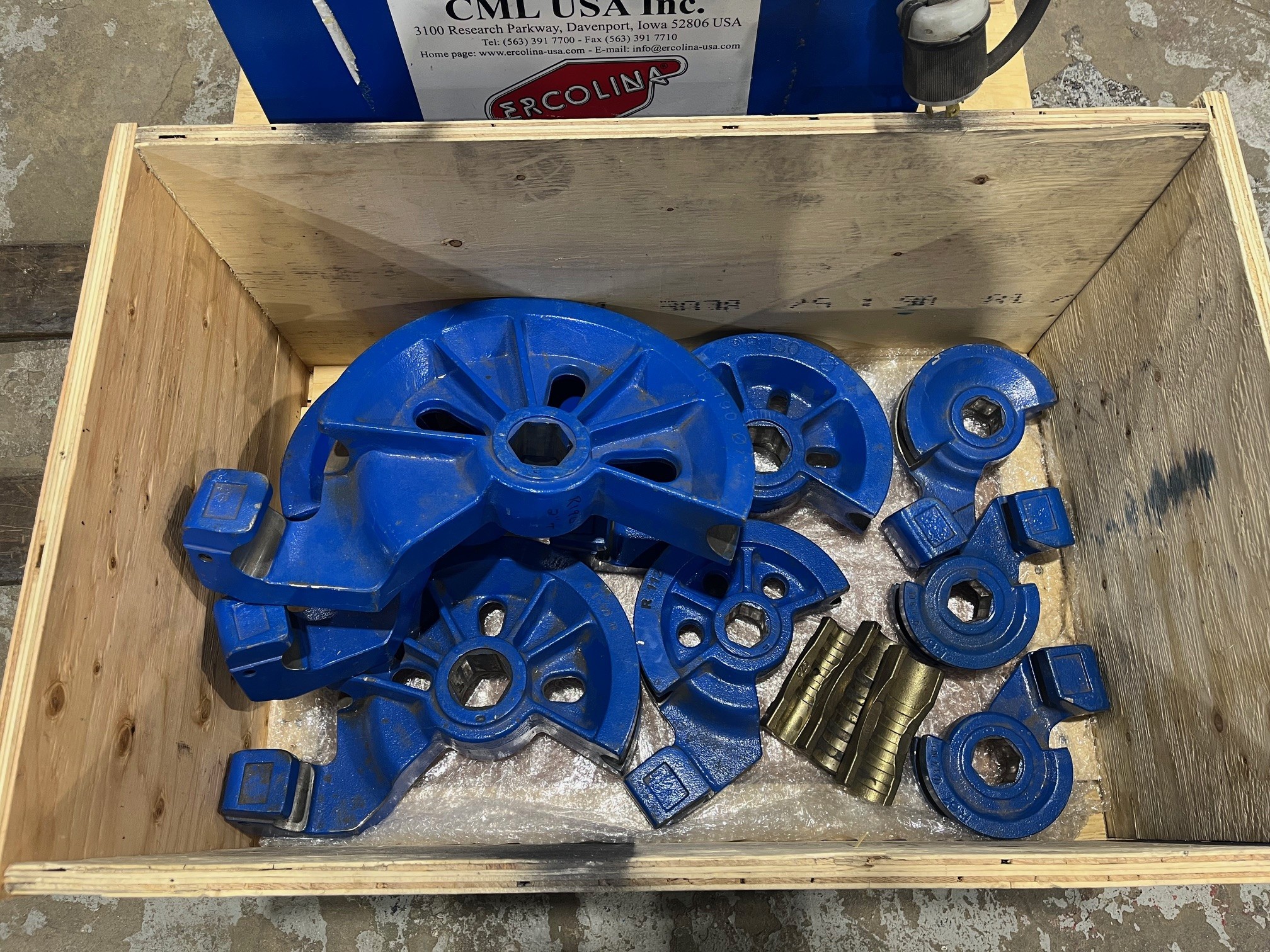

INCLUDED DIES:
3/4″ OD WITH 67MM CLR (2.6″)
7/8″ OD WITH 67MM CLR (2.6″)
1″ OD WITH 82MM CLR (3.2″)
1″ 1/4 OD WITH 112MM CLR (4.4″)
1″ 1/2 OD WITH 150MM CLR (5.9″)
1″ 3/4 OD WITH 170MM CLR (6.7″)
2″ OD WITH 190MM CLR (7.5″)
1″ 5/8 OD WITH 130MM CLR (5.1″)
1″ SHOE
1″ 1/2 SHOE
1″ 5/8 SHOE
Dimensions
- OVERALL : 34" X 20" X 40"
Weight
- 375 LBS
