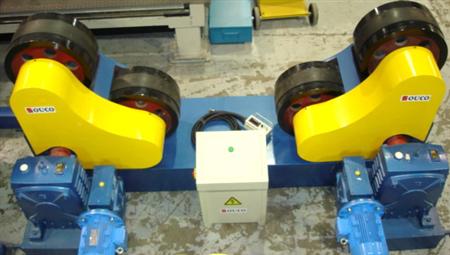

- Product No : NFZGH-60
- Model : ZGH-60
- TYPE : SELF-ADJUSTING
- Capacity : 132,000 LBS
- WORKPIECES DIAMETER : FROM 29.5" TO 189"
- WHEELS DIAMETER : 17.75"
- Speed : 4" ~ 39"/MIN
- Motor : 5 HP
- Voltage : 575V/3Ph/60Hz
Dimensions
- DRIVER : 120" X 43.5" X 45.5"
- IDLER : 101" X 25.5" X 45.5"
Weight
- DRIVER: 4200LBS | IDLER: 2650LBS
