- Product No : NFFMV-1100-50

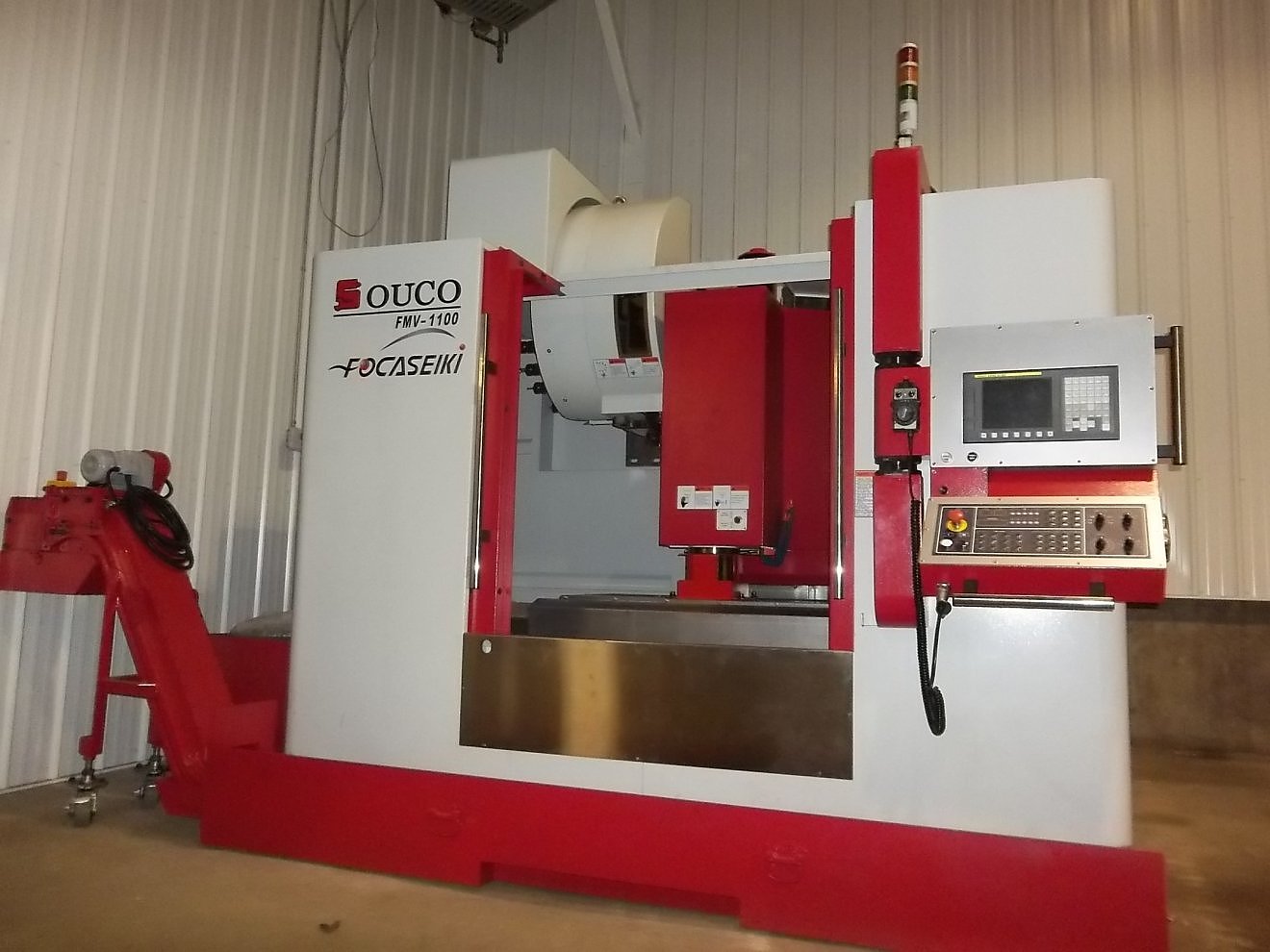

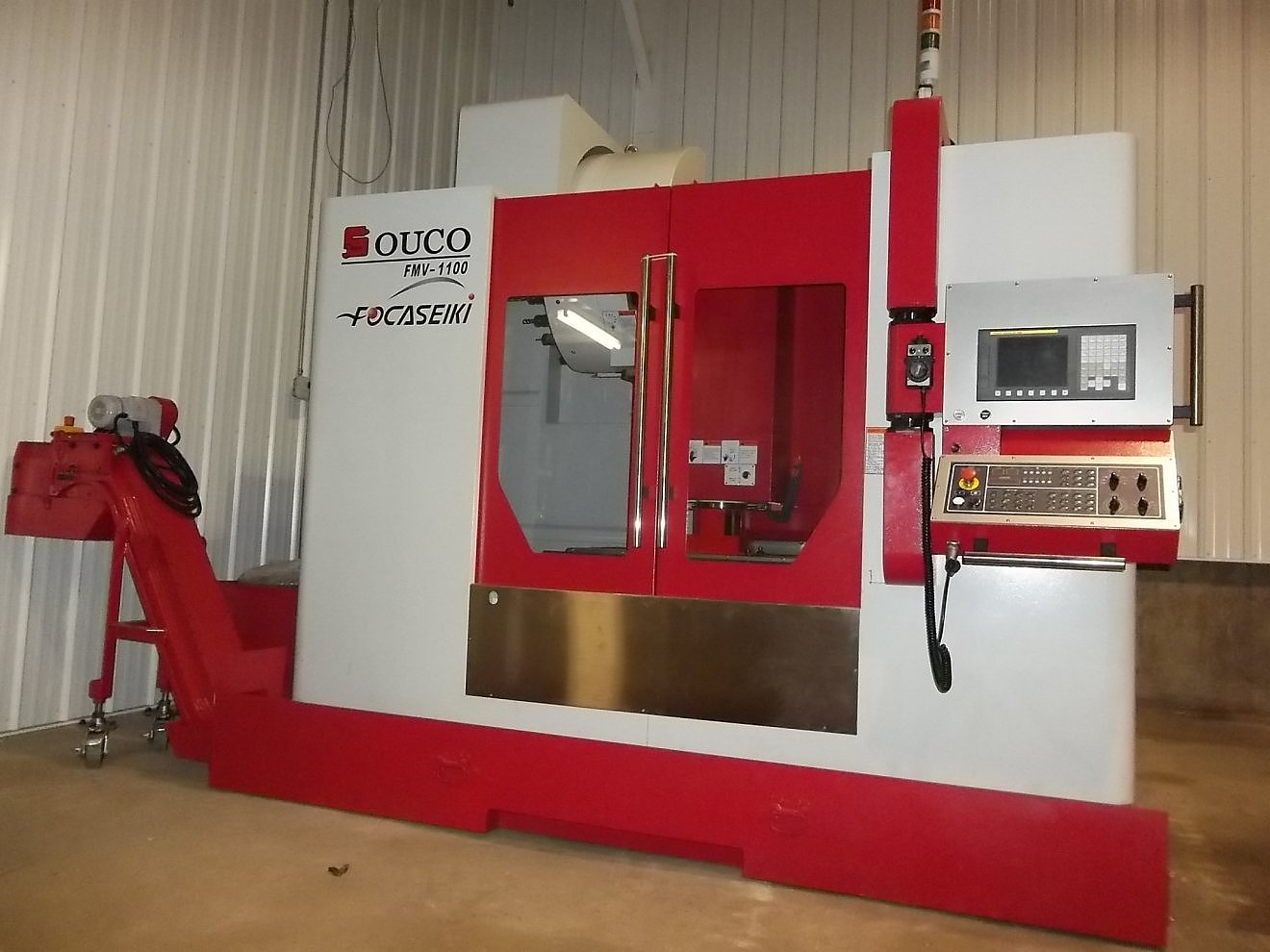

- Model : FMV-1100-50
- Capacity : CHARGE : 900 Kg.

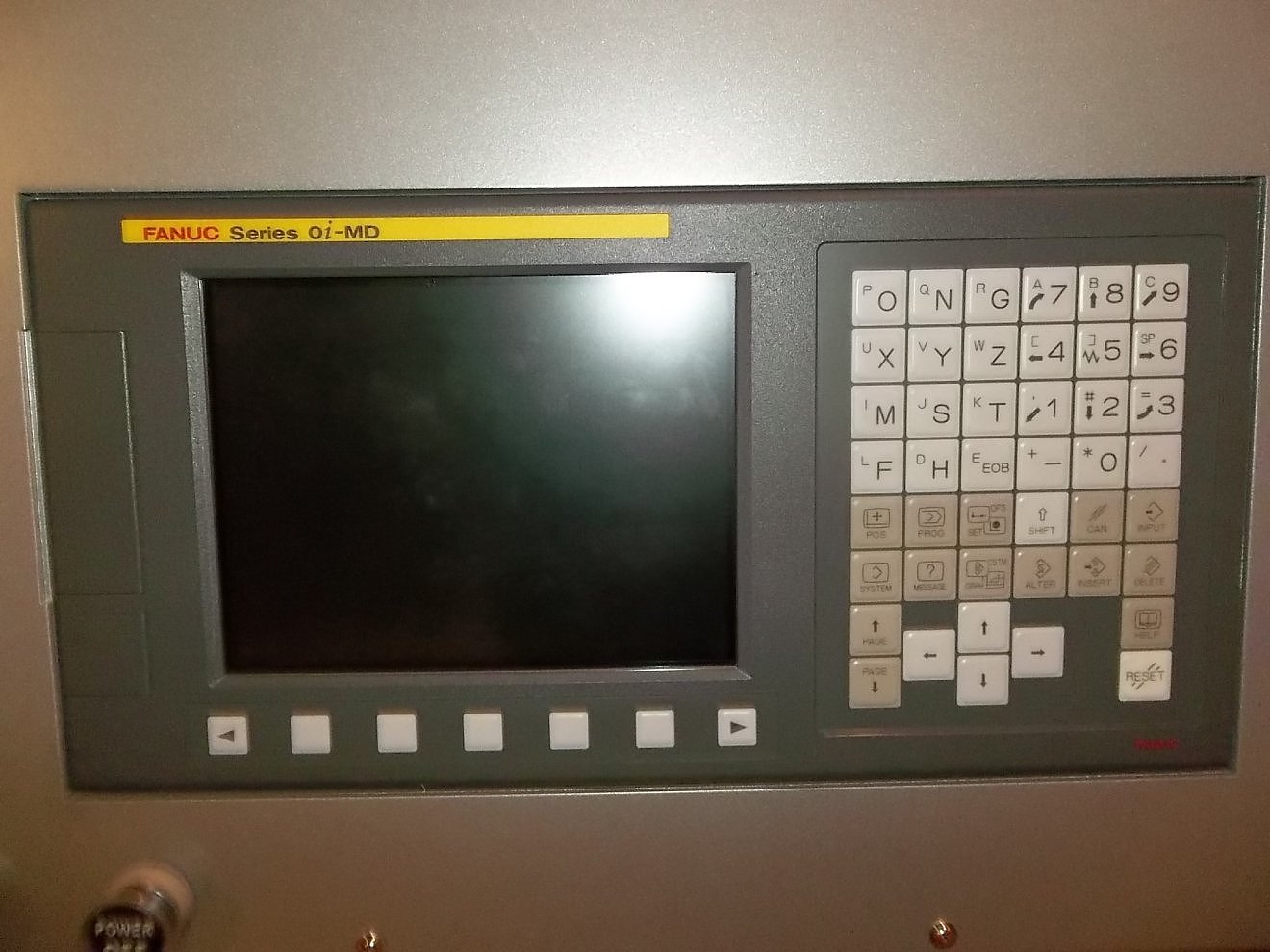

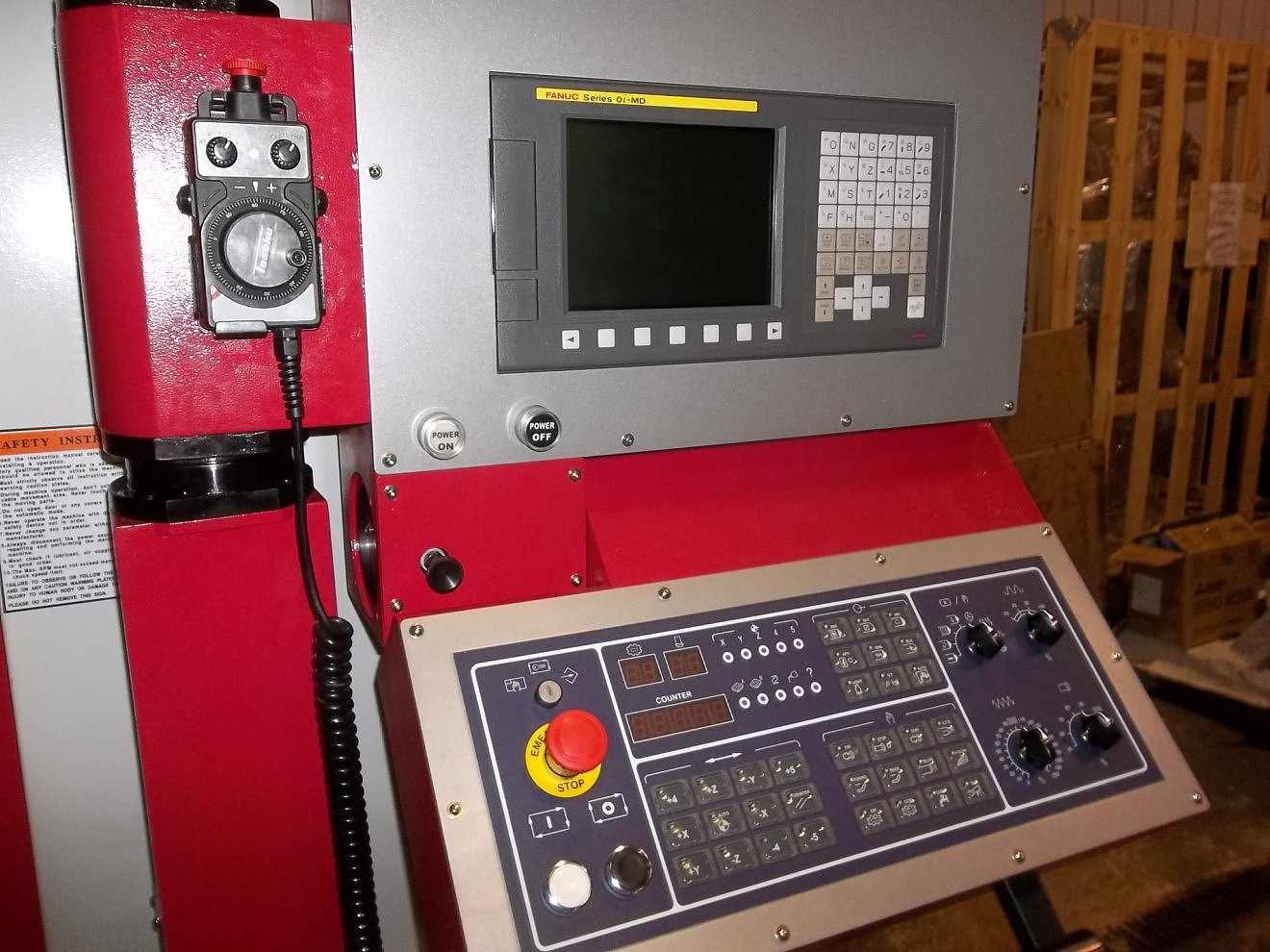

- Contrôle : FANUC OiMD 8.4''
- Lame : BROCHE: BT50

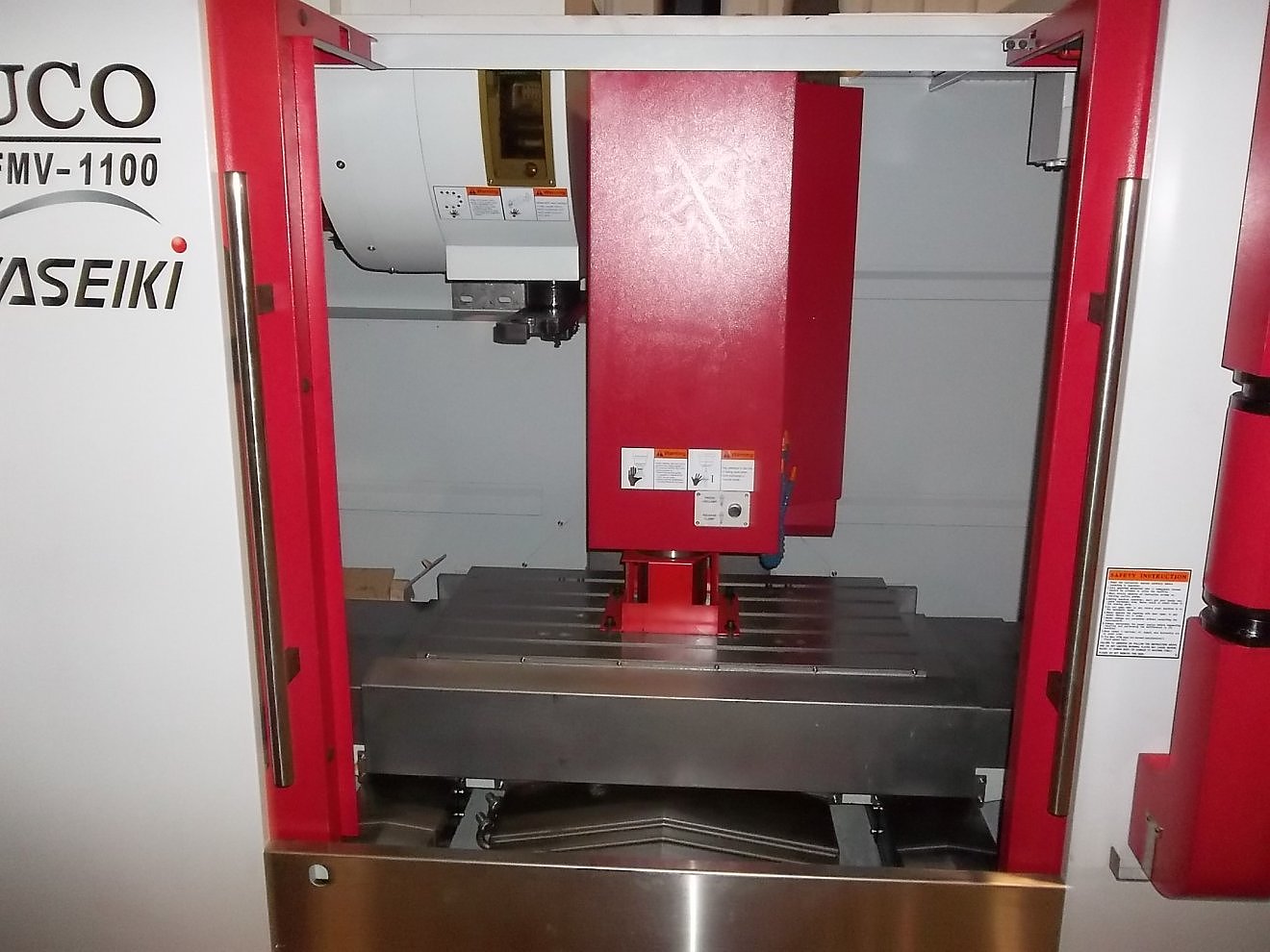

- Longueur de travail : TABLE:1100mm x 560mm
- Motor : FANUC ALPHA 20HP
- Speed : 0~8000 RPM
- Voltage : 575V / 3Ph.
3-AXIS CUTTING FEED RATE : 12,000 mm/min
RAPID TRAVERSE : 30,000 mm/min

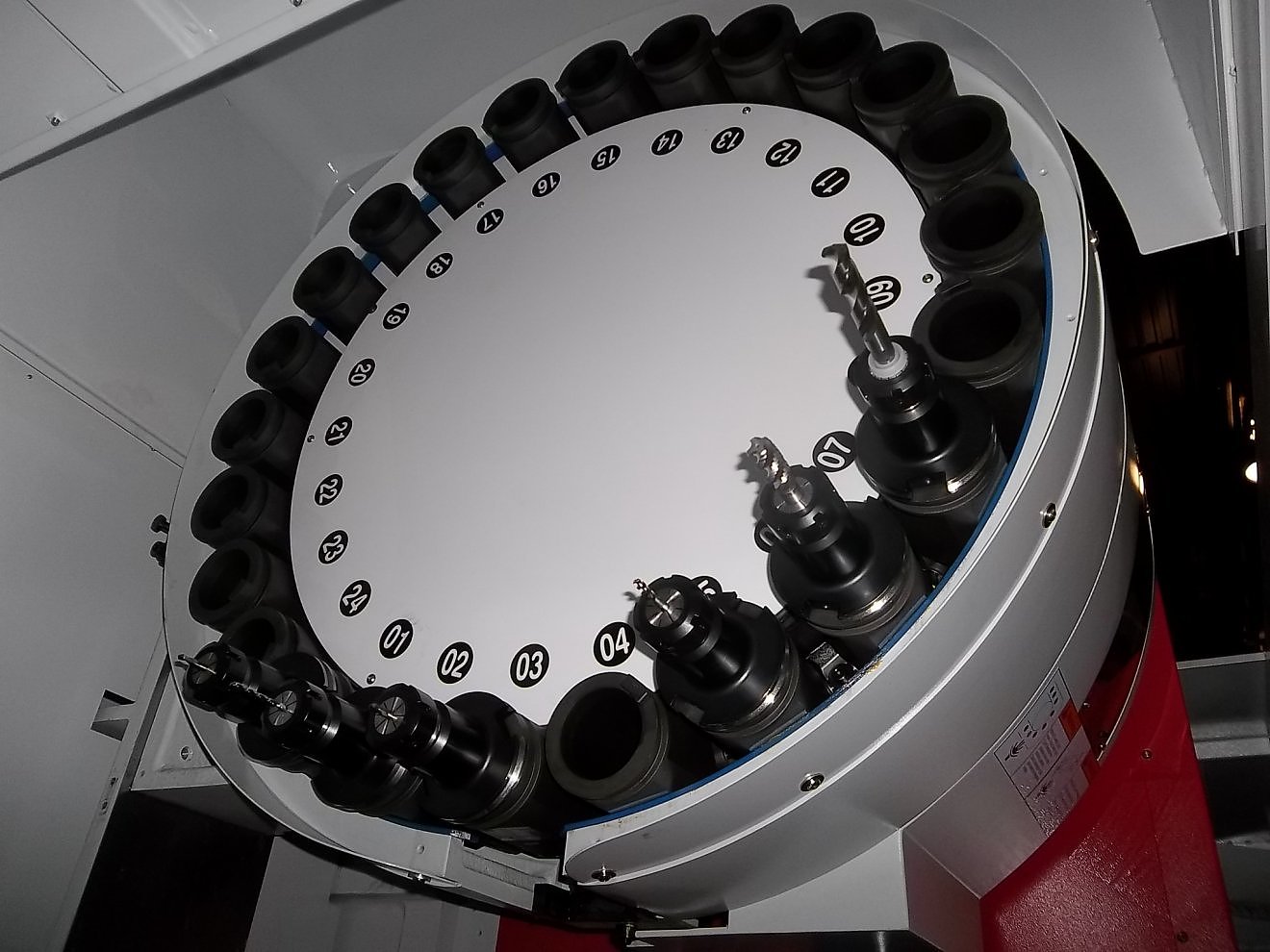

AUTOMATIC TOOL CHANGER – 24 TOOLS
CLOSED CABINET / EMERGENCY LIGHTING
AUTOMATIC LUBRICATION SYSTEM
COOLING SYSTEM : 3 BAR
CHAIN CONVEYER AND TROLLEY
OIL/COOLANT SEPARATOR SYSTEM
DIRECT TYPE SPINDLE MOTOR COOLING DEVICE
Weight
- 7000 Kg
