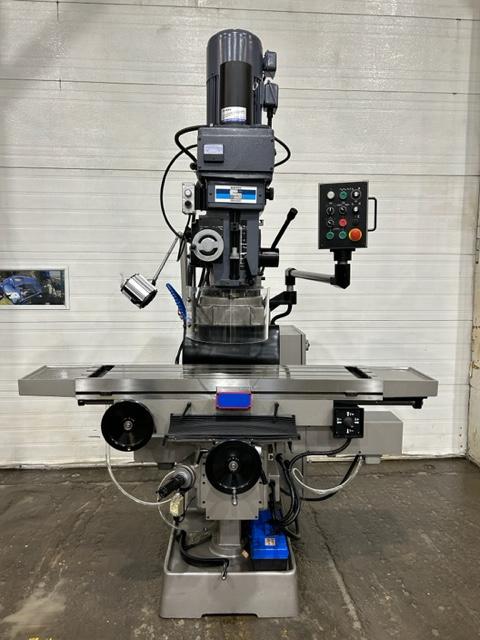

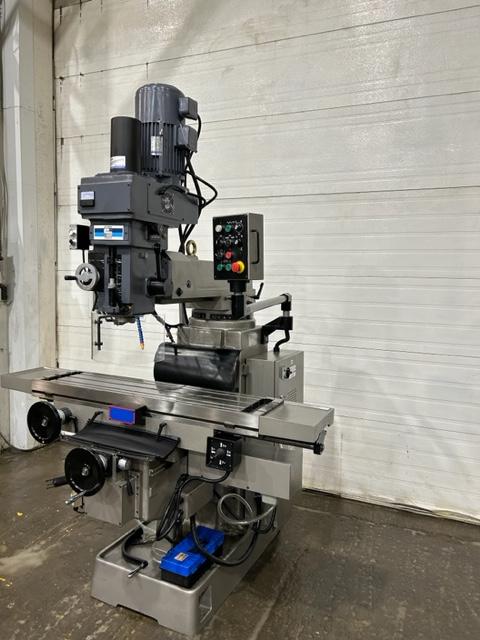

- Product No : NFVM-EVS300
- Model : PBM-EVS300
- Type : CONVENTIONAL, KNEE TYPE
- AXES TRAVEL : X: 40.1"/ Y: 14.6" / Z : 17.7"
- TABLE DIMENSIONS : 12" X 58"
- TABLE LOAD CAPACITY : 880LBS
- Speed : 60-3600 RPM (VARIABLE)
- SPINDLE CENTER TO COLUMN : 5" - 21.5"
- Attachment : NT:40
- Motor : 5HP
- Voltage : 575V/3PH
COMPONENTS AND ACCESSORIES:
-VARIABLE SPEED FEED FOR X AND Y AXES
-BALL SCREWS FOR X AND Y AXES
-Rapid feed on Z axis
-Turcite B on X and Y axis slides
-Cooling system
-Recovery tray
-Automatic slideway lubrication system
-Slideway protector
-Halogen lamp
-Pneumatic tool retention system
-Spindle safety guard
AVAILABLE OPTIONS:
-12″ X 50″ TABLE
–DIGITAL READOUT (SINO, FAGOR OR ACU-RITE)
-Automatic feed on Z axis
-Machining vise
-Clamping kit
-ER40 collet set
Dimensions
- OVERALL : 68.5" X 63" X 94.5"
Weight
- 3850 LBS
