AUTRES SPÉCIFICATIONS:

SPINDLE BORE: 12.4″

NUMBER OF SPEEDS : 12

NUMBER OF FEED RATES: 152 (0.039~15mm/rev)

NUMBER OF THREADS: 76

(0.5~150mm – 0.125~37.5 Module – 60~1/5 Tpi – 240~4/5 DP)

CROSS SLIDE TRAVEL: 16″

TOOL SLIDE TRAVEL: 6″

TAILSTOCK DIAMETER / TRAVEL: 4.13″ / 9″

TAILSTOCK ATTACHMENT: MT-6

INCLUDED ACCESSORIES:

• – User manual and documentation 100% in French
• – 22″ rigid bed, hardened to 55~60HRC
• – Rapid longitudinal and transverse feed
• – BISON 3-jaw and 4-jaw chucks
• – Steady rest and follow rest with bearing points
• – Thread counter
• – Work lamp
• – Chip tray and cooling system
• – Full-length splash guard
• – Chuck and tool post protectors
• – Durable and unique leadscrew protector
• – High-performance electrodynamic foot brake

AVAILABLE OPTIONS:

• – Two-axis digital readout (SINO, NEWALL, ACU-RITE, or FAGOR)
• – Taper turning attachment
• – Infinitely variable speed
• – “Constant surface speed” via FAGOR 40i TS
• – ALGRA (Italy) quick-change tool post
• – 28″ faceplate
• – Large steady rest
• – Removable gap bed

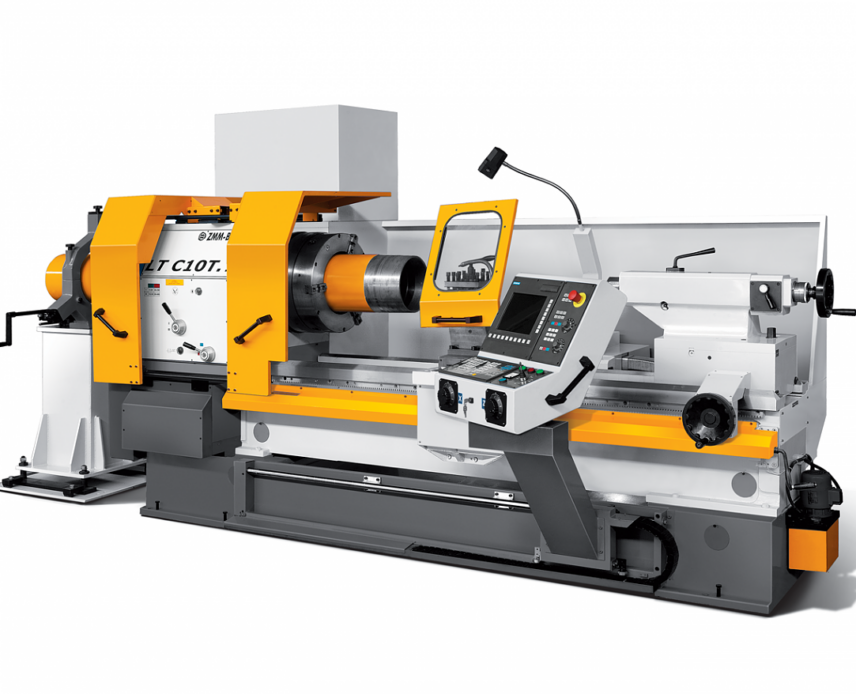

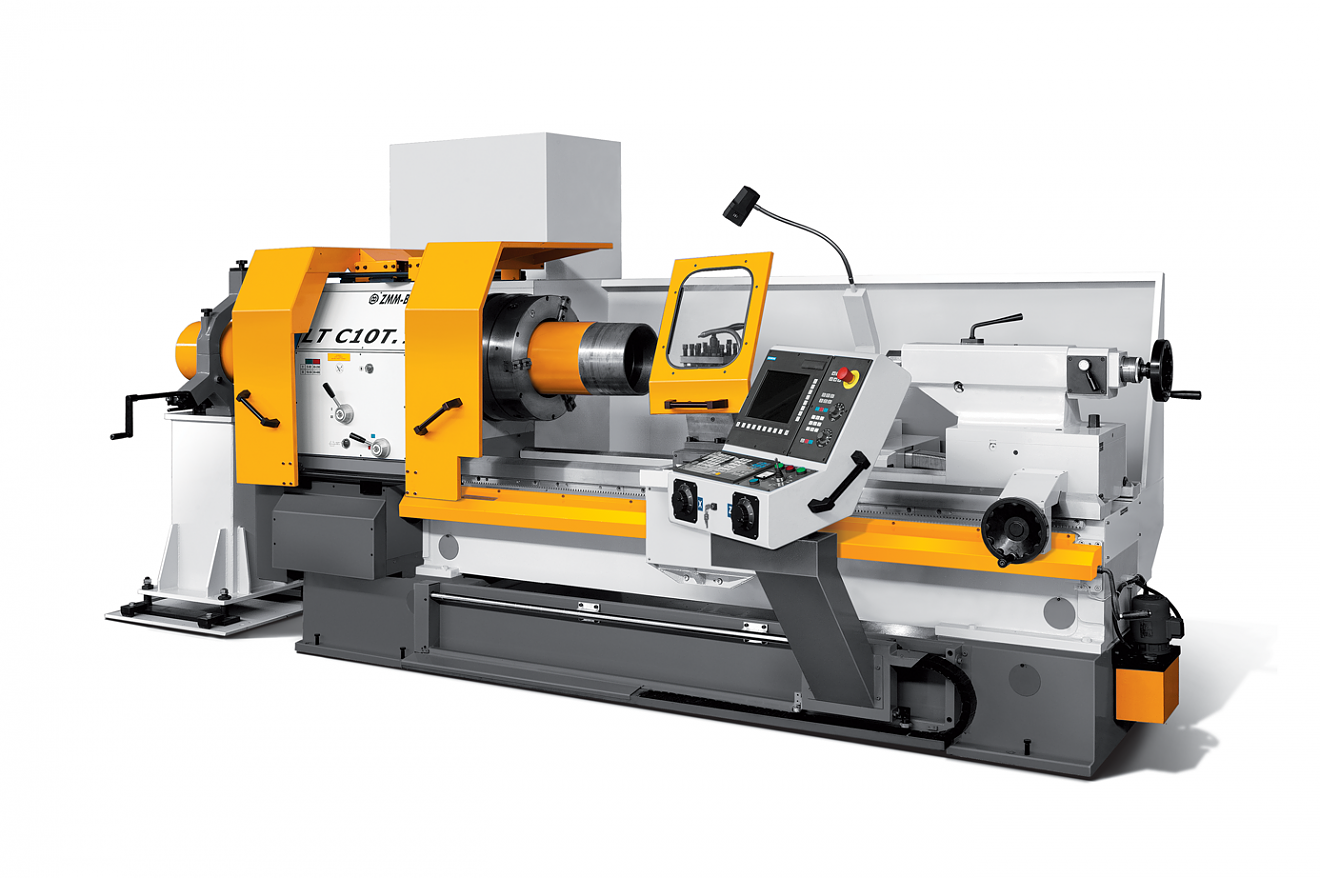

• – CNC VERSION AVAILABLE

**MANUFACTURED IN EASTERN EUROPE FOR OVER 60 YEARS**
