- Product No : NFZMM-CU800

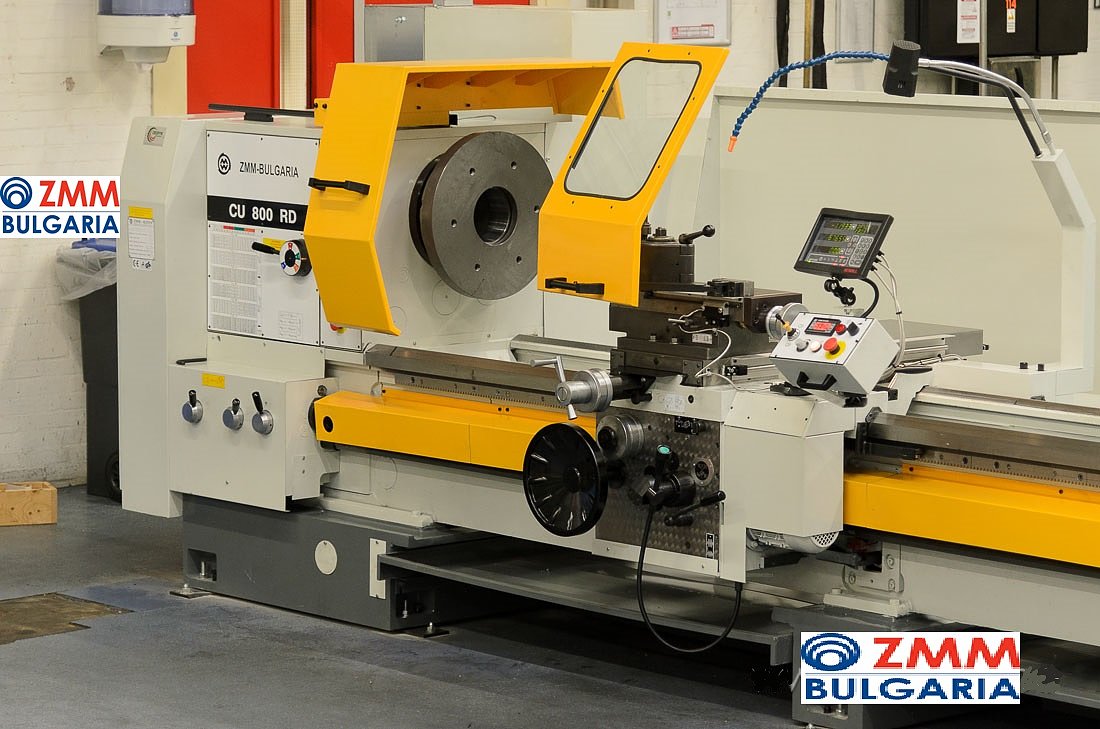

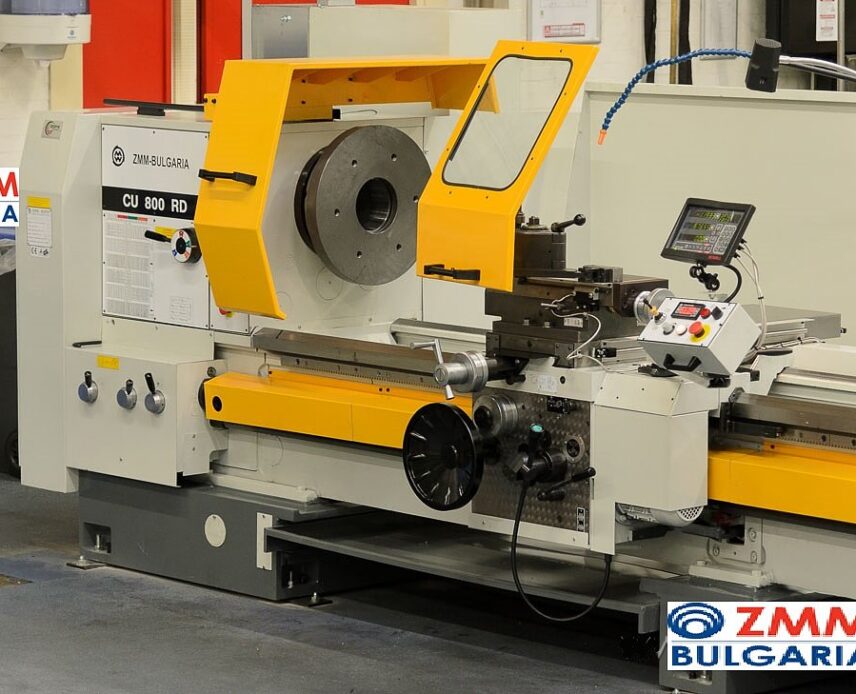

- Model : CU800
- Type : CONVENTIONAL
- Capacity : OVER THE BED: 35'', OVER THE CARRIAGE: 19"
- Work Length : 60'' ~ 393''
- Motor : 30 HP OU 40 HP
- Speed : 6.3~1250 RPM
- Voltage : 600V / 3Ph / 60Hz
OTHER SPECIFICATIONS:
- Spindle bore: 6.1″
- Number of speeds: 24
- Number of feed rates: 160 (0.032~38.9mm/rev)
- Number of threads: 80
(0.5~480mm – 0.125~120 Module – 60~1/16 Tpi – 240~1/4 DP) - Cross slide travel: 20.5″
- Tool slide travel: 10.5″

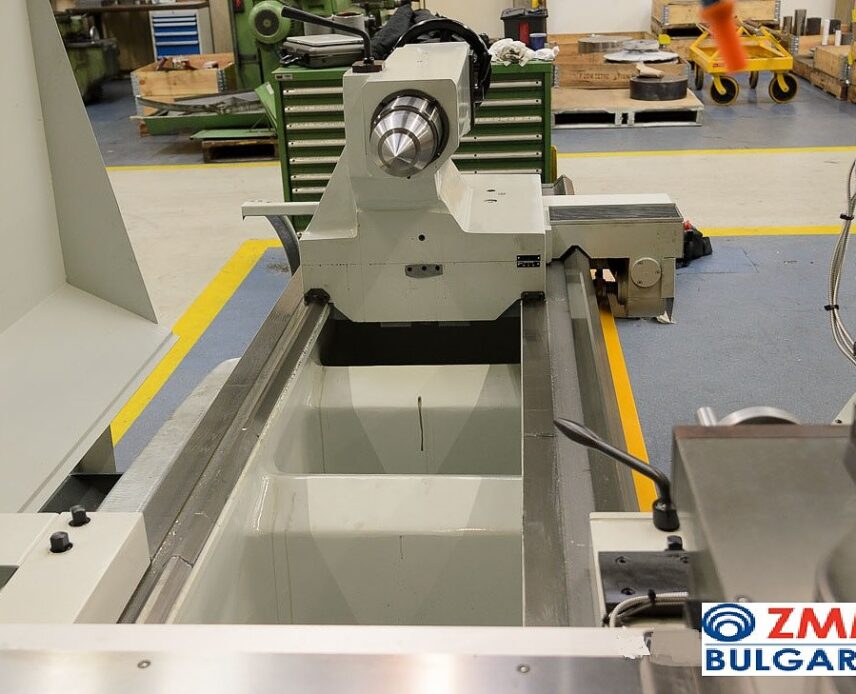

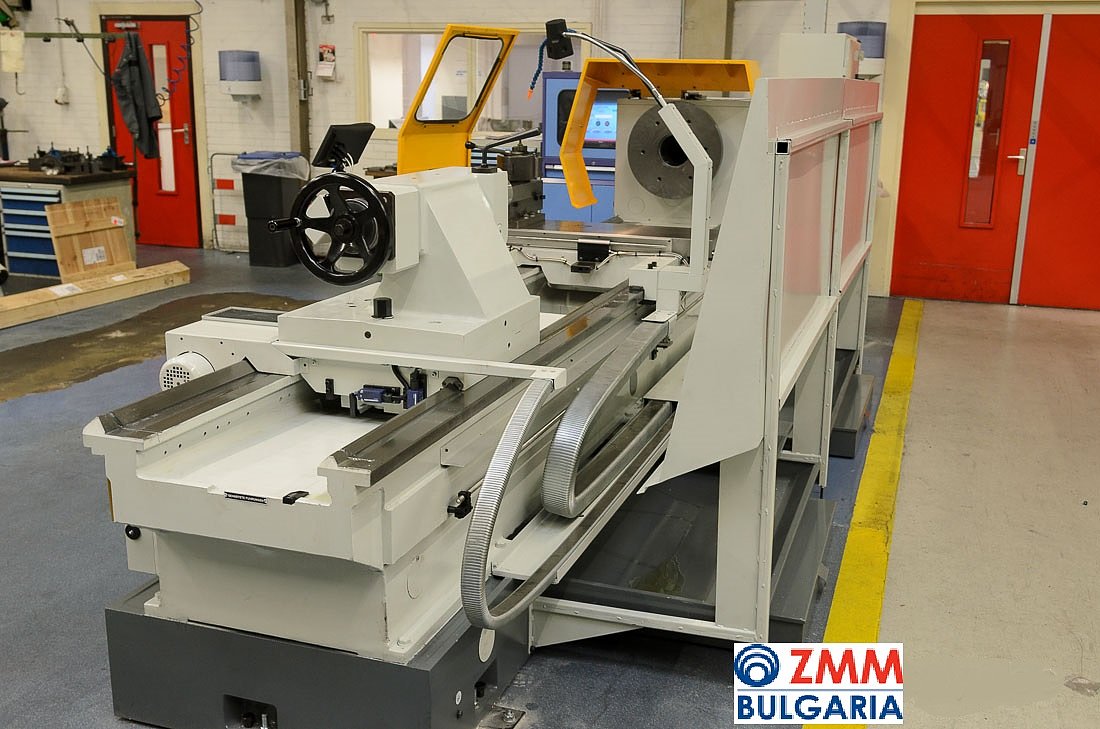

- Tailstock diameter / travel: 5″ / 10″
- Tailstock attachment: MT-6
INCLUDED ACCESSORIES:
- – User manual and documentation 100% in French
- – 28″ rigid bed, hardened to 55~60HRC

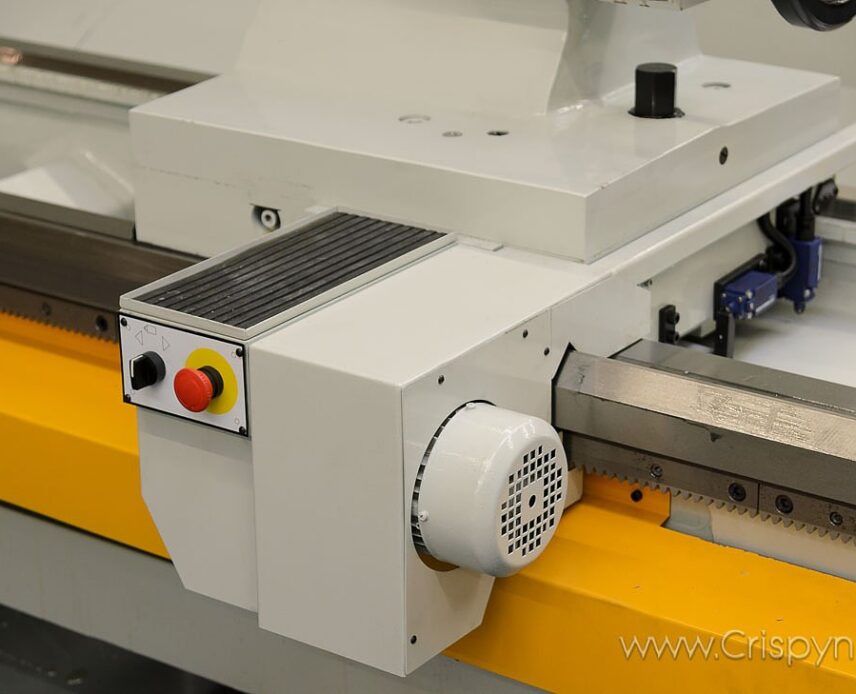

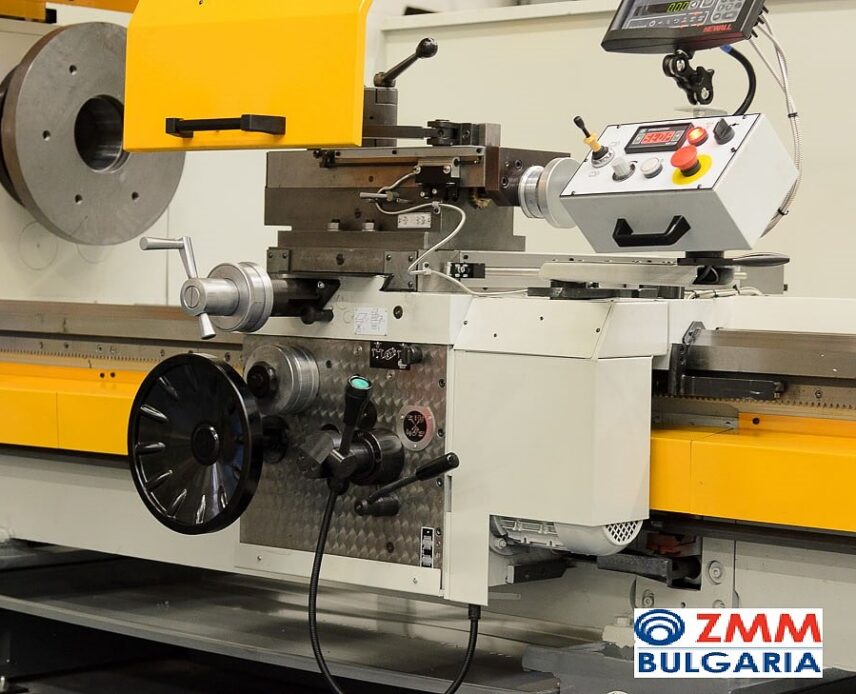

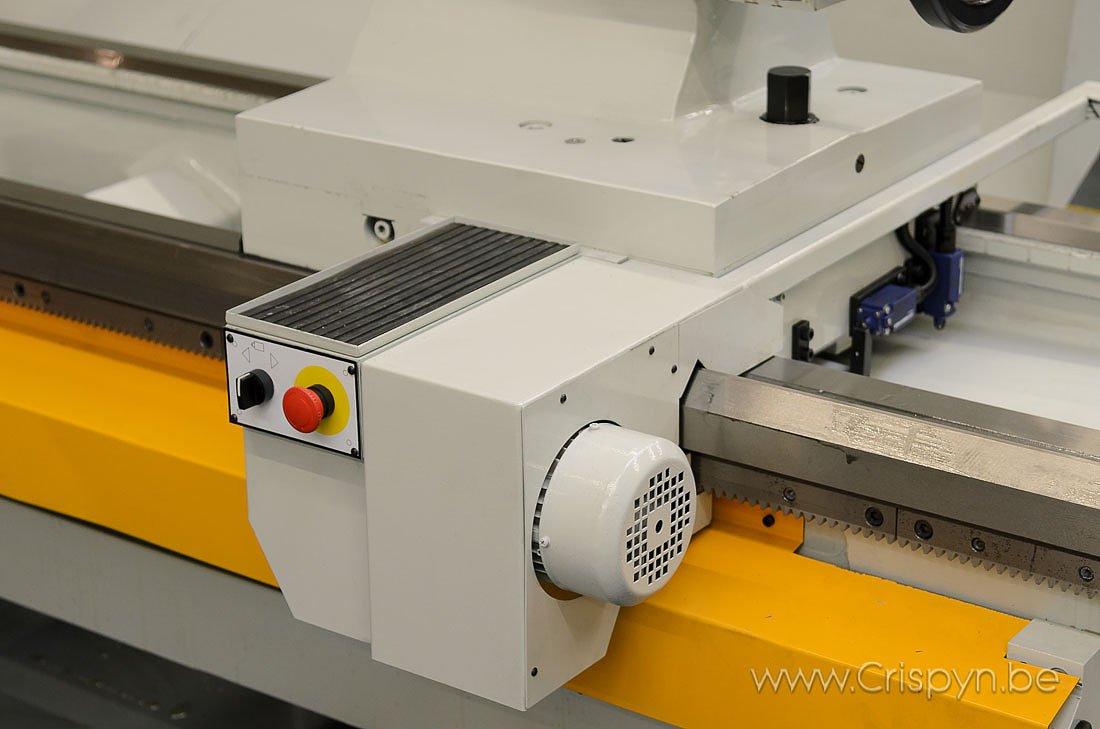

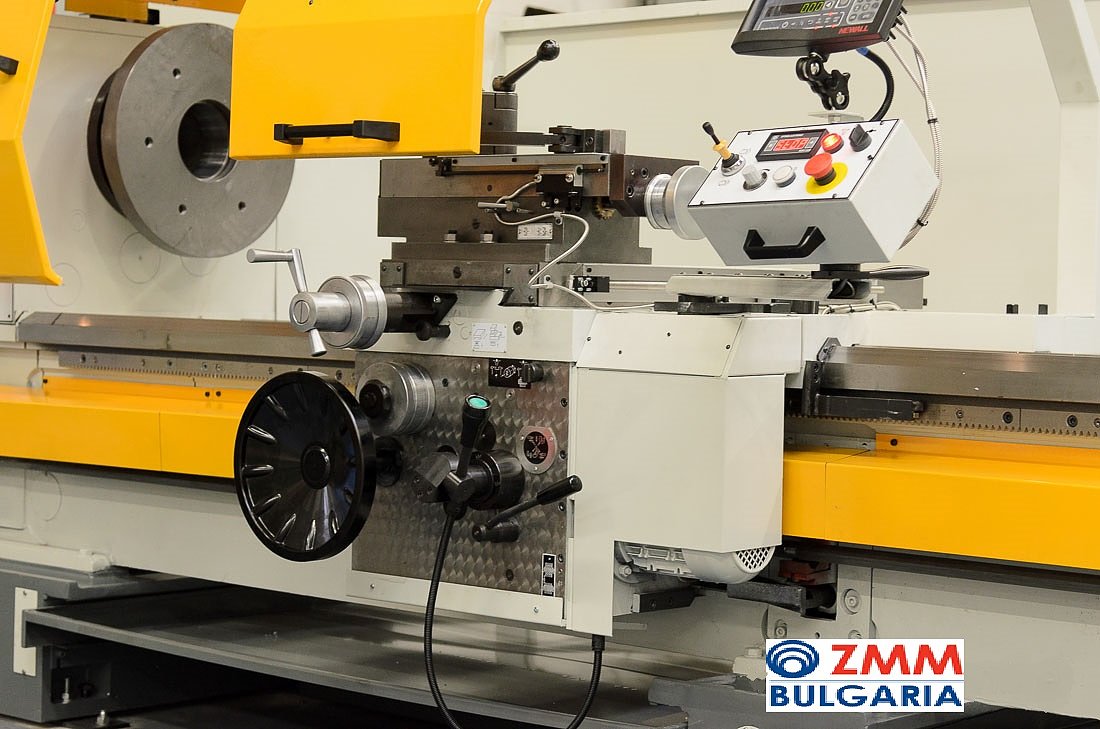

- – Rapid longitudinal and transverse feed
- – BISON 3-jaw and 4-jaw chucks

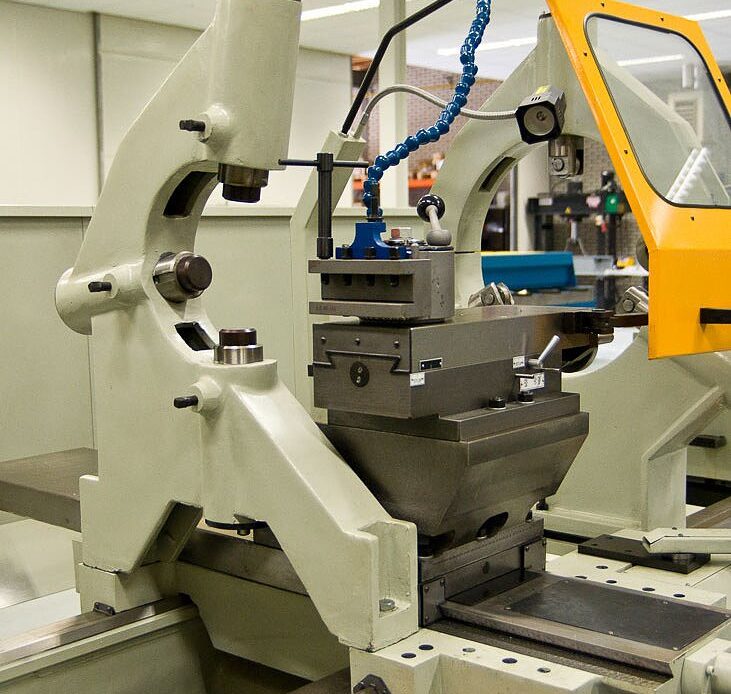

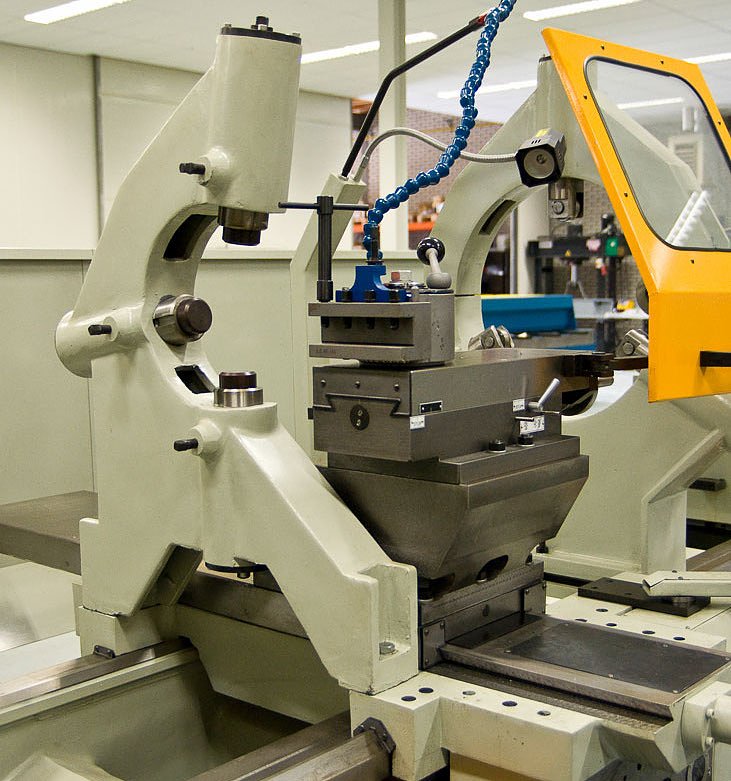

- – Steady rest and follow rest with bearing points
- – Thread counter
- – Work lamp
- – Chip tray and cooling system
- – Full-length splash guard
- – Chuck and tool post protectors
- – Durable and unique leadscrew protector
- – High-performance electrodynamic foot brake
AVAILABLE OPTIONS:

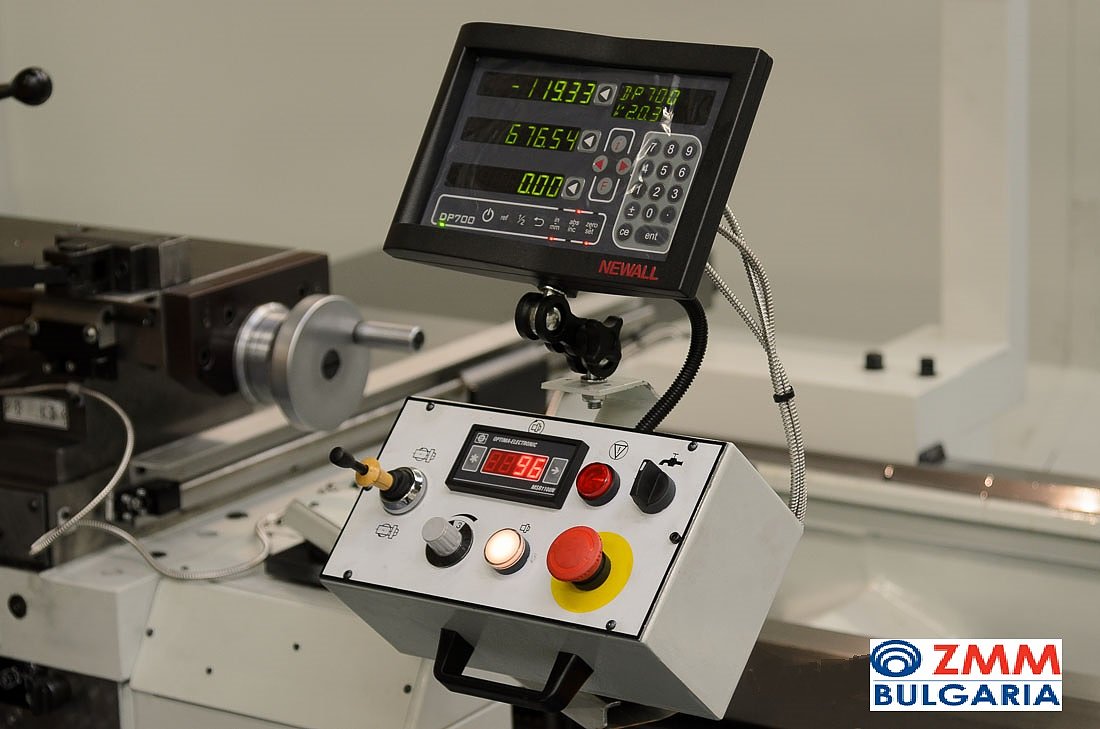

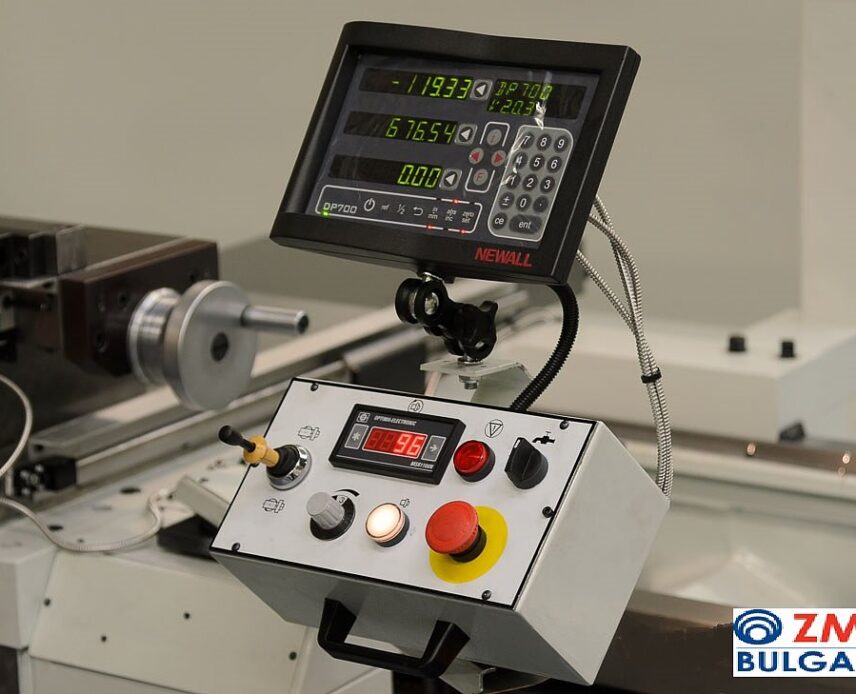

- – Two-axis digital readout (SINO, NEWALL, ACU-RITE, or FAGOR)
- – Taper turning attachment
- – Infinitely variable speed
- – “Constant surface speed” via FAGOR 40i TS
- – ALGRA (Italy) quick-change tool post
- – 30″ faceplate
- – Large steady rest

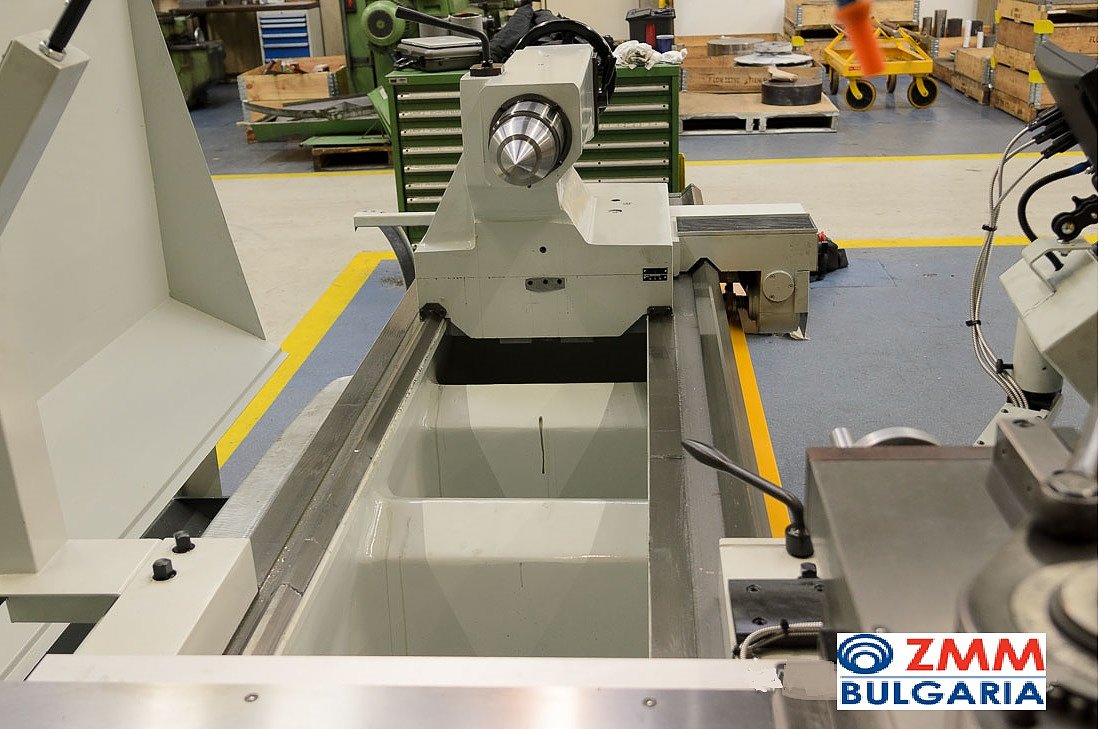

- – Removable gap bed
**MANUFACTURED IN EASTERN EUROPE FOR OVER 60 YEARS**
